Aten Desktop KVMP Switch 4 Port Single Display DisplayPort w/ audio, Cables Included, 2x USB Port

AtenSKU: CS1914-AT-U

Desktop KVM

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$645.00
Contact Us for ETA

Estimate shipping

Description

Overview

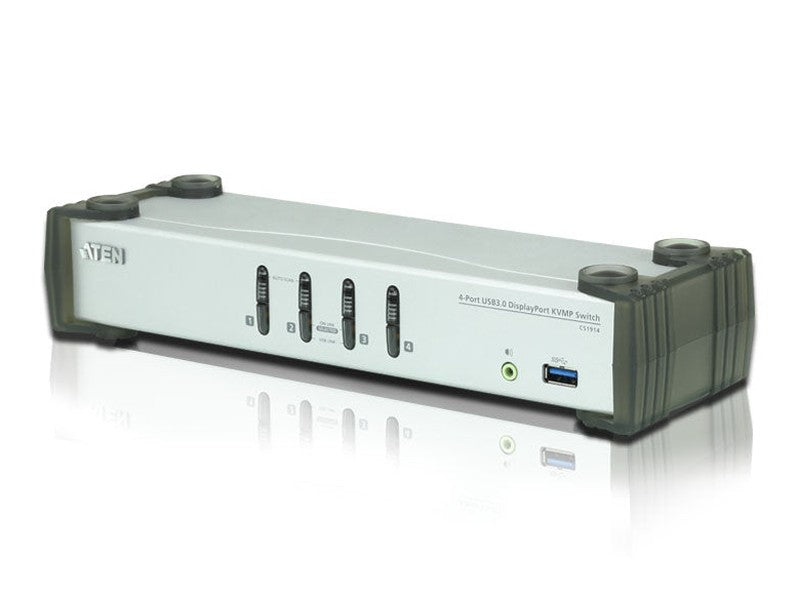

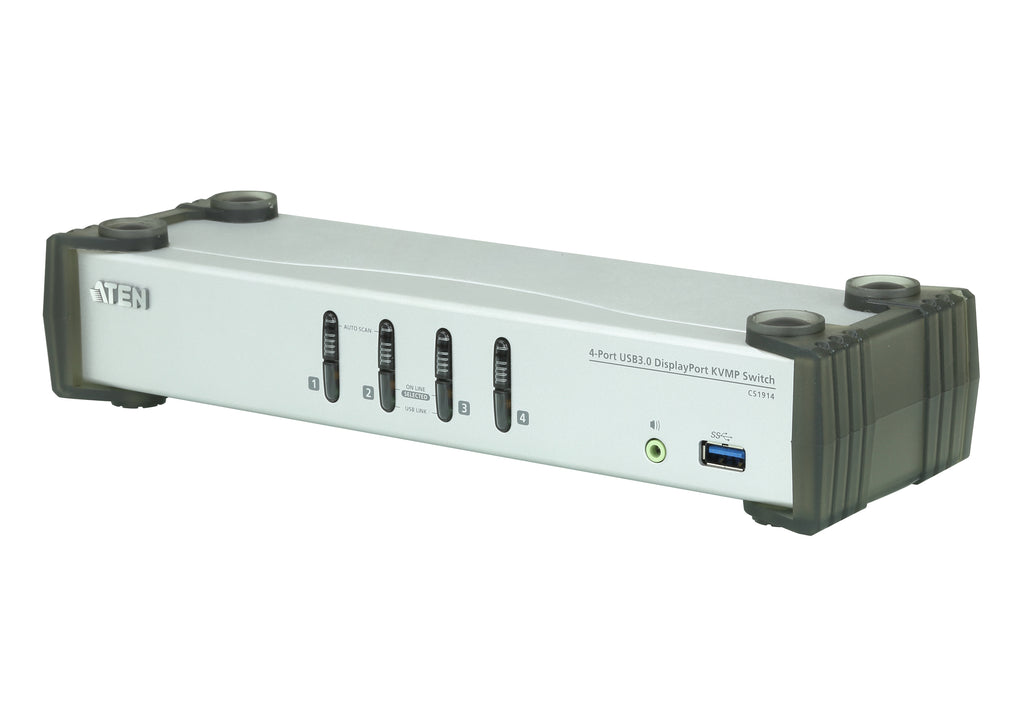

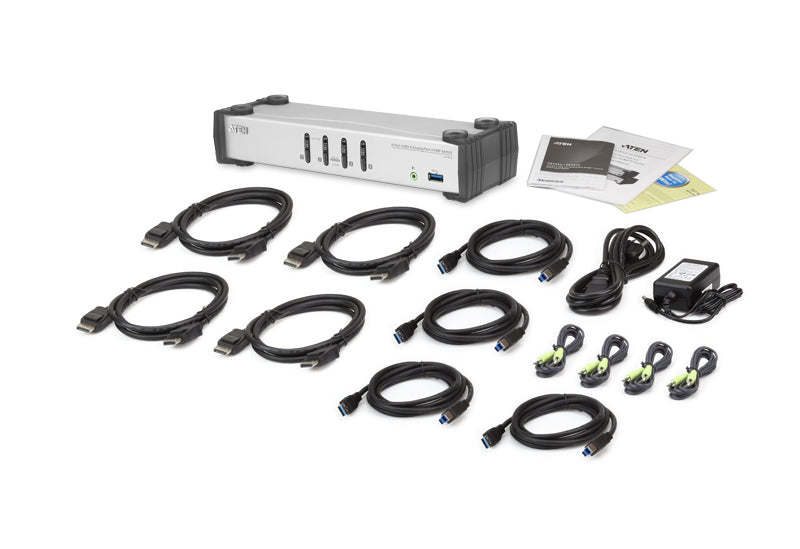

4-Port USB 3.0 DisplayPort KVMP™ Switch (Cables included)

- Supports superior video quality – up to 3840 x 2160 @ 30 Hz

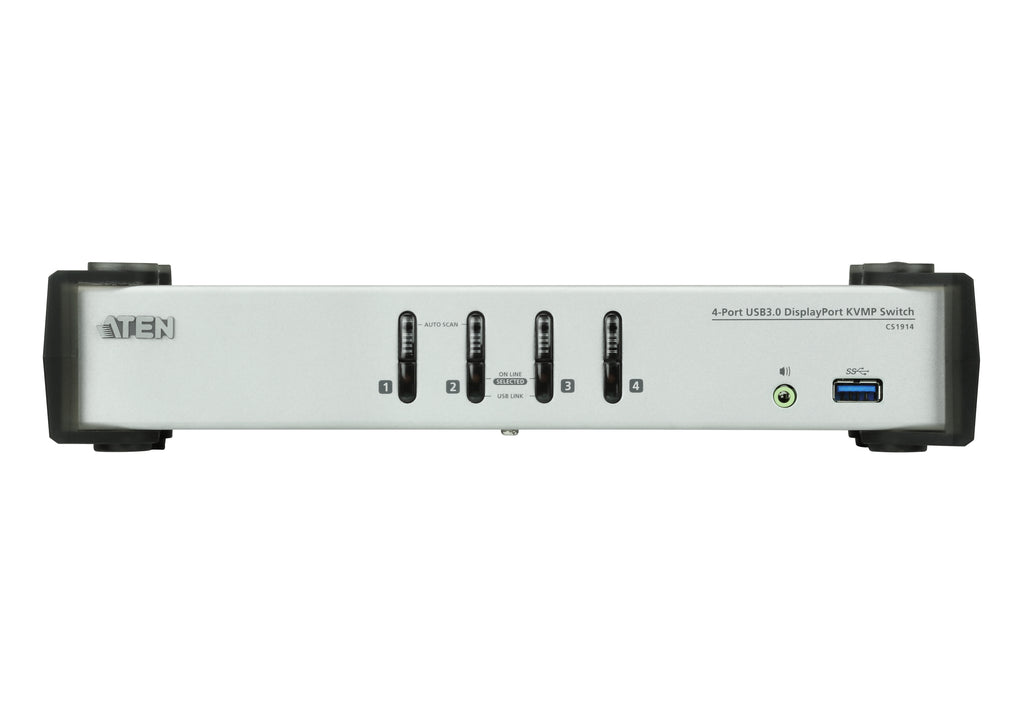

- Computer selection via front panel pushbuttons, hotkeys and mouse
- 2-port USB 3.1 Gen 1 hub with SuperSpeed 5 Gbps transfer rates
- DisplayPort Dual-Mode technology (DP++) supports HDMI and DVI signals via a DisplayPort-to-HDMI/DVI DP++ adapter

The ATEN CS1914 4-Port USB 3.0 DisplayPort KVMP™ Switch provides the latest innovations in desktop KVM switching technology to meet the increasing demand of higher video quality and file transfer rates on modern computers. The CS1914 provides superior resolutions up to 3840 x 2160 @ 30 Hz, a SuperSpeed USB 3.1 Gen 1 hub with 5 Gbps transfer rates and enhanced user-friendly operations.

As a KVM switch, the CS1914 gives users access to four DisplayPort computers from a single USB keyboard, USB mouse and monitor. To work with ease, the CS1914 provides three convenient switching methods – front panel pushbuttons, mouse and hotkeys for flexible and quick access to both computers.

ATEN’s unique independent switching feature allows the KVM control to focus on one computer while the USB peripheral focus is on another computer. This eliminates the need to purchase a separate USB hub or stand-alone peripheral sharer – such as a printer server, modem or splitter.

With its rich feature set, the CS1914 is designed to surpass all requirements for video post production, CAD design and applications that have a high demand for precise video clarity and large data transfer rates. The CS1914 allows you to share the audio from each computer and in HD quality when transmitted by the DisplayPort, to offer you an exciting sound experience.

Product Specifications
General
Computer Connections 4
Port Selection Hotkey, Pushbutton, Mouse
Connectors
Console Ports 2 x USB Type A Female (Black)
1 x DisplayPort Female (Black)
2 x 3.5mm Audio Jack Female (Green; 1 x front, 1 x rear)

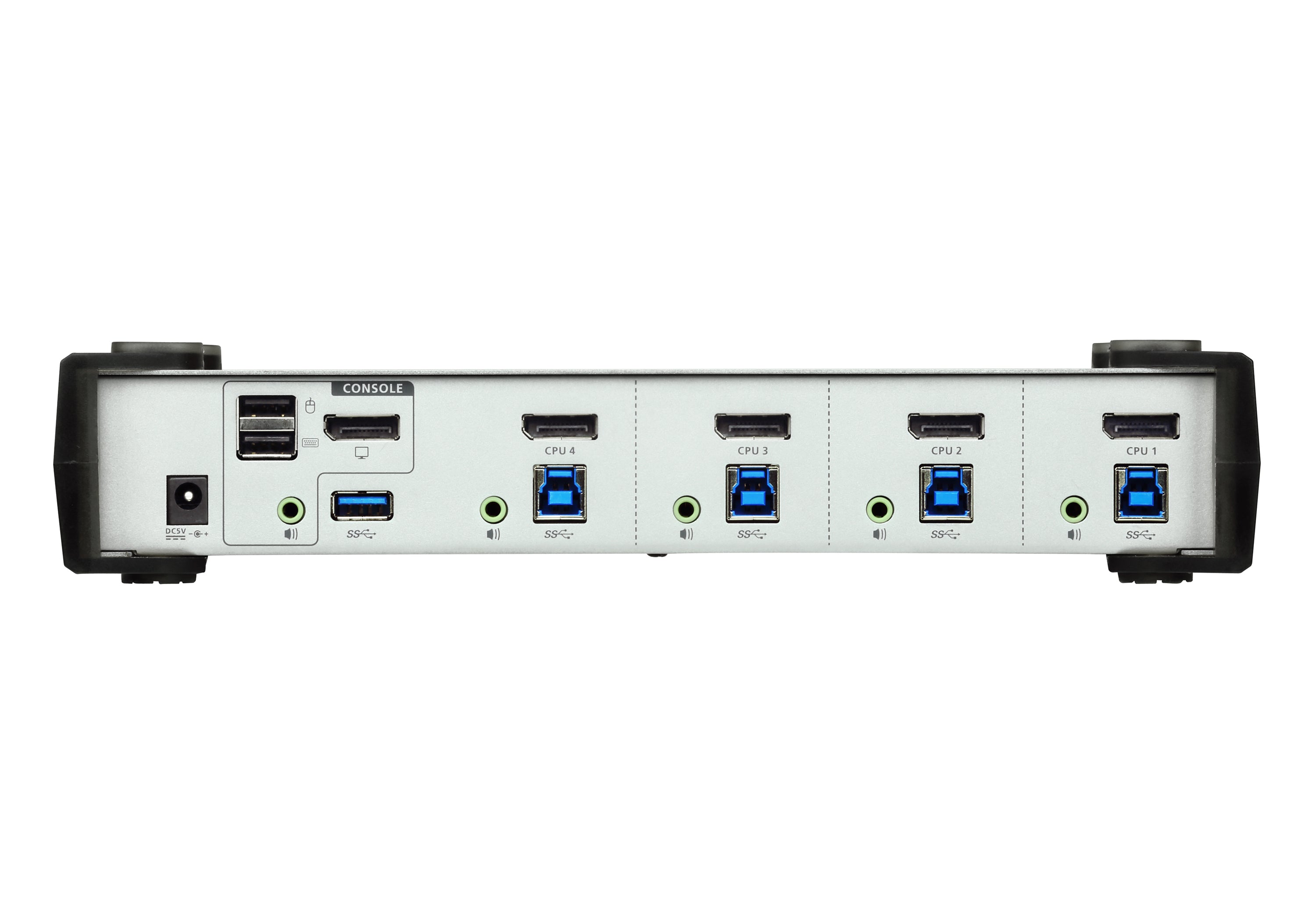

KVM (Computer) Ports 4 x USB3.1 Gen1 Type B Female (Blue)
4 x DisplayPort Female (Black)
4 x 3.5mm Audio Jack Female (Green)
Power 1 x DC Jack
USB Hub 2 x USB3.1 Gen1 Type A Female (Blue; 1 x front panel; 1 x rear panel)
Switches
Selected 4 x Pushbutton
LEDs
On Line / Selected 4 (Orange)
USB Link 4 (Green)
Emulation
Keyboard / Mouse USB
Video 3840 x 2160 @ 30Hz
Scan Interval 1–99 Seconds (Default: 5 sec.)
Power Consumption DC5V: 2.99W; 57 BTU/h
Note
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
Environmental
Operating Temperature 0–50°C
Storage Temperature -20–60°C
Humidity 0–80% RH, Non-condensing
Physical Properties
Housing Metal, Plastic
Weight 0.91 kg (2 lb)
Dimensions (L x W x H) 27.00 x 8.80 x 5.55 cm
(10.63 x 3.46 x 2.19 in.)
Note
For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
