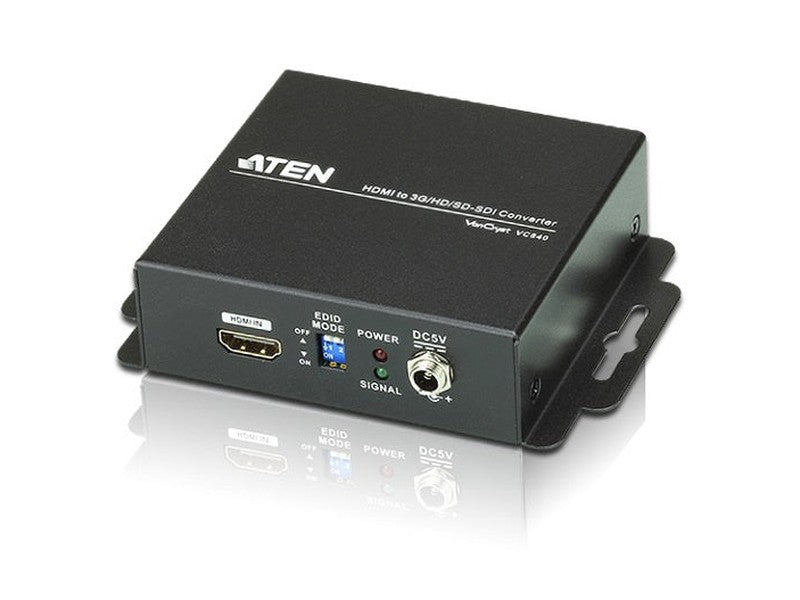

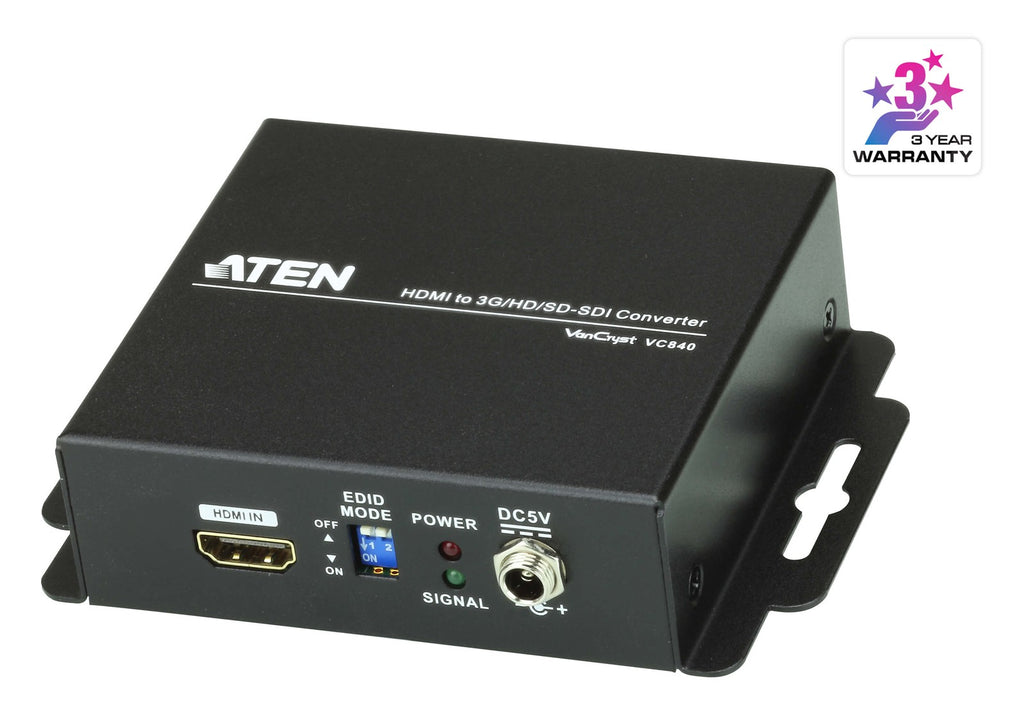

Aten Professional Converter HDMI to 3G/HD/SD-SDI Converter

AtenSKU: VC840-AT-U

Video Splitter

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$433.00
Contact Us for ETA

Estimate shipping

Description

Overview

HDMI to 3G-SDI/Audio Converter

- Converts an HDMI input signal to 3G/HD/SD-SDI formats in real time while avoiding transformation loss for both audio and video signals
- Supports additional analog stereo audio and coaxial digital audio
- Offers 2 low-jitter SDI outputs for dual display
- Selectable EDID settings and EDID learning mode

The VC840 HDMI to 3G/HD/SD SDI Converter provides a professional way to exchange high definition signals in real time. The SDI and HDMI signal conversion is 100% digital and guarantees no loss of quality for both the audio and video transmission. The VC840 provides 2 low jitter SDI outputs for dual display. The VC840 is the most dependable way to convert signals with confidence when monitoring in any post or broadcast application.

Product Specifications

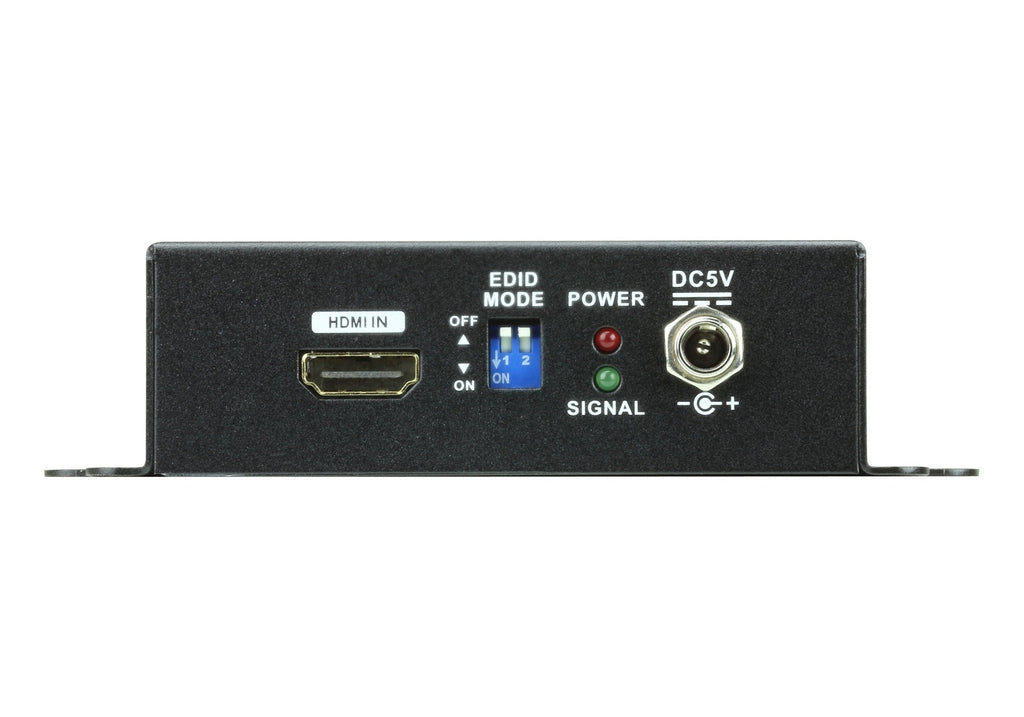

Video Input
Interfaces 1 x HDMI Type A Female (Black)
Impedance 100 Ω
Max. Distance 3m at 1920×1080@60Hz (4:4:4)

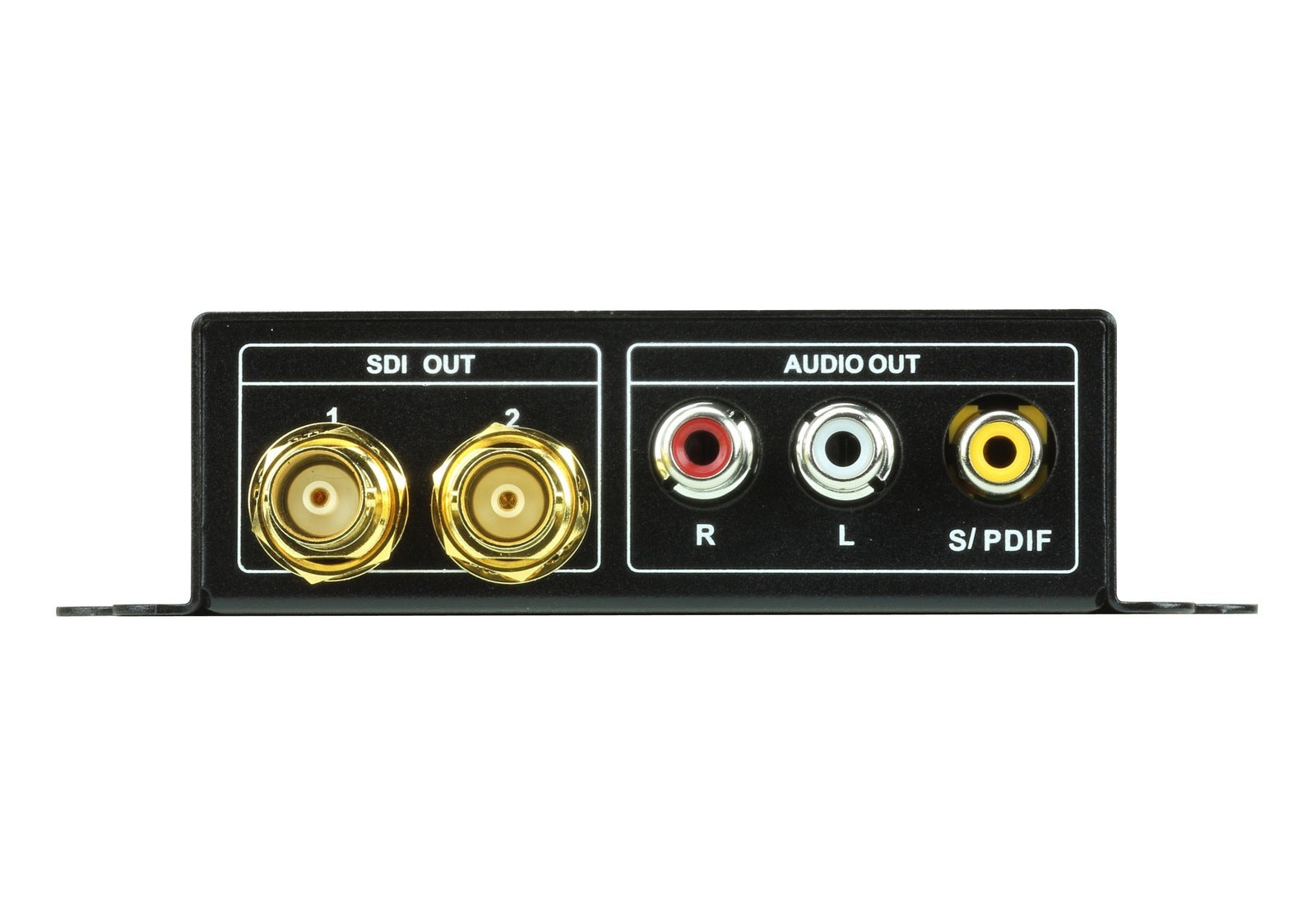

Video Output
Interfaces 2 x BNC (Gold)
Impedance 75 Ω
Video
Max. Data Rate 2.97 Gbps
Max. Pixel Clock 148.5 MHz
Supported Resolutions NTSC@59.96Hz, PAL@50Hz
720p@50/59.94/60Hz
1080i@50/59.94/60Hz
1080p@23.97/24/25/29.97/30/50/59.94/60Hz
Max. Distance 90m (3G-SDI)
150m (HD-SDI)
300m (SD-SDI)
Audio
Output Analog: 2 x RCA (Red/White)
Digital: 1 x RCA (Yellow)
SDI Formats
Supported Standards SD-SDI (SMPTE 259M, up to 270 Mbps)
HD-SDI (SMPTE 292M, 296M, up to 1.485 Gbps)
3G-SDI (SMPTE 424M, 425M level A, up to 2.97 Gbps)
EDID Settings
Mode EDID Mode: Learn
Connectors
Power 1 x DC Jack
Power Consumption DC5V: 3.225W; 15 BTU/h
Note
● The measurement in Watts indicates the typical power consumption of the device with no external loading.
● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded.
● For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format.
Environmental
Operating Temperature 0–40 ºC
Storage Temperature –20–60 ºC
Humidity 20–90% RH, Non-Condensing
Physical Properties
Housing Metal
Weight 0.29 kg (0.64 lb)
Dimensions (L x W x H) 12.20 x 10.70 x 3.04 cm
(4.8 x 4.21 x 1.2 in.)
Carton Lot 5 pcs
