Overview

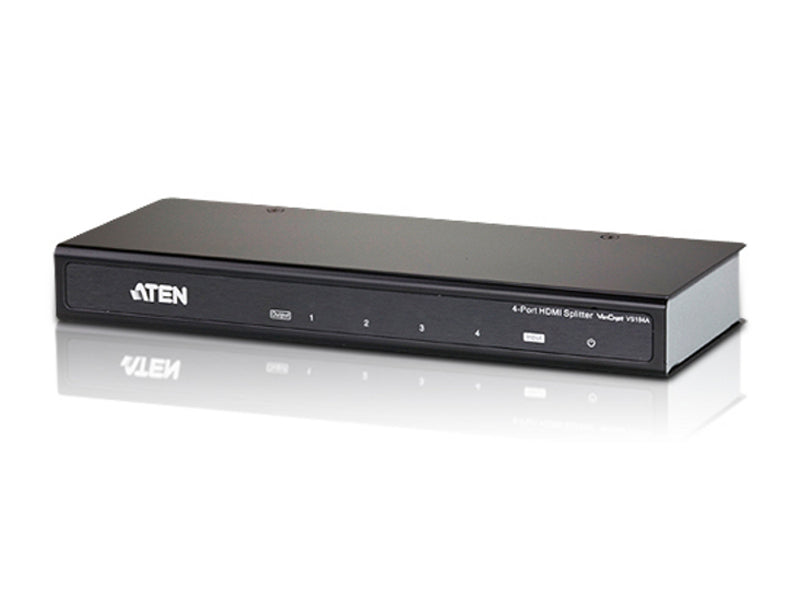

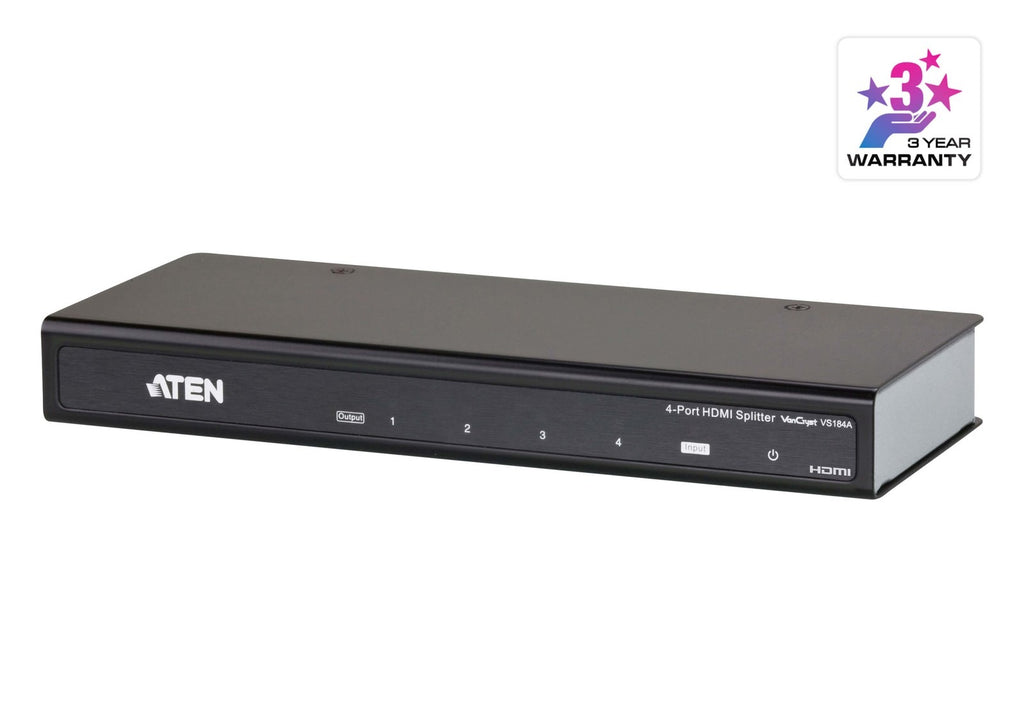

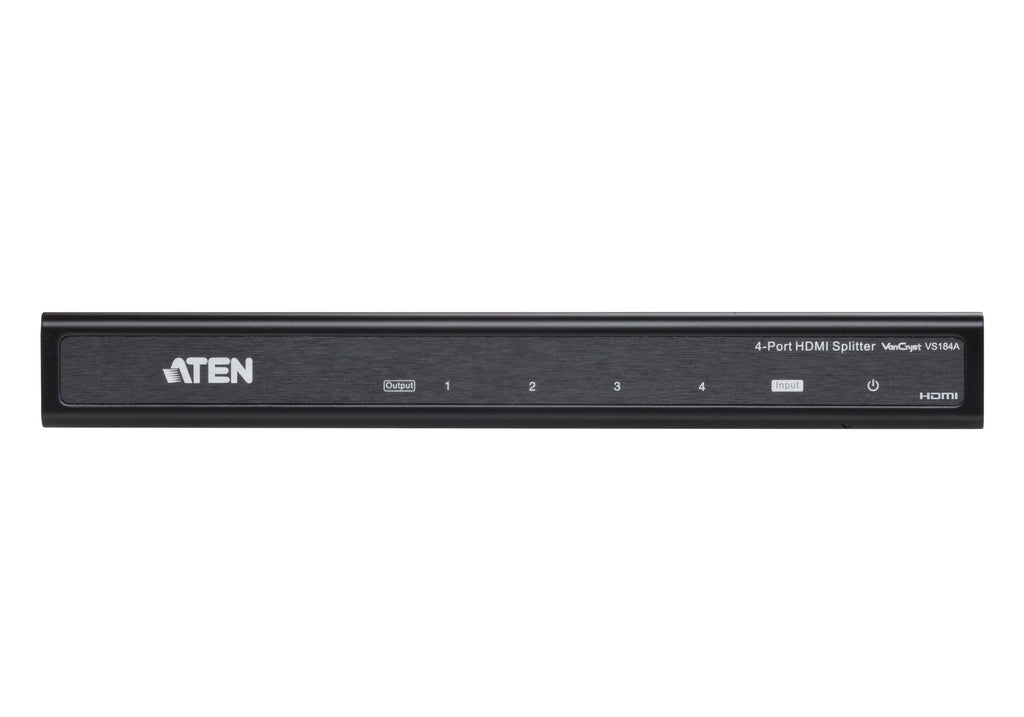

4-Port 4K HDMI Splitter
- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP Compatible
- Long distance transmission – up to 15 m (24 AWG)
- Supports max. data rate of 10.2 Gbps
The VS184A is a 4-Port HDMI video splitter that delivers up to 4K@30 resolution from a single HDMI source to four HDMI displays simultaneously, ensuring reliable content sharing in home entertainment, educational, and commercial setups such as studios, offices, classrooms, retail stores, and more.
One Source, 4-Way Video Distribution
The splitter accepts input from an HDMI device – such as a PC, laptop, media player, and more – and streams the AV content to up to four HDMI-enabled displays, making it suitable for both consumer and professional applications.
Flexible Long-Distance Cabling
The VS184A allows flexible cabling, with connections up to 3 meters (using 2L-7D03H) to an HDMI source and up to 15 meters (using 2L-7D15H) to each HDMI display, delivering data rates of up to 10.2 Gbps.
Applications
The video splitter is ideal for applications that require seamless distribution of pristine audiovisual content across multiple displays, ensuring a stunning viewing experience in any AV setup.
4-Port 4K HDMI Splitter
- Connects one HDMI source to four HDMI displays at the same time
- HDMI (3D, Deep Color, 4K); HDCP Compatible
- Long distance transmission – up to 15 m (24 AWG)
- Supports max. data rate of 10.2 Gbps
The VS184A is a 4-Port HDMI video splitter that delivers up to 4K@30 resolution from a single HDMI source to four HDMI displays simultaneously, ensuring reliable content sharing in home entertainment, educational, and commercial setups such as studios, offices, classrooms, retail stores, and more.
One Source, 4-Way Video Distribution
The splitter accepts input from an HDMI device – such as a PC, laptop, media player, and more – and streams the AV content to up to four HDMI-enabled displays, making it suitable for both consumer and professional applications.
Flexible Long-Distance Cabling
The VS184A allows flexible cabling, with connections up to 3 meters (using 2L-7D03H) to an HDMI source and up to 15 meters (using 2L-7D15H) to each HDMI display, delivering data rates of up to 10.2 Gbps.
Applications
The video splitter is ideal for applications that require seamless distribution of pristine audiovisual content across multiple displays, ensuring a stunning viewing experience in any AV setup.

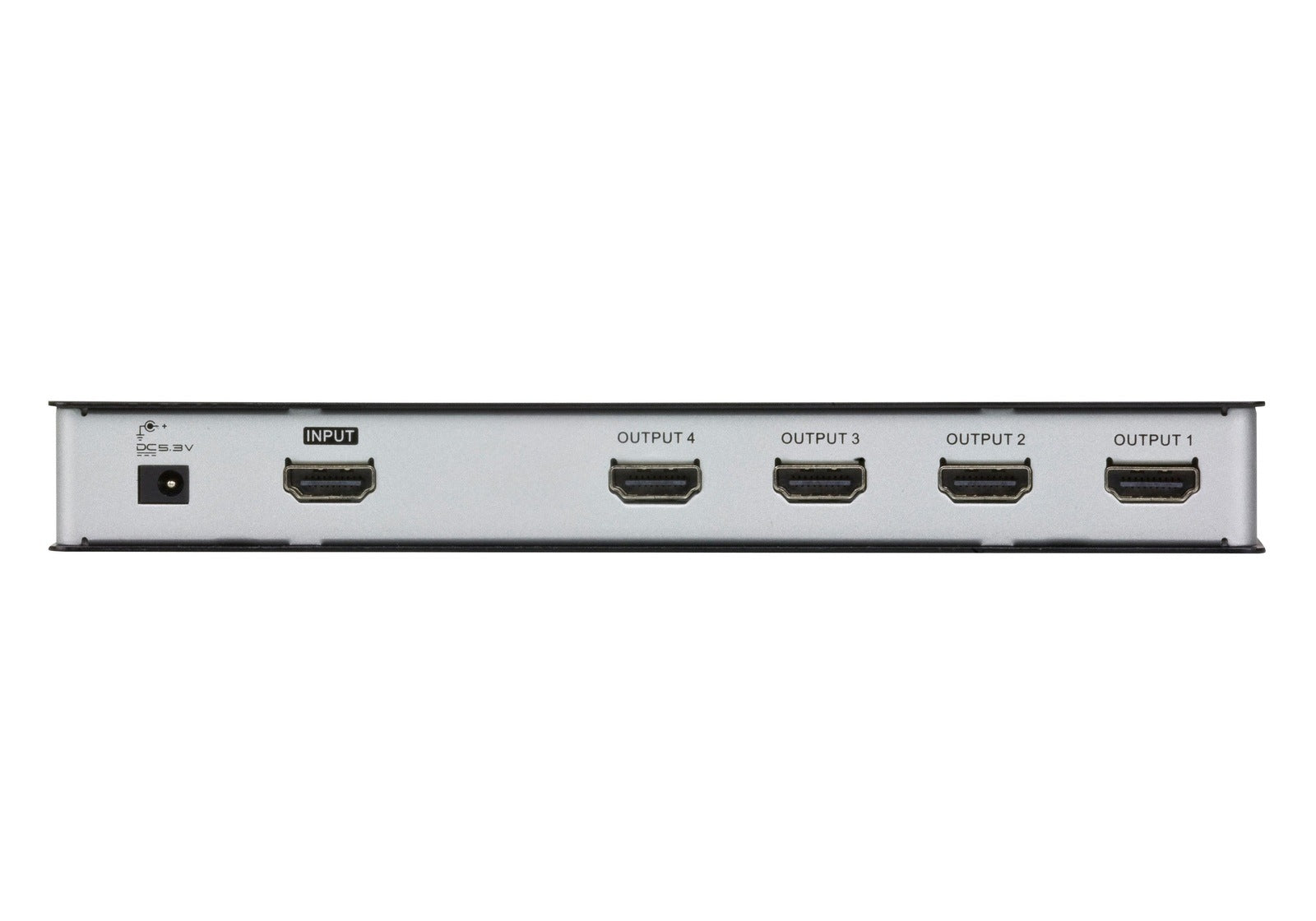

| Product Specifications | |
|---|---|
| Video Input | |
| Interfaces | 1 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 3m @3840x2160@30Hz (4:4:4) |
| Video Output | |
| Interfaces | 4 x HDMI Type A Female (Black) |
| Impedance | 100 Ω |
| Max. Distance | 15m @3840x2160@30Hz (4:4:4) |
| Video | |
| Max. Data Rate | 10.2 Gbps (3.4 Gbps Per Lane) |
| Max. Pixel Clock | 340 MHz |
| Compliance | HDMI (3D, Deep Color, 4K); HDCP Compatible |
| Max. Resolution | Up to 4096 x 2160 / 3840 x 2160 @ 60Hz (4:2:0) 4096 x 2160 / 3840 x 2160 @ 30Hz (4:4:4) |
| Audio | |
| Input | 1 x HDMI Type A Female (Black) |
| Output | 4 x HDMI Type A Female (Black) |
| Connectors | |
| Power | 1 x DC Jack |
| Power Consumption | DC5.3V: 6.02W; 28 BTU/h |
| Note | |
| ● The measurement in Watts indicates the typical power consumption of the device with no external loading. ● The measurement in BTU/h indicates the power consumption of the device when it is fully loaded. ● For some rack mount products, please note that the standard physical dimensions of WxDxH are expressed using a LxWxH format. |
|
| Environmental | |
| Operating Temperature | 0–50 °C |
| Storage Temperature | –20–60 °C |
| Humidity | 0–80% RH, Non-Condensing |
| Physical Properties | |
| Housing | Metal |
| Weight | 0.47 kg (1.04 lb) |
| Dimensions (L x W x H) | 20.00 x 8.00 x 2.50 cm (7.87 x 3.15 x 0.98 in.) |
| Carton Lot | 20 pcs |
