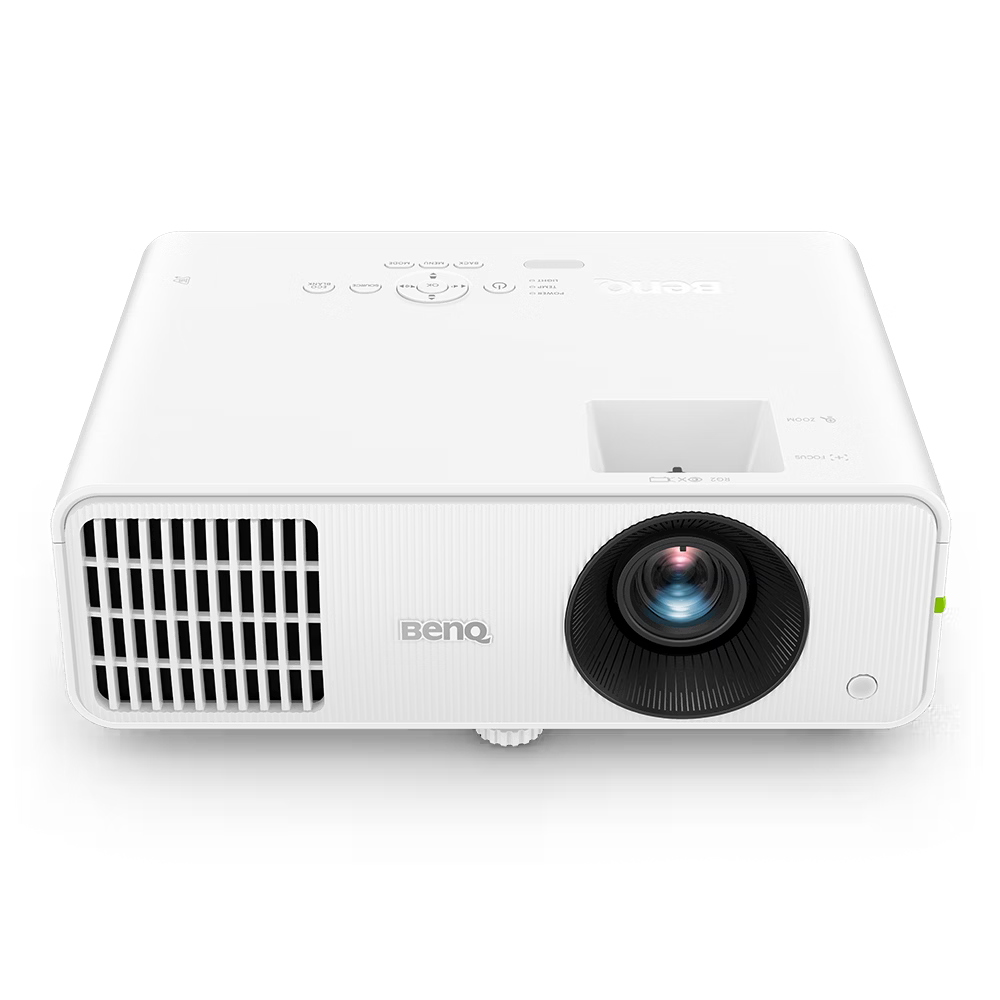

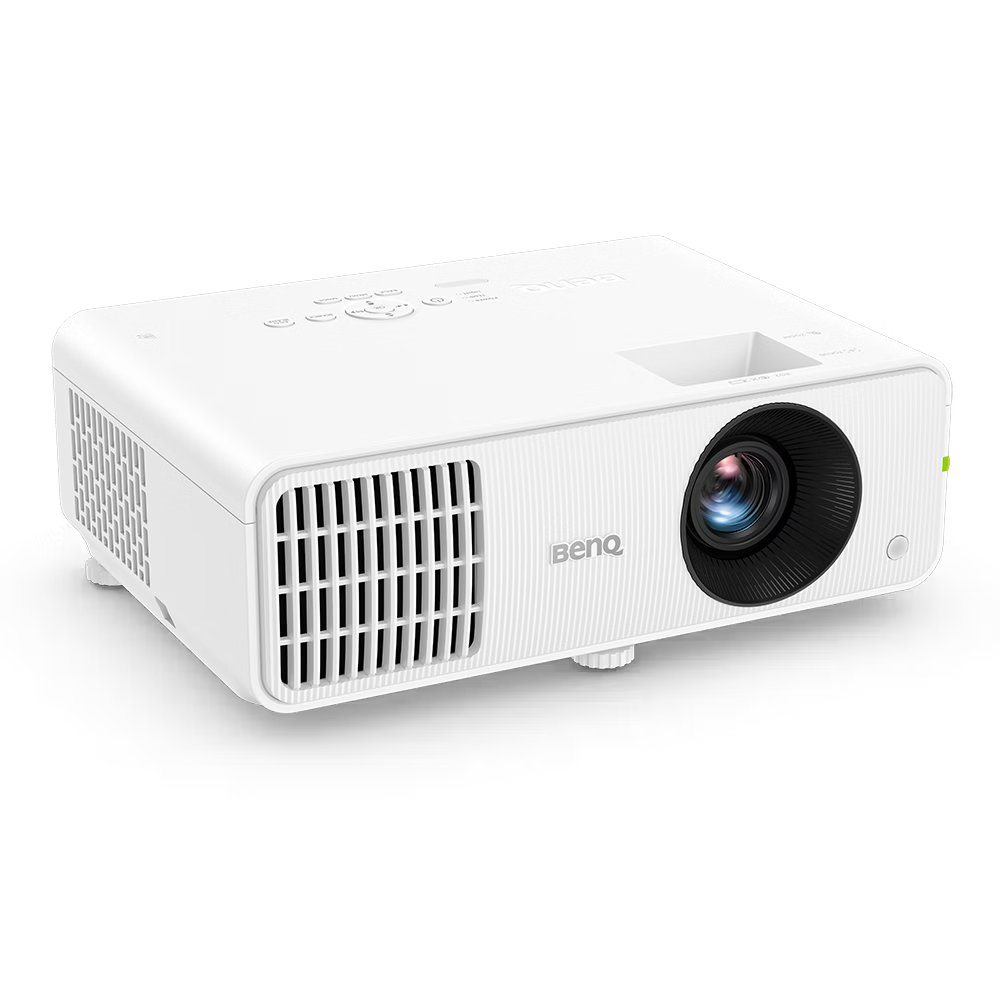

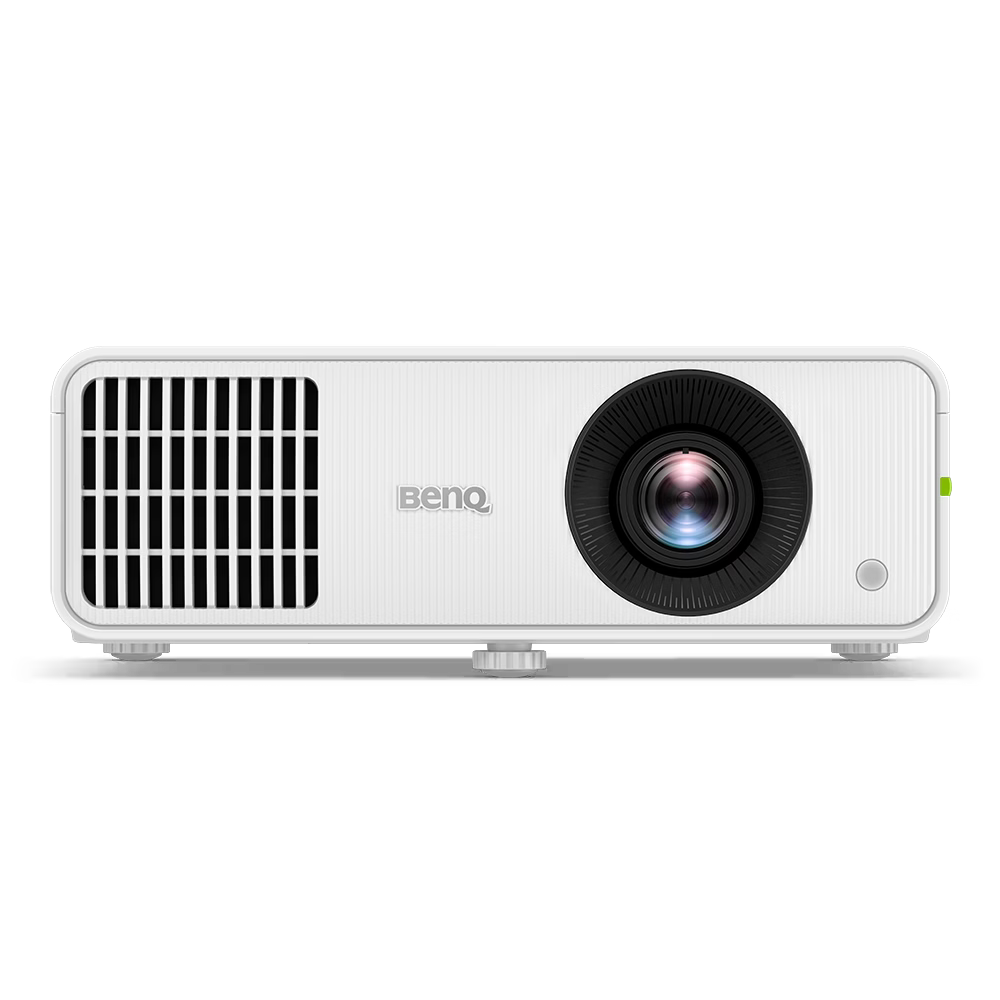

EH700 4000lms 1080P Laser Smart Projector
- SmartEco: SmartEco mode out-of-the-box
- Android 9 Built-in
- Wireless Mirroring
Specifications
EH700 4000lms 1080P Laser Smart Projector
- SmartEco: SmartEco mode out-of-the-box
- Android 9 Built-in
- Wireless Mirroring
Specifications
| Projector Specifications | |
|---|---|
| Brightness (ANSI lumens) | 4000 |
| Resolution | 1080P (1920×1080) |
| Aspect Ratio | 16:9 |
| Contrast Ratio (FOFO) | 3,000,000:1 |
| Display Color | 30-bit (1.07 billion colors) |
| Type | Laser |
| Life | Normal: 20000 hrs, ECO: 30000 hrs, SmartEco: 20000 hrs |
| Throw Ratio | 1.15 ~ 1.5 |
| Zoom Ratio | 1.3x |
| Lens | F/2.59 ~ 2.87, f = 16.88~21.88 mm |
| Projection Offset | 105.5% |
| Keystone Adjustment | 2D Auto Vertical ±40°, Horizontal ±40° |
| Rec. 709 Coverage | 92% |
| Picture Modes | 3D, Bright, HDR10, HLG, Presentation, Spreadsheet, sRGB, User 1, User 2, Video Conference |
| Input Lag | 8.3 ms (1080P 120Hz) |
| Resolution Support | VGA to 4K UHD (3840×2160) |
| Horizontal Frequency | 15K~135KHz |
| Vertical Scan Rate | 23~120Hz |
| HDMI In | 2 × HDMI 2.0b (HDCP2.2) |
| LAN (RJ45) | 1 |
| USB Type A | 5 ports: 1.5A Reader, 0.9A ×2 Reader, Wireless Dongle, 0.9A Service |
| USB Type C | 1 × DisplayPort Alt Mode/Reader |
| RS232 (DB-9pin) | 1 |
| Speaker | 1 × 10W |
| Audio Out | 3.5mm Mini Jack |
| Operating Temperature | 0~40℃ |
| Power Supply | AC 100 to 240 V, 50/60 Hz |
| Power Consumption | 200W @100VAC |
| Stand-by Power | <0.5W |
| Network Stand-by | <2W |
| Acoustic Noise (Typ./Eco) | 34/28 dB |
| Wireless Dongle | EZC-5201BS 1080p (Standard) |
| Carry Bag | Optional |
| Remote Control | RCI024 |
| Power Cord | 1 × 1.8M |
| Quick Start Guide | 1 × 21L |
| Warranty Card | Yes |
| Ceiling Mount | CM00G3 (Optional) |
| Launcher | Smart Education |
| Built-in OS | Android 9.0 |
| Bluetooth | Bluetooth 4.0 |
| Wi-Fi | 802.11 a/b/g/n/ac (2.4G/5G) |
| Wireless Projection | AirPlay, Google Cast, Miracast |
| Dimensions (mm) | 304 × 112 × 241 |
| Net Weight (kg) | 3.0 ± 0.1 |
| Dimensions (inch) | 11.9 × 4.42 × 9.49 |
| Net Weight (lb) | 6.6 ± 0.2 |
| Projection System | DLP |
