Description

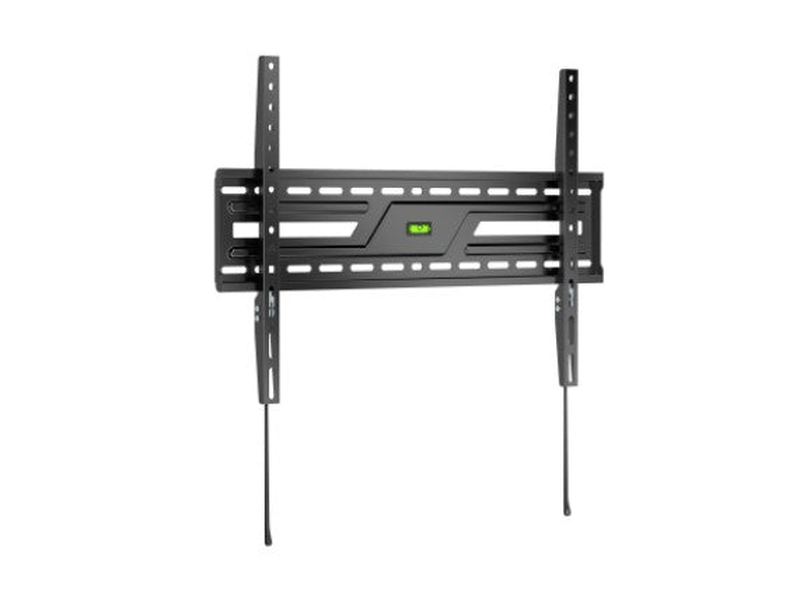

Brateck KL38-46F Large-Screen Medium Fixed TV Wall Mount Fit Screen Size: 37"-86" Up to 75kg, Fit Curved TV, 24x638x425mm
Features
-
Heavy-Duty Steel Construction – Provides extra strength and durability
-
Open Architecture – Enhances ventilation and allows easier access to wires
-
Slim Design – Offers a low profile for a sleek appearance
-
Automatic Spring Locks with Quick Release Cords – Make TV removal quick and easy
-
Integrated Bubble Level – Ensures proper alignment during installation
Specifications
| Product Category | Fixed TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 1.5mm (0.059″) cold-rolled sheet Wall Plate: 1.5mm (0.059″) cold-rolled sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions (W×L×H) | 24×638×425mm (0.94″×25.1″×16.7″) |
| Fit Screen Size | 37″–86″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50, 75×75, 100×100, 100×200, 200×100, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 |
| Max. Mounting Hole | 610×402mm |
| Weight Capacity | 75kg (165lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 24mm (0.94″) |
| Installation | Solid Wall, Double Stud (406mm / 450mm / 600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Built-in Bubble Level (Integrated on Wall Plate/VESA Panel) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Silk Screen | Can be silkscreen printed |
