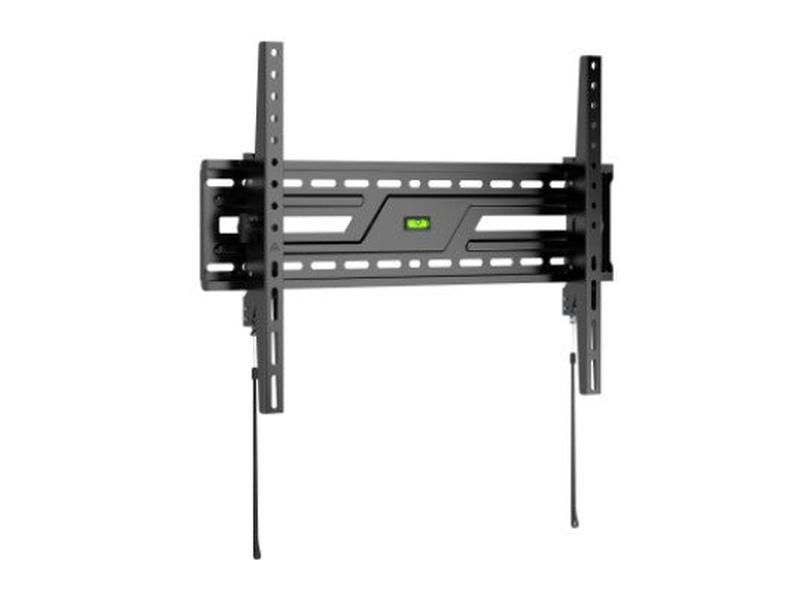

Brateck KL38-46T Large-Screen Medium Tilt TV Wall Mount, Fit Screen Size: 37"-86" Up to 75kg, Fit Curved TV, 50x638x425mm (new)
Features
-
Heavy-Duty Steel Construction – Provides extra strength and durability
-
Open Architecture – Enhances ventilation and allows easier access to wires
-
Easy-Grip Knobs – Allow quick tilt adjustment and secure locking
-
Automatic Spring Locks with Quick Release Cords – Make TV removal quick and easy
-
Integrated Bubble Level – Ensures accurate alignment during installation
Specifications
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 1.5mm (0.059″) Cold-Rolled Sheet Wall Plate: 1.5mm (0.059″) Cold-Rolled Sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions (WxDxH) | 50×638×425mm (2″×25.1″×16.7″) |
| Fit Screen Size | 37″–86″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 75×75, 100×100, 100×200, 200×100, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 600×400 |
| Max. Mounting Hole | 608×402mm |
| Weight Capacity | 75kg (165lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 50mm (2″) |
| Tilt Range | +5° ~ -10° |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Double Stud (406mm / 450mm / 600mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Built-in (Integrated on Wall Plate/VESA Panel) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Silk Screen | Can be silkscreen printed |
