Description

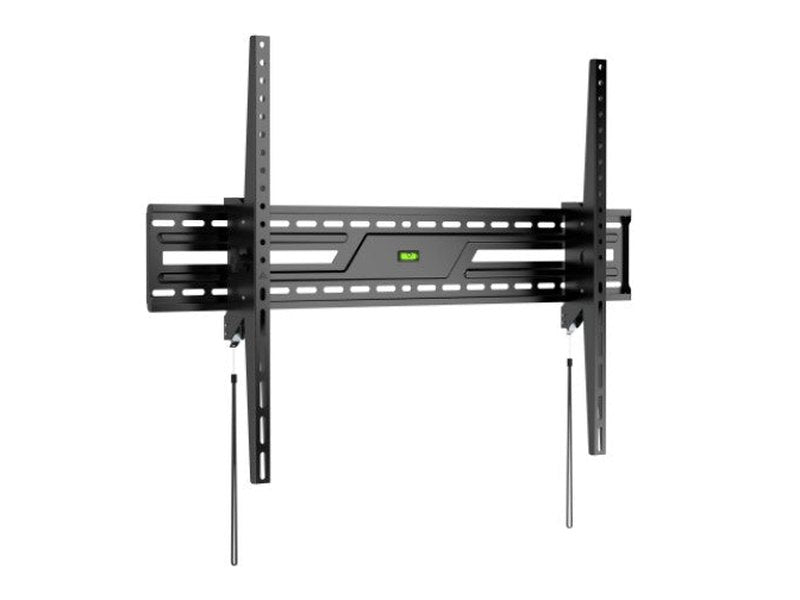

Brateck KL38-69T Large-Screen Large Tilt TV Wall Mount, Fit Screen Size: 43"-100" Up to 75 KG, Fine Texture Black, 85x938x625mm (new)
Brateck KL38-69T Large-Screen Large Tilt TV Wall Mount (new)
Features
-
Heavy-Duty Steel Construction – Provides extra strength and durability
-
Open Architecture – Offers increased ventilation and easier access to wires
-
Easy-Grip Knobs – Allow for quick tilt and secure locking
-
Automatic Spring Locks with Quick Release Cords – Enable quick and easy TV removal
-
Integrated Bubble Level – Ensures precise alignment
Specifications
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 1.5mm (0.059″) cold-rolled sheet Wall Plate: 1.5mm (0.059″) cold-rolled sheet |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |

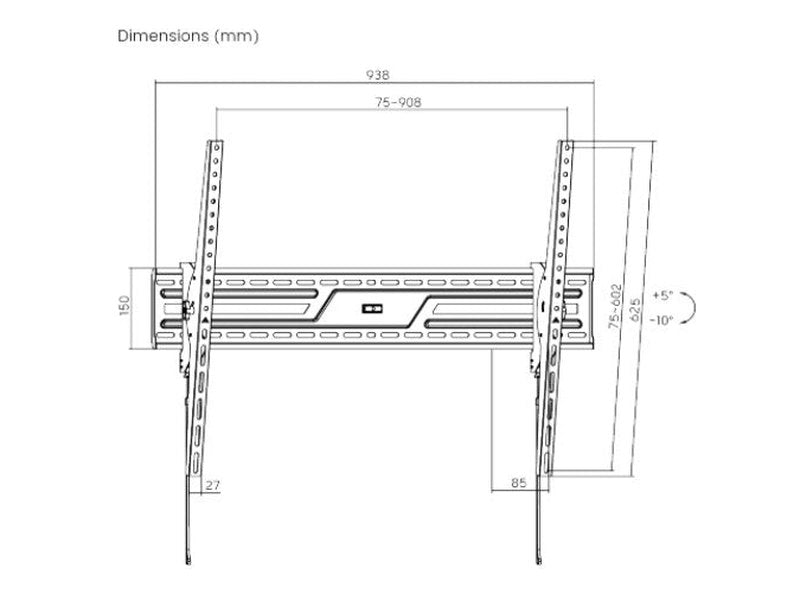

| Dimensions | 85 x 938 x 625 mm (3.3″ x 36.9″ x 24.6″) |
| Fit Screen Size | 43″ – 100″ |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 75×75, 100×100, 100×200, 200×100, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 500×300, 400×400, 600×300, 500×400, 400×600, 600×400, 700×400, 800×400, 850×400, 600×600, 800×500, 800×600, 900×600 |
| Max. Mounting Hole | 908 x 602 mm |
| Weight Capacity | 75 kg (165 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 85 mm (3.3″) |
| Tilt Range | +5° ~ -10° |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Double Stud (406 mm / 600 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| AV Component Shelf | No |
| Direction Indicator | Yes |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Built-in Bubble Level (Integrated on Wall Plate/VESA Panel) |
| Accessory Kit Package | Normal/Ziplock Polybag, Compartment Polybag |
| Silk Screen | Can be silkscreen printed |
