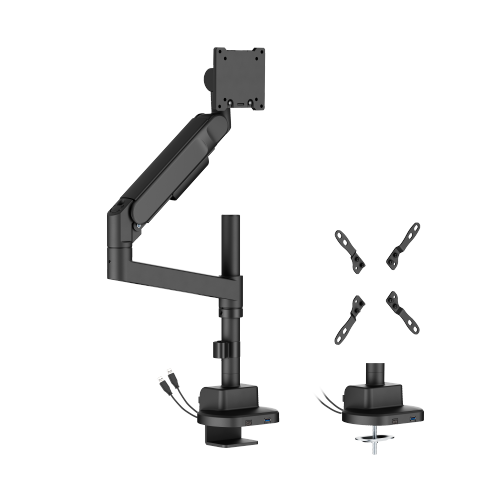

Brateck LDT92-C012UCP-B Future-Proof Heavy-Duty Pole-Mounted Gas Spring Monitor Arm with USB-A/USB-C Ports (new)
FEATURES
●Detachable VESA Plate Design: enables easy installation
●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●Include VESA Adapters: fit monitors with different VESA patterns
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●180° Rotation Stop: prevents monitor arm from swinging into screens or walls
●Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices
Brateck LDT92-C012UCP-B Future-Proof Heavy-Duty Pole-Mounted Gas Spring Monitor Arm with USB-A/USB-C Ports (new)
FEATURES
●Detachable VESA Plate Design: enables easy installation
●Built-in Spring Tension Mechanism: for perfect weight adjustments
●Installs from Top Side: installs entirely from above the desk surface
●Include VESA Adapters: fit monitors with different VESA patterns
●Optimized Tilting Structure: provides excellent weight-bearing capacity and smoother adjustment for large screens
●180° Rotation Stop: prevents monitor arm from swinging into screens or walls
●Smart Base with USB-A & USB-C Ports: snap-off plates on the base provide data throughput or to charge devices
| Standard Gas Spring Monitor Arm – Technical Specifications | |
|---|---|
| Product Category | Gas Spring Monitor Arm |
| Rank | Standard |
| Material | Steel, Aluminum, Plastic |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 156 × 600 × 815 mm (6.1" × 23.6" × 32.1") |
| Fit Screen Size | 24"–57" |
| Fit Curved Monitor | Yes |
| Screen Quantity | 1 |
| Weight Capacity (per screen) | 2~27 kg (4.4~59.4 lbs) |
| Weight Capacity for Curved Screen | 2~22 kg (4.4~48.4 lbs) |
| VESA Compatible | 75×75, 100×100, 100×200, 200×100, 200×200 |
| Tilt Range | +60° ~ -20° |
| Swivel Range | +90° ~ -90° |
| Screen Rotation | +90° ~ -90° |
| Arm Full Extension | 550 mm (21.7") |
| Pole Height | 385 mm (15.2") |
| Installation | Clamp, Grommet |
| Suggested Desktop Thickness | Clamp: 10~50 mm (0.39"~2") Grommet: 10~50 mm (0.39"~2") |
| Quick Release VESA Plate | Yes |
| USB Port | 1 × USB 3.0, 1 × Type-C |
| Cable Management | Yes |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
