Description
Overview

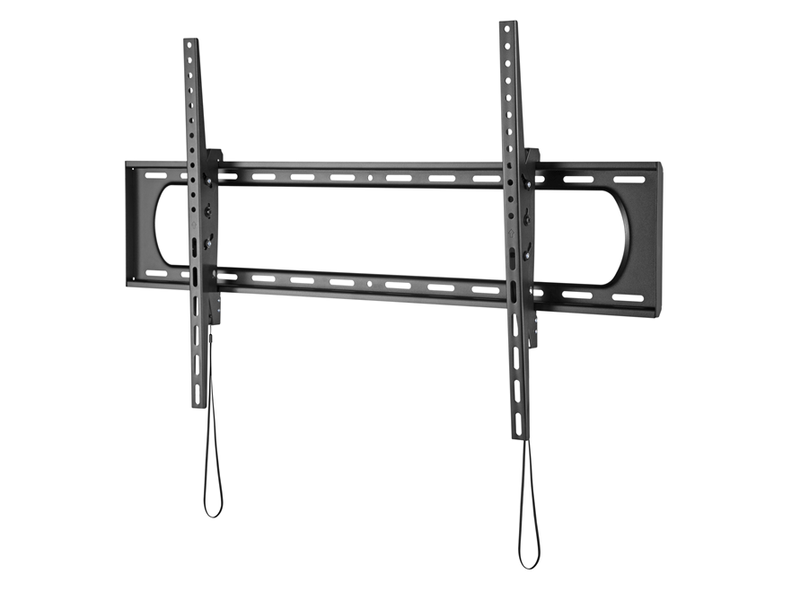

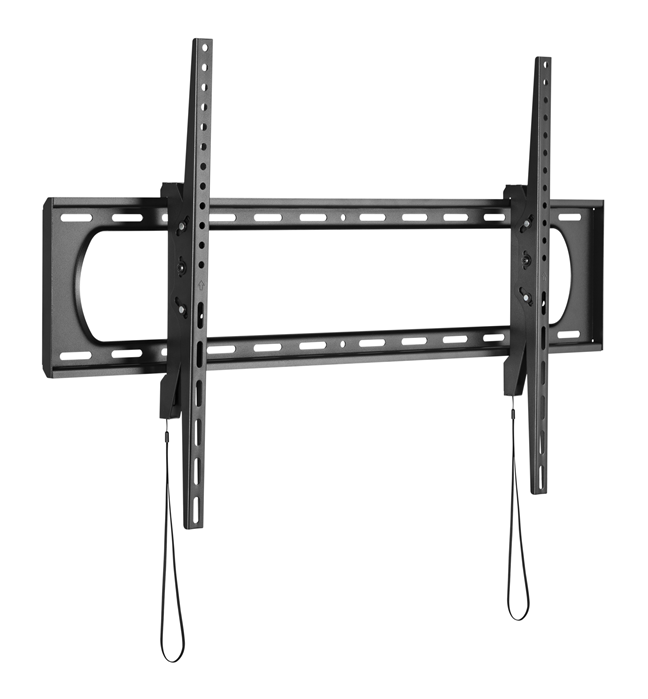

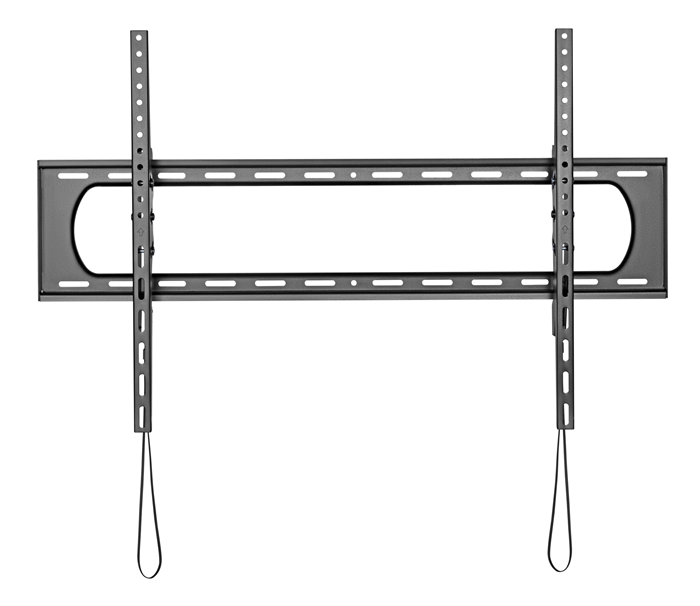

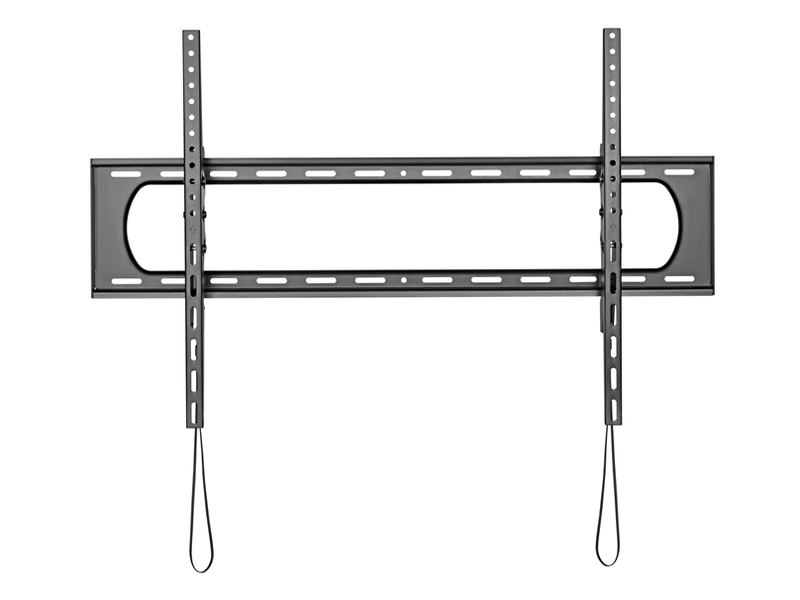

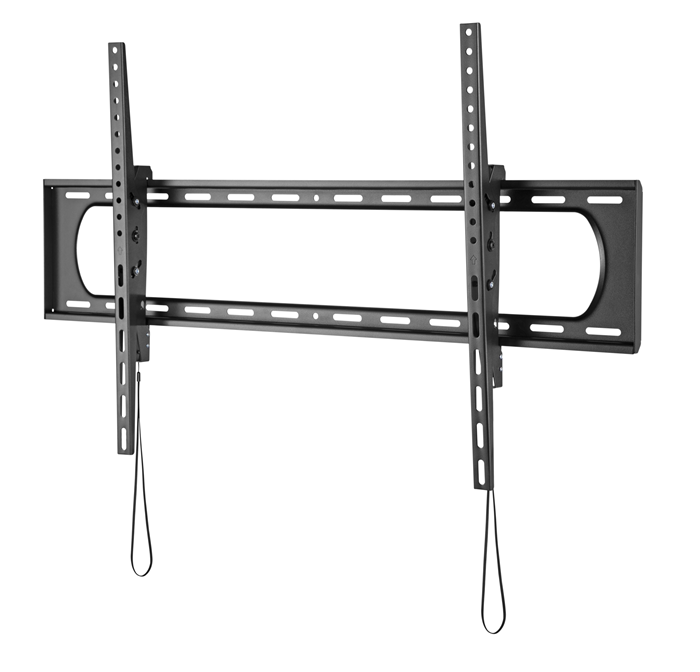

Brateck Affordable Affordable Heavy-Duty Tilt TV Wall Mount For 60’’~120’’ Fit Curved TV up to 120KG, VESA 50x50 up to 900x600 Fine Texture Black
FEATURES:
●Heavy-Duty Construction: provides extra strength and durability
●Toolless Tilt: allows for effortless positioning
●Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Open Architecture: provides increased ventilation and easier access to wires
Brateck Affordable Affordable Heavy-Duty Tilt TV Wall Mount For 60’’~120’’ Fit Curved TV up to 120KG, VESA 50x50 up to 900x600 Fine Texture Black
FEATURES:
●Heavy-Duty Construction: provides extra strength and durability
●Toolless Tilt: allows for effortless positioning
●Reduced Package Size: relatively lower transport costs and storage fees (perfect for e-commerce platform sellers)
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Open Architecture: provides increased ventilation and easier access to wires
| Technical Specifications | |
|---|---|
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 2 mm cold-rolled sheet (0.079") Wall Plate: 2 mm cold-rolled sheet (0.079") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 80 × 1005 × 602 mm (3.1" × 39.6" × 23.7") |
| Fit Screen Size | 60"–120" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 50×50, 75×75, 100×100, 100×150, 150×100, 100×200, 200×100, 150×150, 200×200, 200×300, 300×200, 200×400, 400×200, 300×300, 300×400, 400×300, 600×200, 400×400, 600×300, 400×600, 600×400, 700×400, 800×400, 600×600, 800×500, 800×600, 900×600 |
| Max. Mounting Hole | 965 × 602 mm |
| Weight Capacity | 120 kg (264 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 80 mm (3.1") |
| Tilt Range | +10° ~ -10° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall, Double Stud (406 mm / 450 mm / 600 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
| Certification | UL |
