Description
Overview

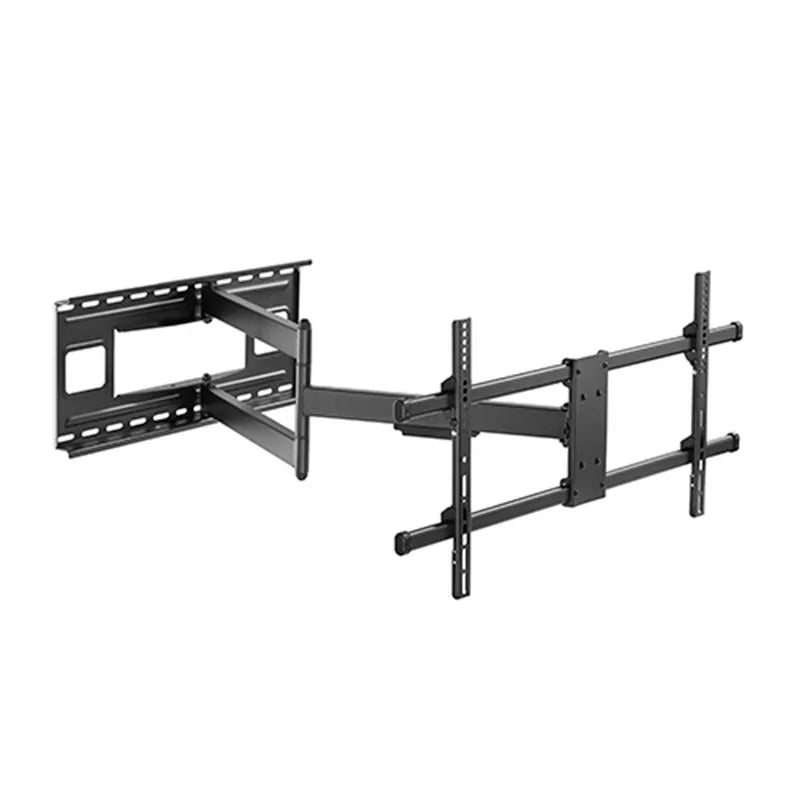

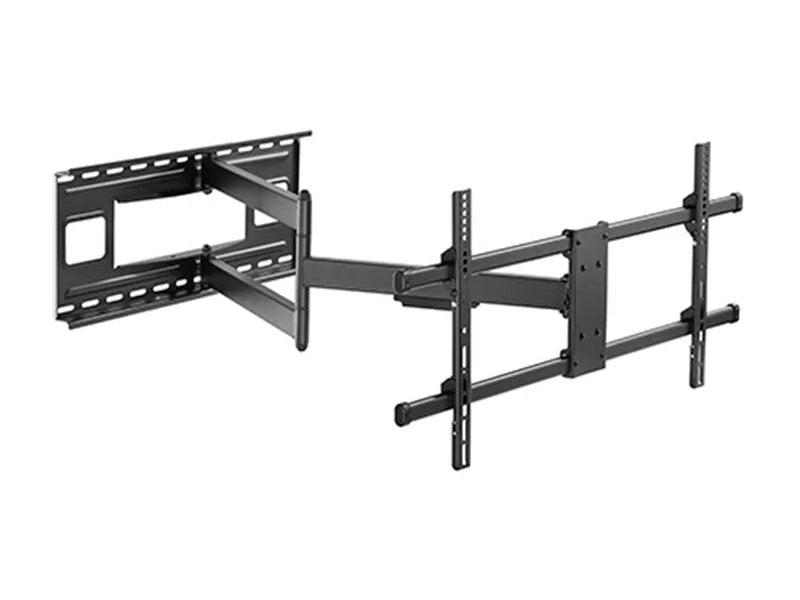

Featuring 1015mm (40")of arm extension and almost limitless swivel capability, the LPA49-483XLD offers maximum viewing range, meeting almost any mounting challenge. Heavy-duty arms provide strong support for larger and heavier TVs up to 50kg (110lbs).TV installation and removal is made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.
FEATURES
●Extending Arm: provides a wide range of viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Free-Tilting Design: for multiple monitor viewing angles
●Quick-Release Latch: locks/unlocks the display in place
●Cable Management: elegantly hides any cables that are attached to displays
Featuring 1015mm (40")of arm extension and almost limitless swivel capability, the LPA49-483XLD offers maximum viewing range, meeting almost any mounting challenge. Heavy-duty arms provide strong support for larger and heavier TVs up to 50kg (110lbs).TV installation and removal is made easy through a unique quick-release mechanism. Toolless tilting delivers optimal viewing angles. Integrated cable management creates a clean appearance.
FEATURES
●Extending Arm: provides a wide range of viewing angles
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Free-Tilting Design: for multiple monitor viewing angles
●Quick-Release Latch: locks/unlocks the display in place
●Cable Management: elegantly hides any cables that are attached to displays
| Fixed TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Fixed TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Bracket Arm: 1.5 mm cold-rolled sheet (0.059") Wall Plate: 3 mm pickling sheet (0.12") VESA Panel: 1.5 mm cold-rolled sheet (0.059") |
| Pipe Size | 50 × 25 × 1.5 mm Square Steel Tube (2" × 0.98" × 0.059") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 1015 × 885 × 430 mm (40" × 34.8" × 16.9") |
| Fit Screen Size | 43"–80" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 200×200, 300×200, 300×300, 400×200, 400×300, 400×400, 600×400, 800×400 |
| Max. VESA | 819 × 410 mm |
| Weight Capacity | 50 kg (110 lbs) |
| Strength Tested | 2 Times Approved |
| Profile | 82 ~ 1015 mm (3.2" ~ 40") |
| Tilt Range | +5° ~ -15° |
| Swivel Range | +90° ~ -90° |
| Screen Level | +3° ~ -3° |
| Screen Freely Tilting | Yes |
| Installation | Double Stud (406 mm / 450 mm / 600 mm), Solid Wall |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Bubble Level | Hook-on Bubble |
