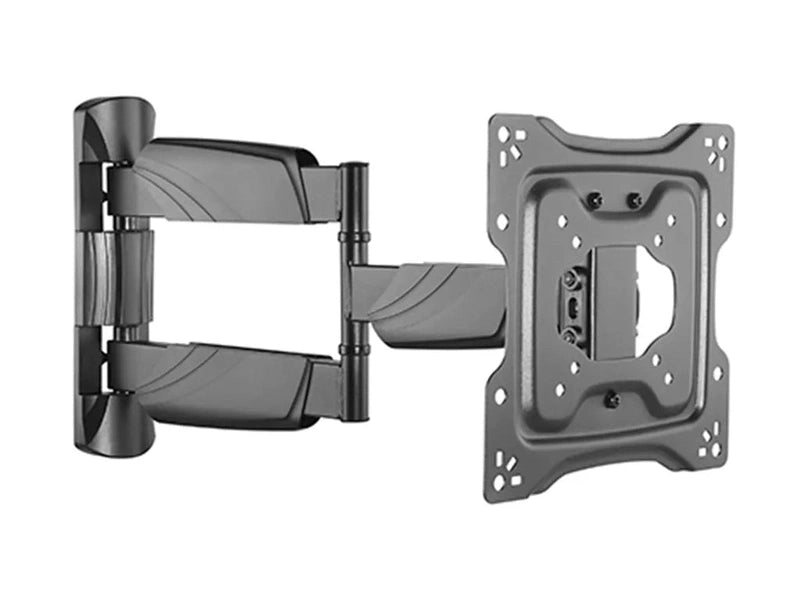

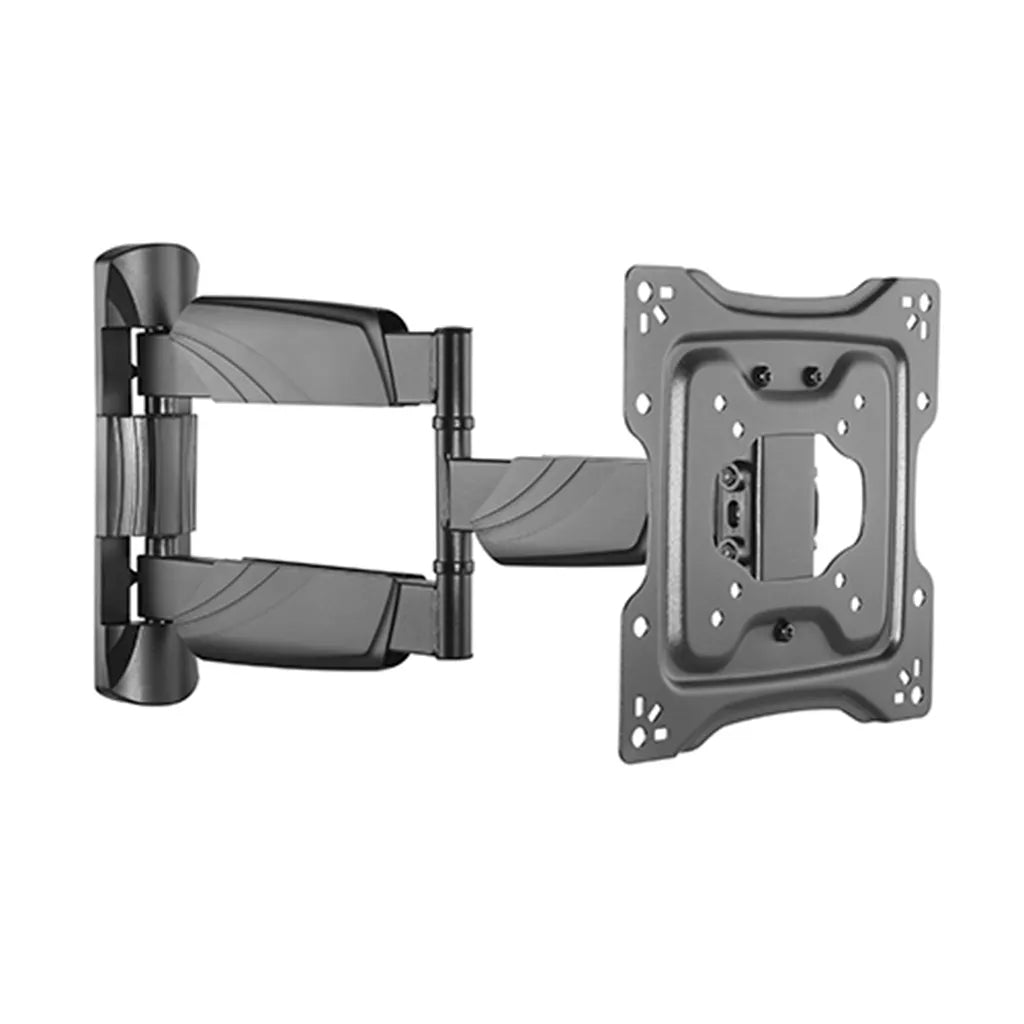

Brateck Elegant Full-Motion TV Wall Mount For 23"-42" up to 35KG
FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized
Brateck Elegant Full-Motion TV Wall Mount For 23"-42" up to 35KG
FEATURES:
●Free-Tilting Design: makes easy forward or backward adjustment for better viewing and reduced glare
●Swiveling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized
| Full-motion TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Full-motion TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Metal Sheet Thickness | VESA Panel: 1.8 mm cold-rolled sheet (0.071") Wall Plate: 2.5 mm pickling sheet (0.098") |
| Pipe Size | 40 × 20 × 1.5 mm (1.6" × 0.79" × 0.059") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 224 × 292 × 510 mm (8.8" × 11.5" × 20.1") |
| Fit Screen Size | 23"–42" |
| Fit Curved TV | No |
| Mounting Hole Pattern | VESA Only |
| VESA Compatible | 75×75, 100×100, 200×100, 200×200 |
| Max. Mounting Hole | 200 × 200 mm |
| Weight Capacity | 35 kg (77 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 45 ~ 510 mm (1.8" ~ 20.1") |
| Tilt Range | +5° ~ -15° |
| Swivel Range | +90° ~ -90° |
| Screen Level | +3° ~ -3° |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Single Stud |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Cable Management | Yes |
| Anti-theft | No |
| Bubble Level | No |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
| Certification | UL |
