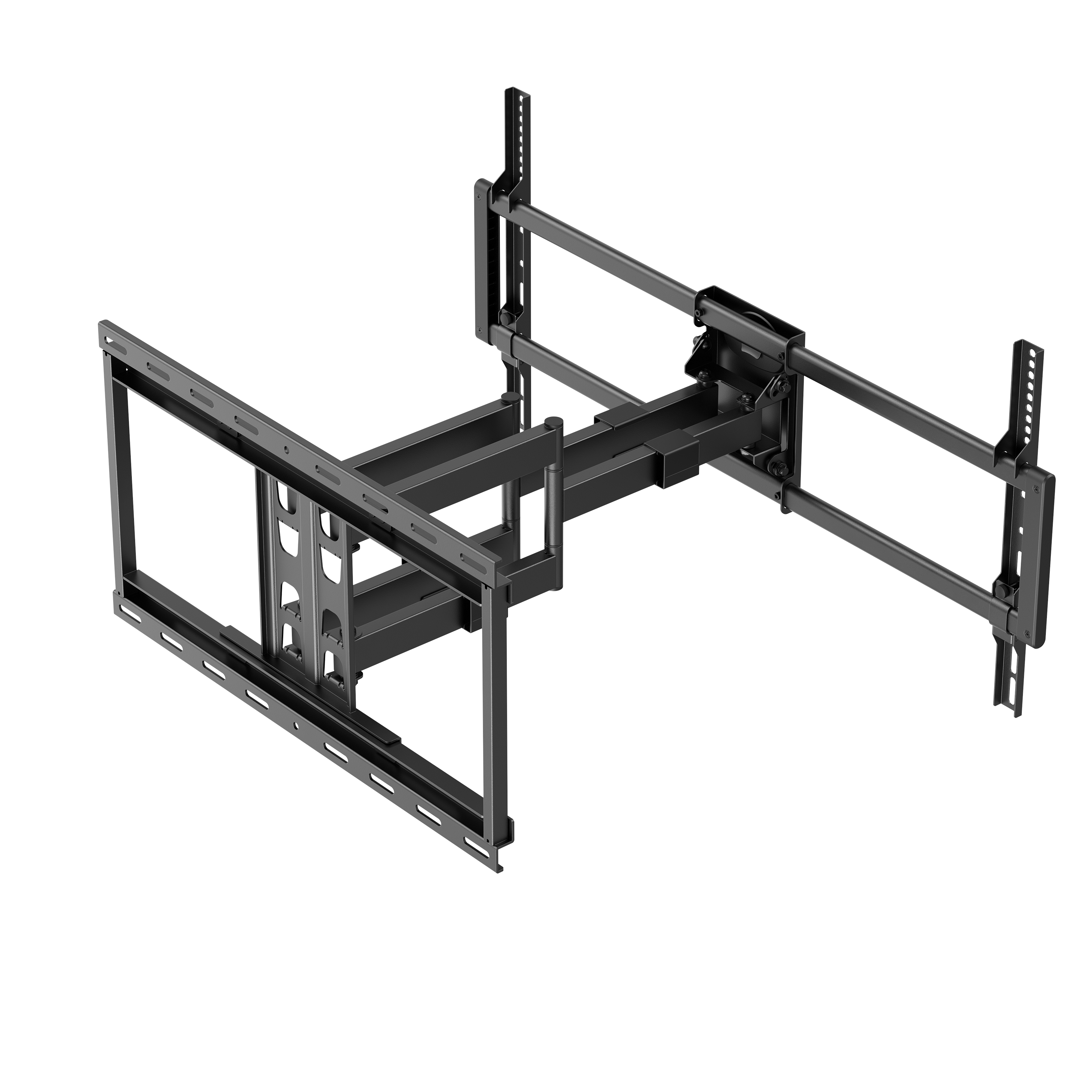

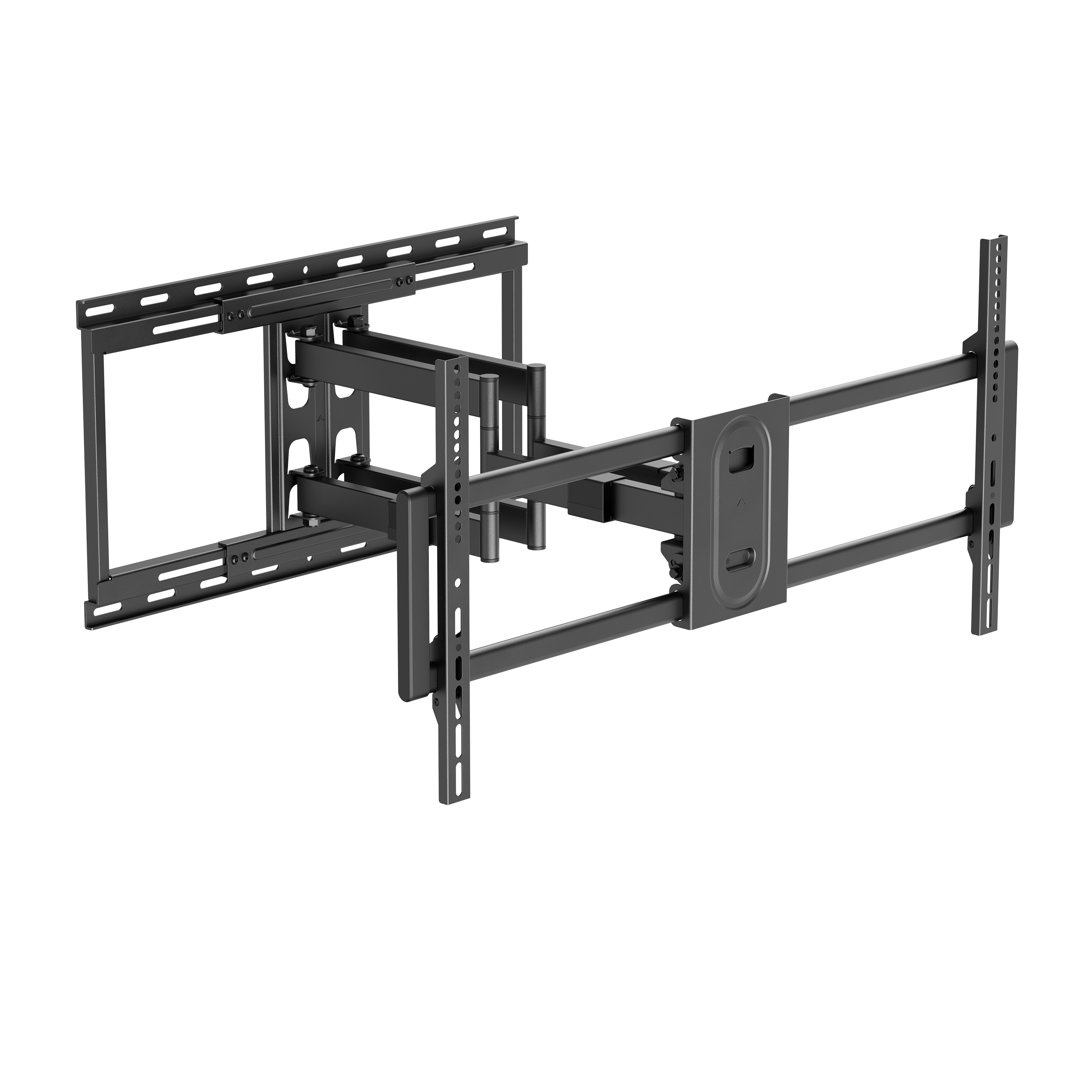

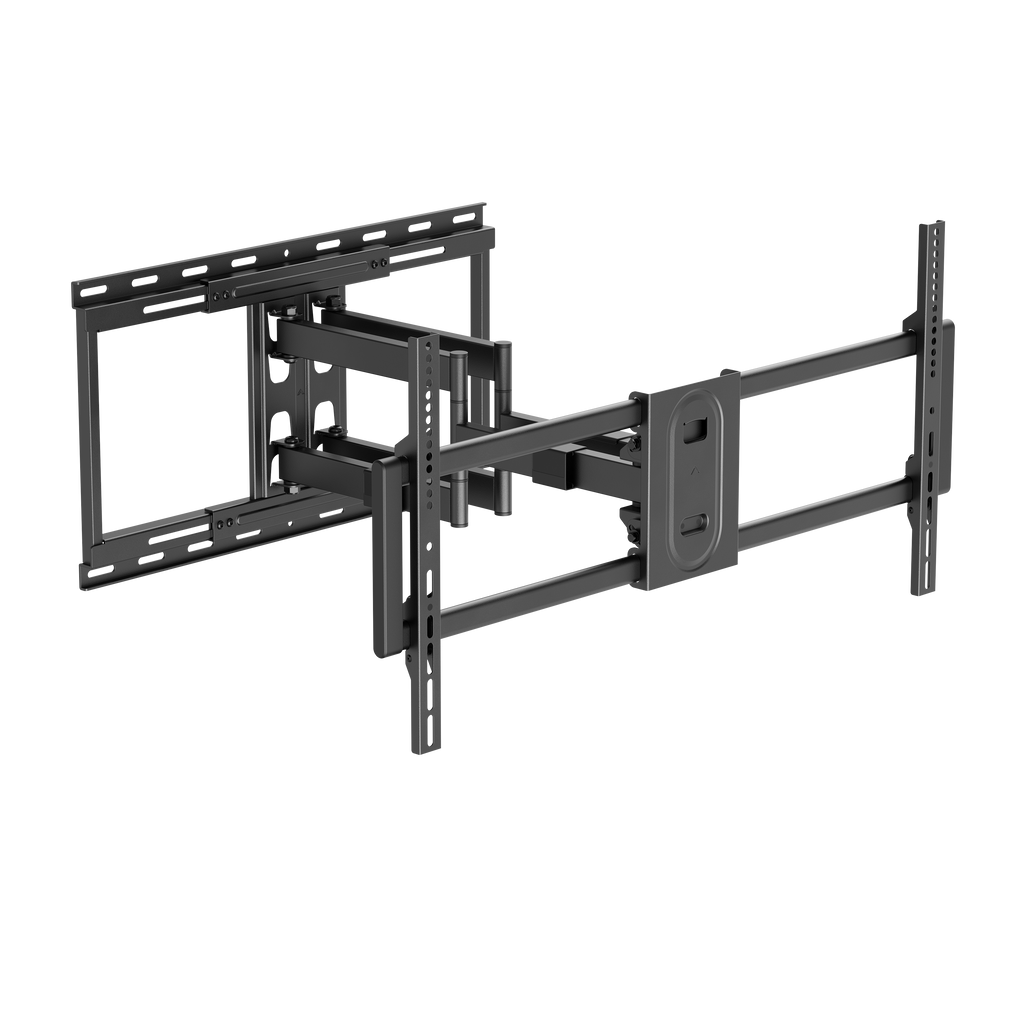

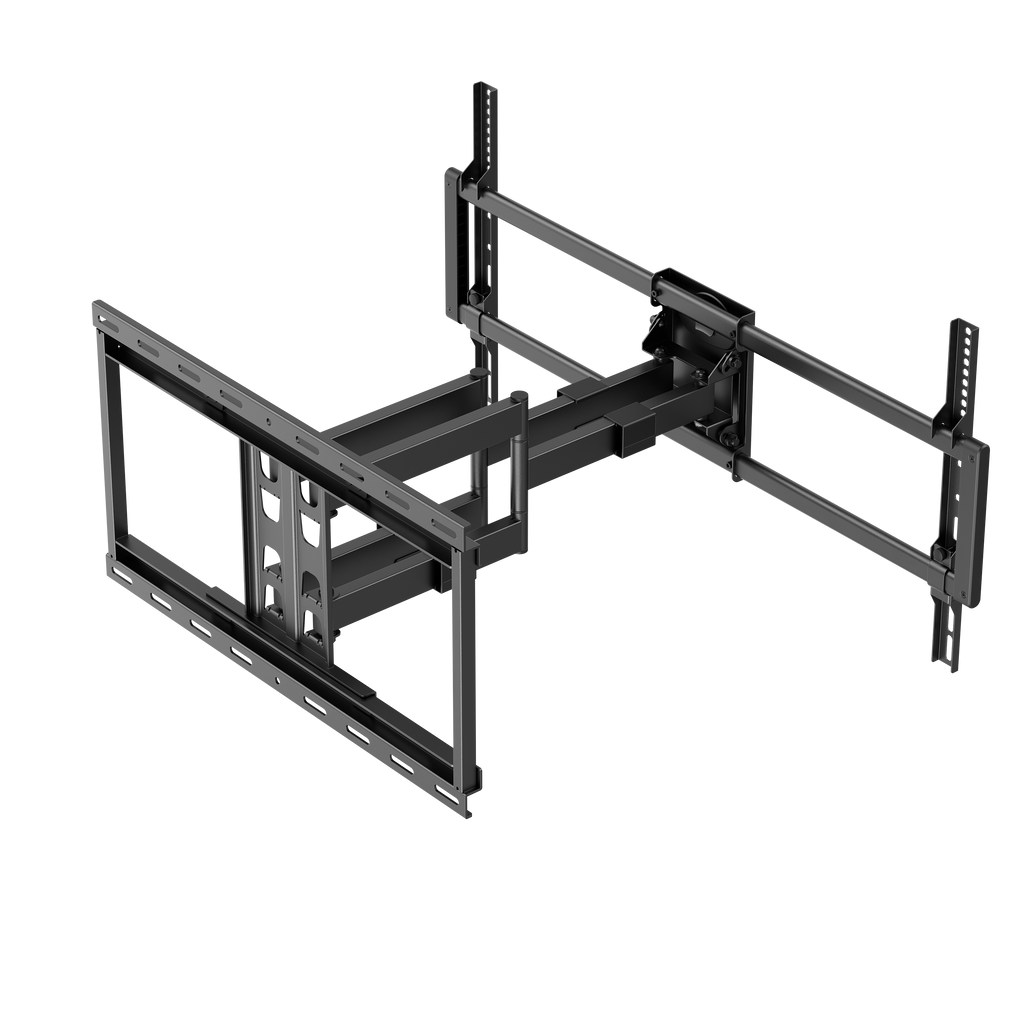

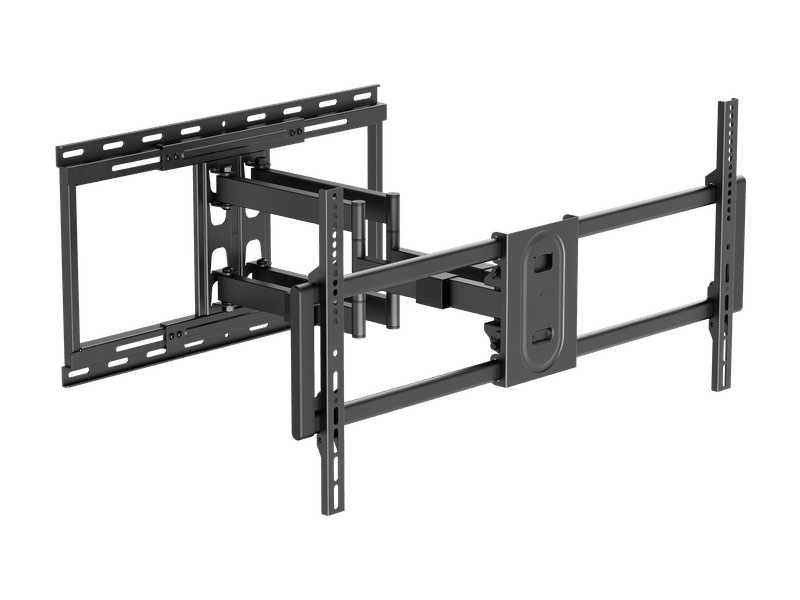

Brateck LPA80-486A HEAVY-DUTY FULL-MOTION TV WALL MOUNT WITH LATERAL SHIFT WALL PLATE For Double Stud (600mm) & Solid Wall
FEATURES
●Detachable Wall Plate: ensures easy assembly
●Free-tilting & Swiveling Design: for multiple TV viewing angles
●Lateral Shift Wall Plate: allows TV to shift left and right for perfect placement with off-center studs
●Easy Assembly: Installation is as easy as 1-2-3
●Open Architecture: provides increased ventilation and easier access to wires
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized
Brateck LPA80-486A HEAVY-DUTY FULL-MOTION TV WALL MOUNT WITH LATERAL SHIFT WALL PLATE For Double Stud (600mm) & Solid Wall
FEATURES
●Detachable Wall Plate: ensures easy assembly
●Free-tilting & Swiveling Design: for multiple TV viewing angles
●Lateral Shift Wall Plate: allows TV to shift left and right for perfect placement with off-center studs
●Easy Assembly: Installation is as easy as 1-2-3
●Open Architecture: provides increased ventilation and easier access to wires
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Cable Management: keeps everything organized
| Full-motion TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Full-motion TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Metal Sheet Thickness | Bracket Arm: 1.5 mm cold-rolled sheet (0.059") VESA Panel: 1.8 mm cold-rolled sheet (0.071") Wall Plate: 3 mm pickling sheet (0.12") |
| Pipe Size | 40 × 20 × 1.5 mm Square Steel Tube (1.6" × 0.79" × 0.059") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 635 × 906 × 430 mm (25" × 35.7" × 16.9") |
| Fit Screen Size | 43"–100" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400 |
| Max. Mounting Hole | 800 × 400 mm |
| Weight Capacity | 80 kg (176 lbs) |
| Strength Tested | 3 Times Approved |
| Profile | 90 ~ 635 mm (3.5" ~ 25") |
| Tilt Range | +5° ~ -10° |
| Swivel Range | +60° ~ -60° |
| Screen Level | +3° ~ -3° |
| Installation | Solid Wall, Double Stud (600 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Cable Management | Yes |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
