Description
Overview

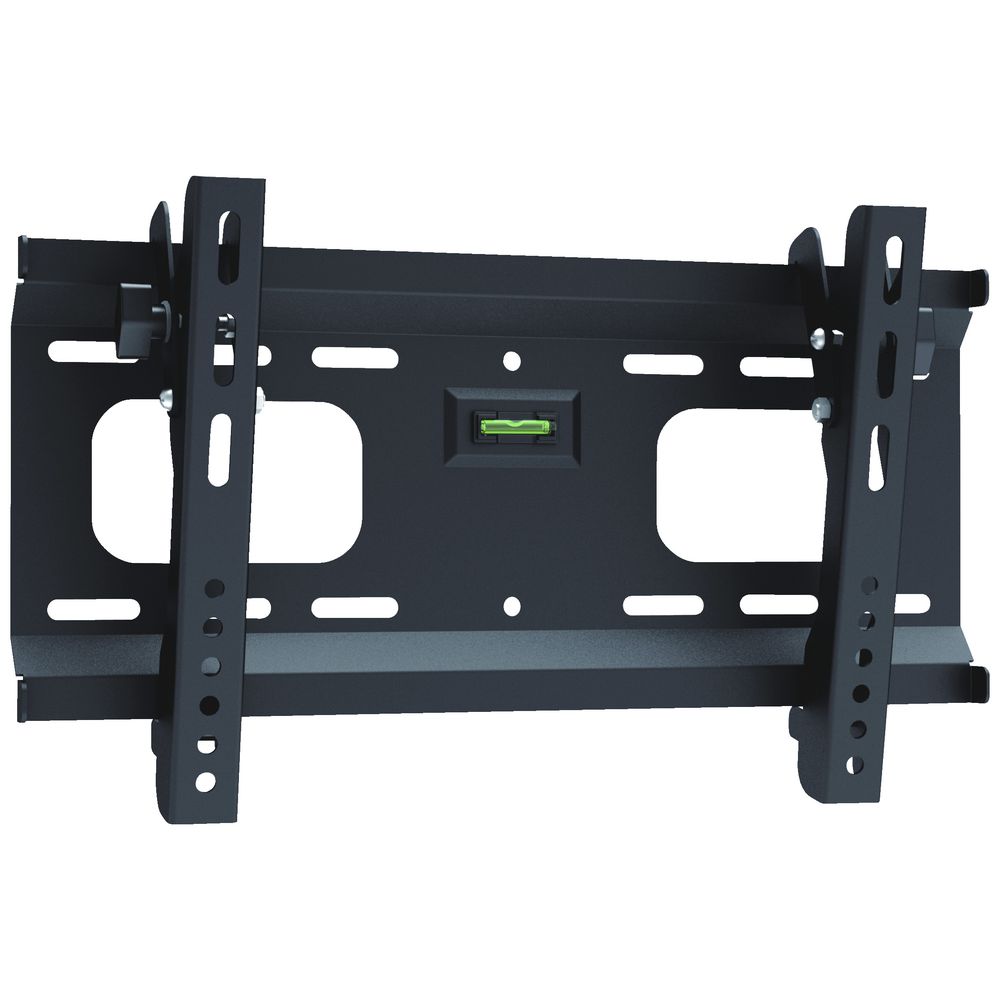

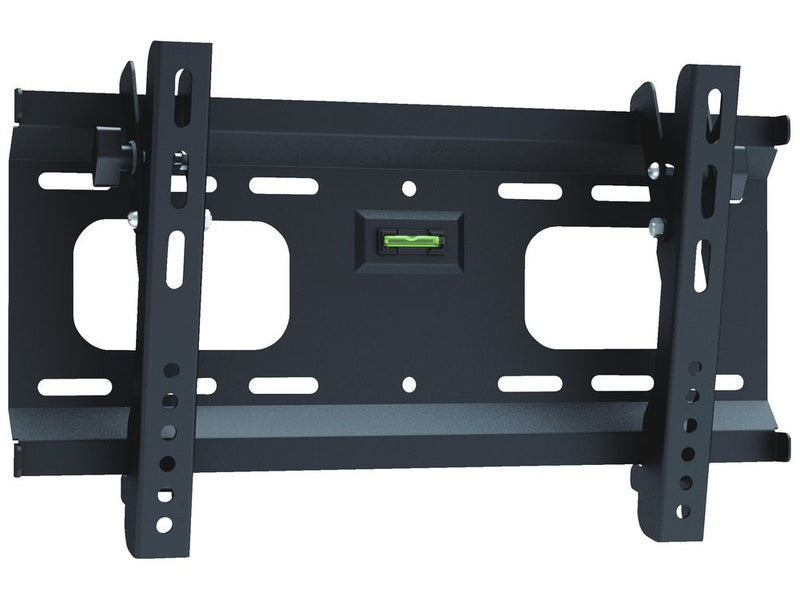

Easy to use and install, the popular model PLB-42 is designed to fit any 32''-55” Flat Panel TV up to 75kgs/165lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.
FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Open Architecture: provides increased ventilation and easier access to wires
●Integrated Bubble Level: assures alignment
Easy to use and install, the popular model PLB-42 is designed to fit any 32''-55” Flat Panel TV up to 75kgs/165lbs. This unit mounts in tilting position and tilts up to a 10° to position the screen for an optimal viewing experience. Integrated bubble level is included for easy installation alignment.
FEATURES
●Easy-Grip Knobs: for quick tilt and lock
●Open Architecture: provides increased ventilation and easier access to wires
●Integrated Bubble Level: assures alignment
| Tilt TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Tilt TV Wall Mount |
| Rank | Standard |
| Material | Steel |
| Metal Sheet Thickness | Wall Plate THK = 2 mm cold-rolled sheet (0.079"), Bracket Arm THK = 2 mm cold-rolled sheet (0.079") |
| Surface Finish | Powder Coating |
| Color | Fine Texture Black |
| Dimensions | 46 × 450 × 270 mm (1.8" × 17.7" × 10.6") |
| Fit Screen Size | 32"–55" |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 100×100, 200×100, 200×200, 400×200 |
| Max. VESA | 400 × 200 mm |
| Weight Capacity | 75 kg (165 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 46 mm (1.8") |
| Tilt Range | 0° ~ -10° |
| Screen Freely Tilting | Yes |
| Installation | Solid Wall, Double Stud (406 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Cable Management | No |
| Anti-theft | No |
| Bubble Level | Built-in Bubble Level (Integrated on Wall Plate) |
| Certification | UL |
