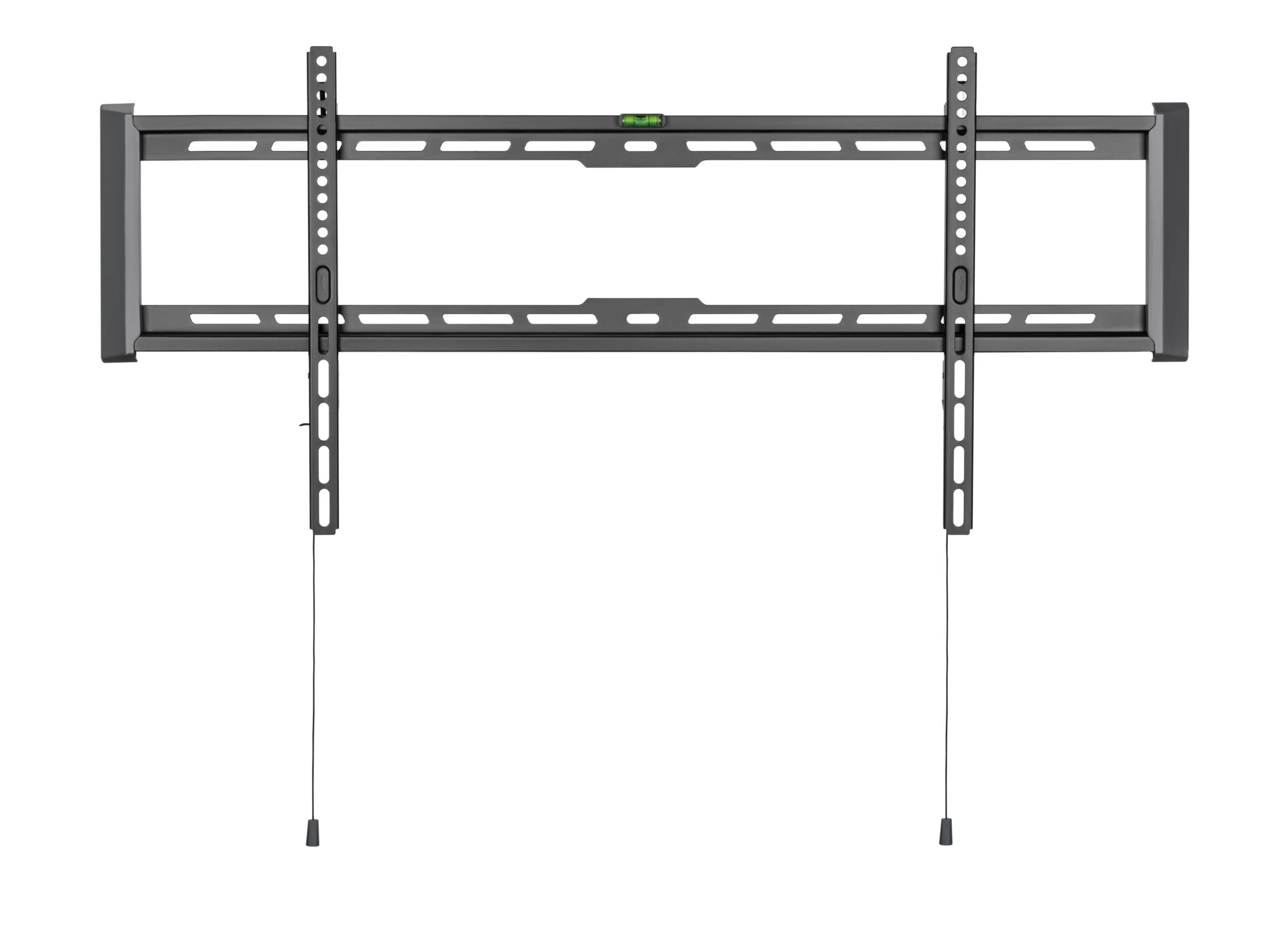

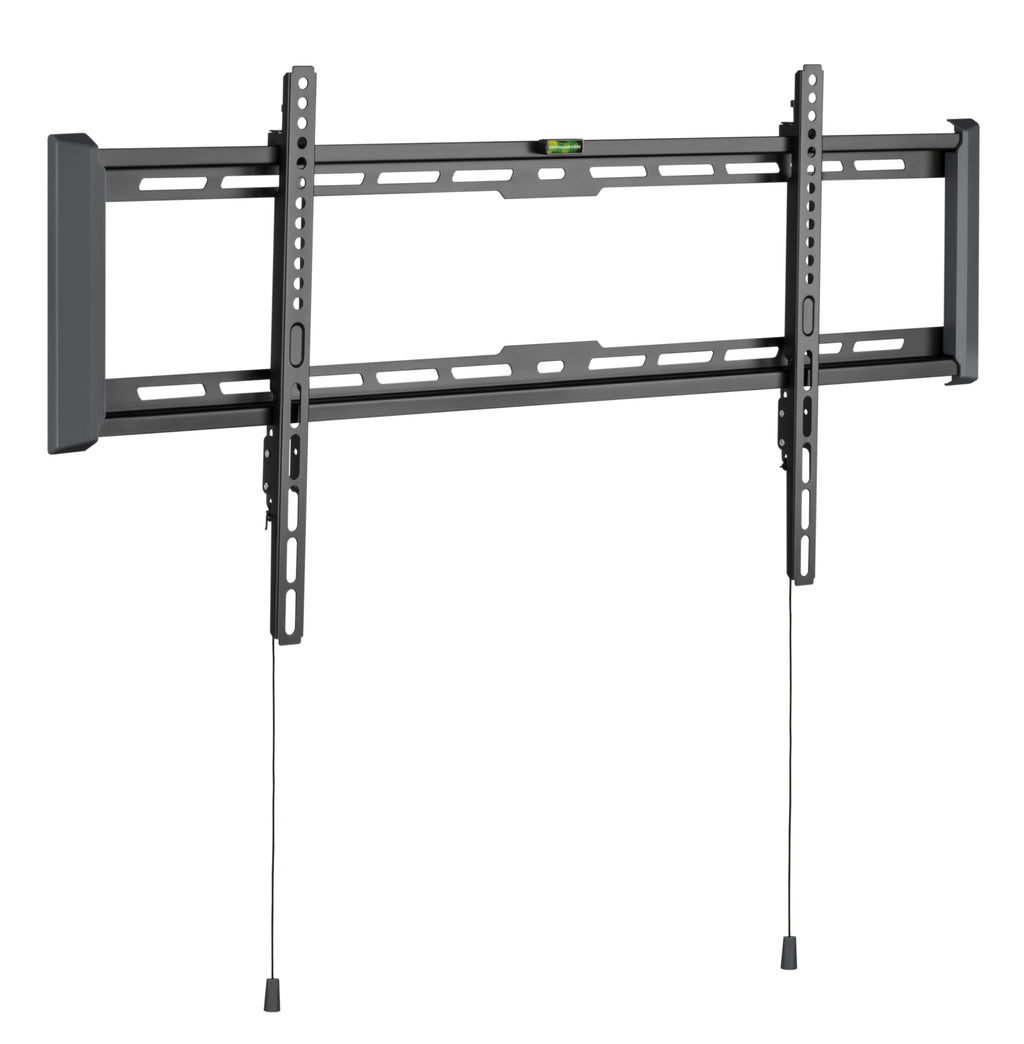

BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43"-90" up to 75KG, VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Black
FEATURES:
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Ultra-slim design
●Decorative Covers: for a more elegant look
●Heavy-Duty Construction: provides extra strength and durability
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Bubble level included
●Magnetic Strap End: hides itself when not in use.
BrateckUltra-Slim and Heavy-Duty TV Wall Mount For 43"-90" up to 75KG, VESA 200x200,300x200,400x200,300x300,400x300,400x400,600x400,800x400 Black
FEATURES:
●Leveling adjustments: allow TV to be perfectly positioned after hanging
●Ultra-slim design
●Decorative Covers: for a more elegant look
●Heavy-Duty Construction: provides extra strength and durability
●Automatic Spring Locks with Quick Release Cords: allow TV removal quick and easy
●Bubble level included
●Magnetic Strap End: hides itself when not in use.
| Fixed TV Wall Mount – Technical Specifications | |
|---|---|
| Product Category | Fixed TV Wall Mount |
| Rank | Standard |
| Material | Steel, Plastic |
| Metal Sheet Thickness | Bracket Arm: 1.5 mm cold-rolled sheet (0.059") Wall Plate: 1.5 mm cold-rolled sheet (0.059") |
| Surface Finish | Powder Coating |
| Color | Matte Black |
| Dimensions | 27 × 970 × 430 mm (1.1" × 38.2" × 16.9") |
| Fit Screen Size | 43"–90" |
| Fit Curved TV | Yes |
| Mounting Hole Pattern | VESA & Universal |
| VESA Compatible | 200×200, 300×200, 400×200, 300×300, 400×300, 400×400, 600×400, 800×400 |
| Max. Mounting Hole | 868 × 405 mm |
| Weight Capacity | 75 kg (165 lbs) |
| Strength Tested | 4 Times Approved |
| Profile | 27 mm (1.1") |
| Screen Level | 8 mm |
| Tilt Range | +4° ~ -10° |
| Screen Freely Tilting | No |
| Installation | Solid Wall, Double Stud (406 mm / 450 mm / 600 mm) |
| Panel Type | Detachable Panel |
| Wall Plate Type | Fixed Wall Plate |
| Direction Indicator | Yes |
| Bubble Level | Hook-on Bubble Level (Included in Components Package) |
| Accessory Kit Package | Normal / Ziplock Polybag, Compartment Polybag |
