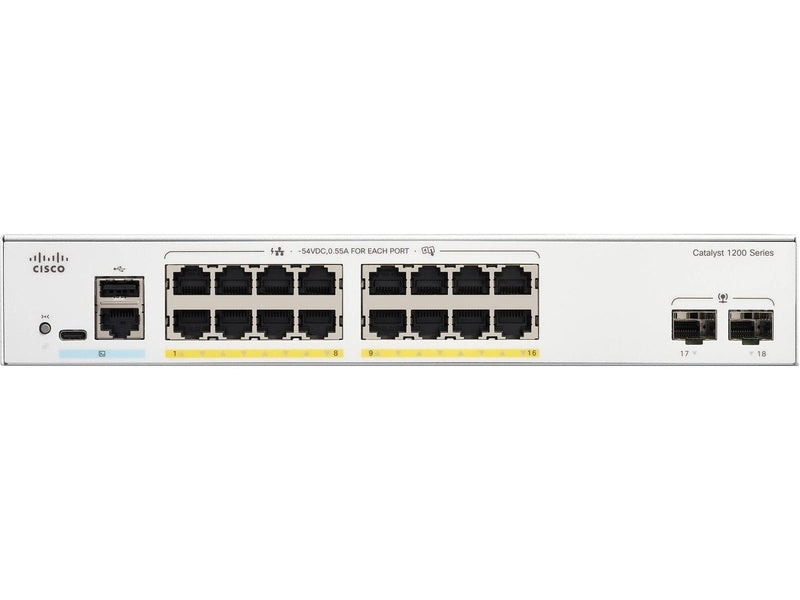

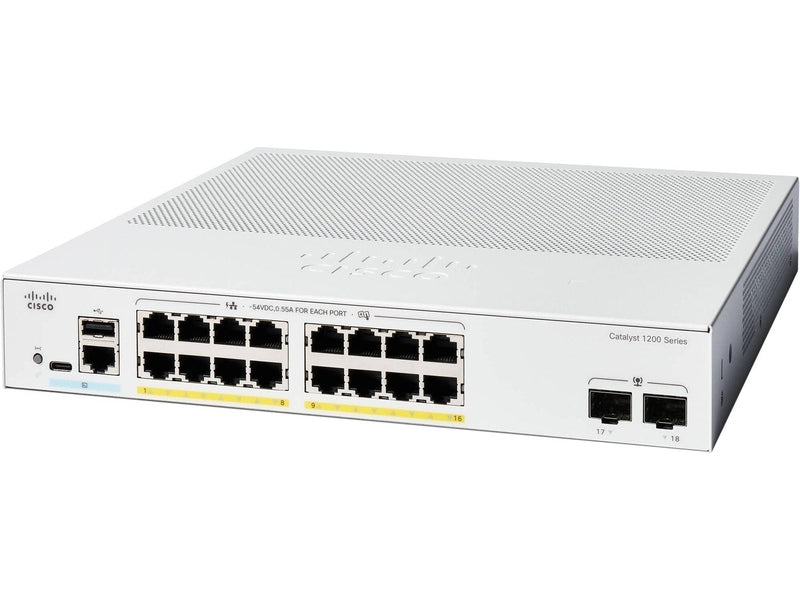

Cisco Catalyst 1200 16-port GE PoE 2x1G SFP Switch

CiscoSKU: C1200-16P-2G

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$632.00

Estimate shipping

Description

Overview

Cisco® Catalyst® 1000 Series Switches are fixed managed Gigabit Ethernet and Fast Ethernet enterprise-class Layer 2 switches designed for small businesses and branch offices. These are simple, flexible and secure switches ideal for out-of-the-wiring-closet and critical Internet of Things (IoT) deployments. Cisco Catalyst 1000 operate on Cisco IOS® Software and support simple device management and network management via a Command-Line Interface (CLI) as well as an on-box web UI. These switches deliver enhanced network security, network reliability, and operational efficiency for small organizations.

Specifications

Product Description Cisco Catalyst 1200-16P-2G - switch - 16 ports - smart - rack-mountable
Device Type Switch - 16 ports - L3 - smart
Enclosure Type Rack-mountable
Subtype Gigabit Ethernet
Ports 16 x 10/100/1000 (PoE+) + 2 x Gigabit Ethernet SFP
Power Over Ethernet (PoE) PoE+
PoE Budget 120 W
Performance Forwarding rate (64-byte packets): 26.78 Mpps ? Switching capacity: 36 Gbps
Capacity MSTP instances: 8 ? PVST+ instances: 126 ? RPVST+ instances: 126 ? Link aggregation groups: 4 ? Link aggregation ports: 8 ? Active VLANs: 255 ? IGMP multicast groups: 255 ? IPv4 routes (static): 32 ? IPv4 interfaces: 16 ? ACL rules: 512 ? Priority queues: 8 ? Packet buffer size: 1.5 MB
MAC Address Table Size 8000 entries
Jumbo Frame Support 9000 bytes
Routing Protocol IGMPv2, IGMP, static IP routing, IGMPv3, MLDv2, MLD, CIDR, MSTP, RSTP, STP, Bounjour
Remote Management Protocol SNMP, RMON, Telnet, SNMP 3, SNMP 2c, HTTP, HTTPS, TFTP, SSH, SSH-2, CLI, SCP, ICMP, DHCP, RADIUS, Syslog
Features BOOTP support, VLAN support, IGMP snooping, DoS attack prevention, port mirroring, DiffServ support, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, Multicast Storm Control, Unicast Storm Control, SNTP support, Multiple Spanning Tree Protocol (MSTP) support, Trivial File Transfer Protocol (TFTP) support, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, Per-VLAN Spanning Tree Plus (PVST+), reset button, Cable Diagnostics Function, fanless, DHCP relay, Link Aggregation Control Protocol (LACP), Port Security, SNMP trap, DHCP client, Class of Service (CoS), Strict Priority (SP), Generic Attribute Registration Protocol (GARP), Generic VLAN Registration Protocol (GVRP), port grouping, Type of Service (ToS), Storm Control, Secure Copy (SCP), Link Aggregation, IGMP querier, VLAN mirroring, DNS client, Voice VLAN, VLAN management, Secure Core Technology (SCT), Secure Sensitive Data (SSD), Guest VLAN, User Datagram Protocol (UDP), ingress rate limiting, STP loop guard, Denial of Service (DoS) protection, Energy-Efficient Ethernet (EEE), TCP/UDP proxy, Weighted Round Robin (WRR), DSCP based CoS, Head-of-line (HOL) Blocking Prevention, loopback detection, port-based VLAN, Telnet server, Telnet client, Unknown Storm Control, Link Aggregation Group (LAG), IPv4 and IPv6 dual stack, Cisco Discovery Protocol (CDP), Voice Services Discovery Protocol (VSDP), Rapid PVST+ (RPVST+), Duplicate Address Detection (DAD), Zero-Touch Deployment, cable length detection, Media Endpoint Discovery (LLDP-MED), trustworthy systems, layer 3 routing, remote firmware upgrade, Link Layer Discovery Protocol, eco-friendly button, Egress Queue Shaping (EQS), Auto Surveillance VLAN, path maximum transmission unit (MTU) discovery, TCP congestion, chip guard, boot integrity, time-based port operation, tag-based VLANs
Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.3z, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ab (LLDP), IEEE 802.3at, IEEE 802.3az
Power AC 100-240 V (50 - 60 Hz)
Dimensions (WxDxH) 26.8 cm x 29.7 cm x 4.4 cm
Weight 2.38 kg
Manufacturer Warranty Limited lifetime warranty
