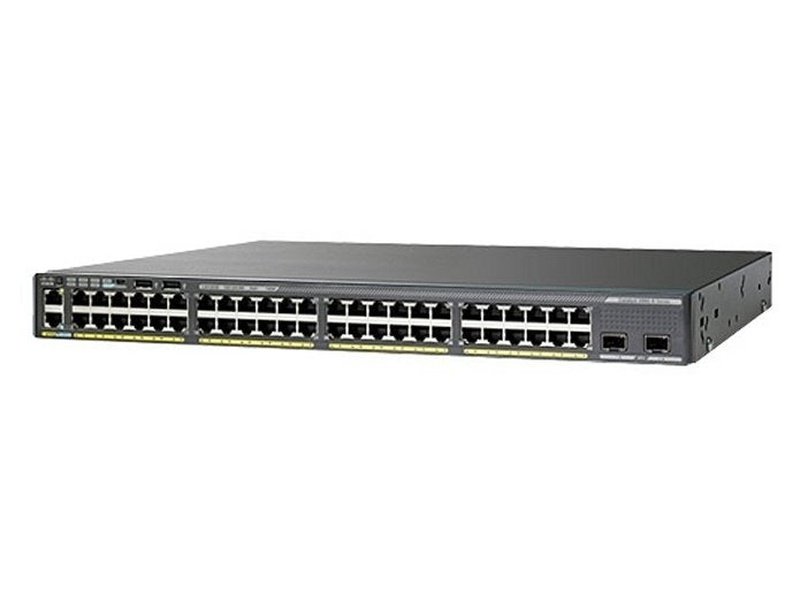

Cisco Catalyst 2960-XR 48 Ports Manageable Ethernet Switch, PoE, 4x1G SFP

CiscoSKU: WS-C2960XR-48FPS-I

Cisco Catalyst 2960-XR 48 Ports Manageable Ethernet Switch - 10/100/1000Base-T - 3 Layer Supported - 4x1 Gigabit SFP Slots - PoE Ports - Rack-mountable

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$17,003.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

OVERVIEW

Cisco® Catalyst® 2960-X and 2960-XR Series Switches are fixed-configuration, stackable Gigabit Ethernet switches that provide enterprise-class access for campus and branch applications (Figure 1). They operate on Cisco IOS® Software and support simple device management as well as network management. The Cisco Catalyst 2960-X and 2960-XR Series provide easy device onboarding, configuration, monitoring, and troubleshooting. These fully managed switches can provide advanced Layer 2 and Layer 3 features as well as optional Power over Ethernet Plus (PoE+) power. Designed for operational simplicity to lower total cost of ownership, they enable scalable, secure, and energy-efficient business operations with intelligent services. The switches deliver enhanced application visibility, network reliability, and network resiliency.

Product Highlights

Cisco Catalyst 2960-X and 2960-XR Series Switches feature:

● 24 or 48 Gigabit Ethernet ports with line-rate forwarding performance
● 4 fixed 1 Gigabit Ethernet Small Form-Factor Pluggable (SFP) uplinks or 2 fixed 10 Gigabit Ethernet SFP+ uplinks
● PoE+ support with a power budget of up to 740W and Perpetual PoE
● Cisco IOS LAN Base[1] or LAN Lite1 and Cisco IOS IP Lite[2]
● Device management with web UI, over-the-air access via Bluetooth, Command-Line Interface (CLI), Simple Network Management Protocol (SNMP), and RJ-45 or USB console access
● Network management with Cisco Prime®, Cisco Network Plug and Play, and Cisco DNA™ Center
● Stacking with FlexStack-Plus and FlexStack-Extended
● Layer 3 features with routed access (Open Shortest Path First [OSPF]), static routing, and Routing Information Protocol (RIP)
● Visibility with Domain Name System as an Authoritative Source (DNS-AS) and Full (Flexible) NetFlow
● Security with 802.1X, Serial Port Analyzer (SPAN) and Bridge Protocol Data Unit (BPDU) Guard
● Reliability with higher Mean Time Between Failures (MTBF) and Enhanced Limited Lifetime Warranty(E-LLW)
● Resiliency with optional dual field-replaceable power supplies

Power Supply
An external redundant power supply option is supported on the Cisco Catalyst 2960-X Series Switches. These switches come with one fixed power supply and an option for an external redundant power supply (Cisco Redundant Power System [RPS] 2300).

Dual redundant power supplies are supported on the Cisco Catalyst 2960-XR Series Switches. These switches ship with one power supply by default. The second power supply can be purchased at the time of ordering the switch or as a spare.

SPECIFICATIONS

Expansion Slot Type:
SFP

Number of SFP Slots:
4

Number of Total Expansion Slots:
4

Bypass:
No

LRE Port:
No

Management Port:
Yes

Modular:
No

Number of PoE (RJ-45) Ports:
24

Number of PoE+ (RJ-45) Ports:
24

Port/Expansion Slot Details:
Gigabit Ethernet

Token Ring Port:
No

Total Number of Network Ports:
48

USB:
Yes

Manageable:
Yes

Management:
Web-based Management
VLAN
QoS
Syslog
Telnet
RMON I, II
SNMP v1, v2c, v3
DHCP
CLI

Ethernet Technology:
Gigabit Ethernet

Media Type Supported:
Twisted Pair

Network Technology:
10/100/1000Base-T

Twisted Pair Cable Standard:
Category 5

Flash Memory:
128 MB

Memory Technology:
DRAM

Standard Memory:
512 MB

System Requirements:

Disk space:
200 MB

Hardware:
PC with 1 GHz

Memory:
1 GB

PC hardware:
1 GHz

Screen Resolution:
1024 x 768

Operating Systems:
Windows 2000 Professional (Service Pack 4 or later)
Windows 2003 Server
Windows XP Professional (Service Pack 2 or later)
Windows Vista Ultimate
Windows 7
Macintosh OS X

Layer Supported:
3

Depth:
406.4 mm

Form Factor:
Rack-mountable

Height:
44.5 mm

Weight (Approximate):
6.67 kg

Width:
444.5 mm

Input Voltage:
110 V AC

PoE (RJ-45) Port:
Yes

Power Source:
Power Supply

Redundant Power Supply Supported:
Yes
