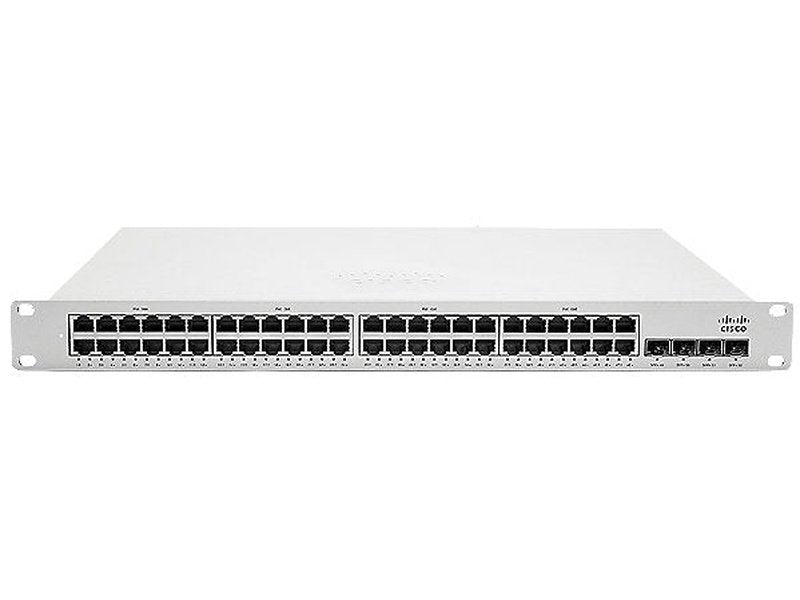

Cisco Meraki MS350 L3 Stackable Cloud 48 Ports Manageable Ethernet Switch

Cisco MerakiSKU: MS350-48-HW

Cisco Meraki Cloud Managed MS350-48 - Switch - L3 - Managed - 48 x 10/100/1000 + 4 x 10 Gigabit SFP+ (uplink) - desktop, rack-mountable

Availability:

❌ Back Order - Contact Us for ETA

Price:
Sale price$14,061.00
Contact Us for ETA

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Description

Highlights

Configurations

48 port Gigabit Ethernet
4 × 10GbE SFP+ uplinks
MS350-48LP includes 370 W PoE / PoE+
MS350-48FP includes 740 W PoE / PoE+
160G Physical stacking

Hardware platform

Voice and Video QoS
Non-blocking switch fabric
Hot-swappable power supplies and fans
Ultra-reliable, includes lifetime warranty

Power over Ethernet (for PoE models)

802.3af (PoE) 15.4 W per port
802.3at (PoE+) 30 W per port
MS350-48LP maximum PoE output: 370 W
MS350-48FP maximum PoE output: 740 W
PoE available simultaneously on all ports
Intelligent PoE power allocation based on device advertisement (LLDP)

Cloud management

Visibility and control over thousands of ports
Built-in multi site management
Zero touch provisioning

Monitoring and diagnostics

Cable failure testing
Gateway connectivity testing
Real time troubleshooting tools
Email and text message alerts

Layer 3

Dynamic routing (OSPFv2) *
Static routing
DHCP Relay
DHCP Server
First of a kind UI-based configuration
Easy to configure routed interfaces
Warm spare redundancy (VRRP) *
DHCP Failover

TECHNICAL SPECIFICATIONS

Interfaces
48 × 10/100/1000BASE-T Ethernet (RJ45) with auto-MDIX crossover
48V DC 802.3af/802.3at Power-over-Ethernet (PoE/PoE+) on the MS350-48P models, available on all ports (maximum of 30W per port for PoE+)
4 × SFP+ 10 Gigabit Ethernet interfaces for uplink
2 × Stacking interfaces
Auto negotiation and crossover detection

Ethernet switching capabilities

802.1p Quality of Service prioritization
802.1Q VLAN tagging with 4,095 addressable tags
802.1D Spanning Tree Protocol (RSTP, STP)
802.1ab Link Layer Discovery Protocol (LLDP)
802.3ad link aggregation with up to 8 ports per aggregate
Broadcast storm control
IGMP snooping for multicast filtering
MAC forwarding table entries: 96,000

Security

Integrated two-factor authentication
Role-based administration
Corporate wide password policy enforcement
IEEE 802.1X port-based security

Performance

Non-blocking fabric
176 Gbps non-blocking switching capacity
2.5 microsecond latency

Power over Ethernet (PoE models):

802.3af (PoE) 15.4 W per port and 802.3at (PoE+) 30 W per port
MS350-48LP maximum PoE output: 370 W
MS350-48FP maximum PoE output: 740 W
PoE available on all ports simultaneously
Pre-standard PoE: supports pre-standard PoE devices

Management

Managed via the cloud using the Meraki dashboard
Integrated with Meraki wireless, routing, and firewall management
No-touch remote deployment (no staging needed)
Detailed historical per-port and per-client usage statistics
DHCP and hostname fingerprinting
SNMP v2c
Seamless over-the-web firmware upgrades

Remote diagnostics

Email and text alerts
Live remote packet capture
Aggregated event logs with instant search

Scalable stacking

Unified configuration and monitoring of all switches
Virtually stack thousands of switch ports in a single logical stack for unified management, monitoring, and configuration
Physically stack up to 8 switches for added resiliency in high-throughput environments

Layer 3 capabilities

Static routing
Dynamic routing (OSPFv2)
DHCP Server and Relay
Warm spare (VRRP) with DHCP Failover

Power

Power input: 100-240 VAC, 47-63 Hz
MS350-48 power consumption: 56-63 W max
MS350-48LP power consumption: 63-478 W max
MS350-48FP power consumption: 70-888 W max

Environment

Operating temperature: 32°F to 113°F (0°C to 45°C)
Humidity: 5 to 95% non-condensing
MTBF (at 25°C)
MS350-48: 588,000 hours
MS350-48LP: 536,000 hours
MS350-48FP: 516,000 hours

Warranty

Lifetime hardware warranty with advanced replacement included
Physical dimensions (H × W × D)

MS350-48
1.74" x 19.1" x 20.4" (4.44 x 48.6 x 51.8 cm) with power supply fitted
Weight: 12.85 lb (5.83 kg)
