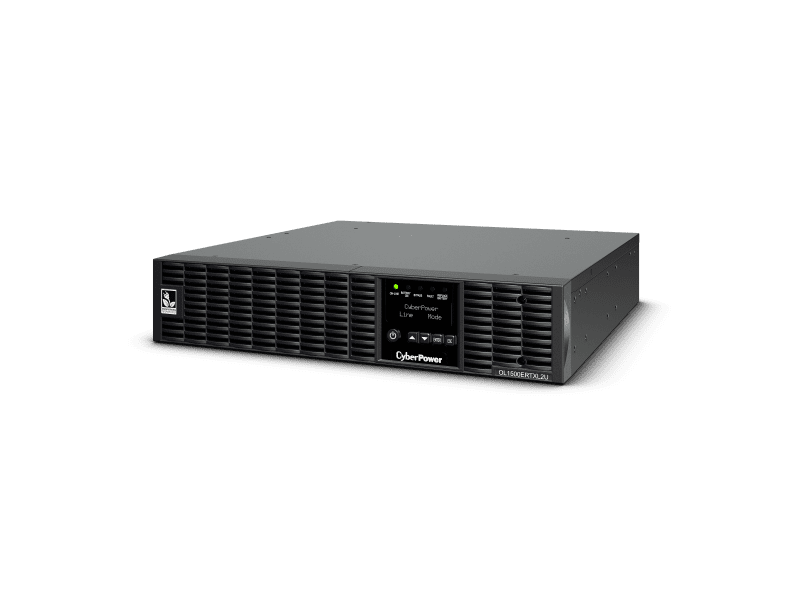

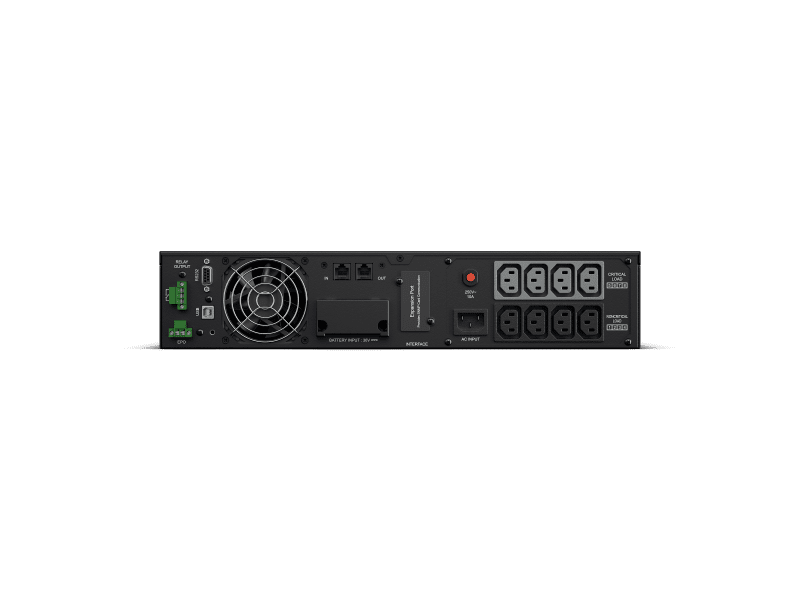

Cyberpower Online Series 1500VA/1350W (10A) Rack/Tower Online UPS

CyberpowerSKU: OL1500ERTXL2U

CyberPower Online Series 1500 VA / 1350 Watts Online UPS, Rack/Tower, 2 Year Advance Replacement Warranty

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$1,512.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

OVERVIEW

CyberPower OL1500ERTXL2U is a high-performance UPS featuring online double-conversion topology, which provides seamless pure sine wave power for mission-critical devices such as NAS and servers, DVRs/surveillance systems, transportation and infrastructure, and emergency systems. It’s typically integrated in the back office, server room, and data center environment. The rackmount / tower convertible design gives it enhanced flexibility for installation and operation in almost any environment.

By manually setting the UPS to ECO Mode, the UPS automatically detects the input power quality and discerns whether it should operate in Line Mode or ECO Mode. Under poor power conditions, the UPS will run in Line Mode, which guarantees the highest level of protection and the best possible power quality. When the input power quality is acceptable, the UPS switches to ECO Mode, which increases the total output power efficiency by up to 95%.

FEATURES:

Online (Double Conversion) UPS Topology
Energy Saving Technology
Generator Compatible
Overload Protection
Critical/ Non-critical Load Outlets
Zero Transfer Time
Smart Battery Management (SBM)
Hot-swappable Battery Packs
External Battery Module (EBM)
Surge and Spike Protection
EMI and RFI Filtration
Phone/ Fax/ Modem/ DSL/ Network Protection
LCD Status Display
Detachable LCD Panel
Emergency Power Off (EPO)
PortPowerPanel® Management Software
SNMP/ HTTP Remote Management Capability
Rack/ Tower Convertible Configurations

TYPICAL APPLICATION

Data Closets
NAS & Servers
Home Theater Systems
DVRs/Surveillance Systems
POS Systems
Transportation & Infrastructure
Vehicle/Yacht
Emergency Systems
Electric Lighting
Back Office
Server Room
Data Center

FEATURES FOCUS

Online (Double Conversion) UPS Topology
Known to provide the highest power protection from disruptive power issues, the online double-conversion topology first goes through AC to DC conversion, and then invert DC into perfect sine wave AC output, guaranteeing the best power quality for even the harshest power conditions at all times while also supporting zero transfer time.

Smart Scheduling
Smart Scheduling is a self-learning energy-saving technology with the ability to analyze the fluctuations of utility power and dynamically find the most suitable operating scheme for your existing power system. It ensures the most savings in energy while maintaining the highest level of protection for your mission-critical devices.

SPECIFICATIONS:

GENERAL


UPS Topology
Online Double Conversion
Energy Saving Technology
Online ECO Mode Efficiency > 93%
Active PFC Compatibility
Yes

INPUT

Generator Compatibility
Yes
Nominal Input Voltage (Vac)
200
208
220
230
240
Input Voltage Range (Vac)
190 ~ 300
Adjustable Voltage Range (Vac)
0~60% Load for 120 ~ 139 Vac
0~70% Load for 140 ~ 159 Vac
0~80% Load for 160 ~ 179 Vac
0~90% Load for 180 ~ 189 Vac
0~100% Load for 190 ~ 300 Vac
Input Frequency (Hz)
50 ± 10
60 ± 10
Input Frequency Detection
Auto-sensing
Rated Input Current (A)
7.5
Input Power Factor
0.99
Input Connector Type
IEC C14
Detachable Power Cord Plug Type
IEC C13

OUTPUT

Capacity (VA)
1500
Capacity (Watts)
1350
On Battery Waveform
Pure Sine Wave
On Battery Voltage(s) (Vac)
200 ± 2%
208 ± 2%
220 ± 2%
230 ± 2%
240 ± 2%
Output Voltage Setting
Configurable
On Battery Frequency (Hz)
50 ± 0.5%
60 ± 0.5%
Output Frequency Setting
Configurable
ECO Mode Voltage Tolerance
± 10 %
± 15 %
Overload Protection
Internal Current Limiting , Circuit Breaker
Overload Protection (Line Mode)
105~125% Load for 1 min, 125~150% Load for 10 sec
Overload Protection (Battery Mode)
105~130% Load for 10 sec, 130~150% Load for 2 sec
Overload Protection (Bypass Mode)
Circuit Breaker
Crest Factor
3 : 1
Harmonic Distortion (Linear Load)
THD<3%
Harmonic Distortion (Non-linear Load)
THD<5%
Internal Bypass
Automatic Bypass , Manual Bypass
Outlet(s) - Total
8
Outlet Type
IEC C13 x 8
Outlet(s) - Battery & Surge Protected
8
Outlet(s) - Critical Load (CL)
4
Outlet(s) - Non-Critical Load (NCL)
4
Typical Transfer Time (ms)
0

BATTERY

Runtime at Half Load (min)
9
Runtime at Full Load (min)
3
Typical Recharge Time (Hours)
5
Start On Battery
Yes
Smart Battery Management (SBM)
Yes
User Replaceable
Yes
Hot-Swappable
Yes
Battery Type
Sealed Lead-acid
Replacement Battery Pack
RBP0074
RBP Quantity (pcs)
1
Battery Quantity (Each RBP) (pcs)
3
Battery Voltage (Each RBP) (V)
36
Single Battery Capacity (AH)
12 V 9 AH
Extended Battery Module (EBM)
BPE36V60ART2US
Max. EBM Quantity (pcs)
10

SURGE PROTECTION & FILTERING

Surge Suppression (Joules)
1780
EMI/RFI Filtration
Yes
Phone/Network Protection RJ11/RJ45 (Combo)
1-in, 1-out

MANAGEMENT & COMMUNICATIONS

LCD Panel
Yes
Detachable LCD Panel
Yes
LCD Information Display
Operation Type , Power Status , Battery Status , Load Status , Fault & Warning , Other Information , Event & Log
LCD Setting & Control
Mode Setting , Alarm Setting , Input & Output , Battery Setting , Fault & Warning , Communication , Event & Log , Security Setting , Language
LED Indicators
Power On , Line Mode , Battery Mode , Bypass Mode , Battery Capacity , Low Battery , Overload , UPS Fault , Wiring Fault , Replace Battery
HID Compliant USB Port(s)
1
Serial Port
Combo (RS232 + Dry Contact)
Dry Contact (with Relay)
Yes
Emergency Power Off (EPO) Port
Yes
Audible Alarms
Battery Mode , Low Battery , Overload , Overcharge , Overheat , UPS Fault , Replace Battery
Power Management Software
PowerPanel® Business Edition
SNMP / HTTP Remote Monitoring
Yes - with optional RMCARD205

PHYSICAL

Form Factor
Rack/Tower
Enclosure Construction
Metal
Color
Black
Rackmount Rail
Yes
Rackmount Ears
Yes

PHYSICAL SIZE - UPS MODULE

Dimensions (WxHxD) (mm.)
433 x 88 x 430
Weight (kg.)
18
Installed Rack Height (U)
2

SHIPPING DIMENSIONS

Dimensions (WxHxD) (mm.)
575 x 240 x 550
Weight (kg.)
24.5

ENVIRONMENTAL

Operating Temperature (°C)
0 ~ 40
Operating Relative Humidity (Non-condensing) (%)
0 ~ 90
Operating Elevation (feet/meters)
0-10,000 feet (0-3,000 meters)
Storage Temperature (°C)
-15 ~ 45
Storage Relative Humidity (Non-condensing) (%)
0 ~ 95
Online Thermal Dissipation (BTU/hr)
512

CERTIFICATIONS

Certifications
CE , BSMI , C-Tick
RoHS
Yes

WARRANTY

Product Warranty Period (Year) 2 Battery Warranty Period (Year) 2
