Description
Overview

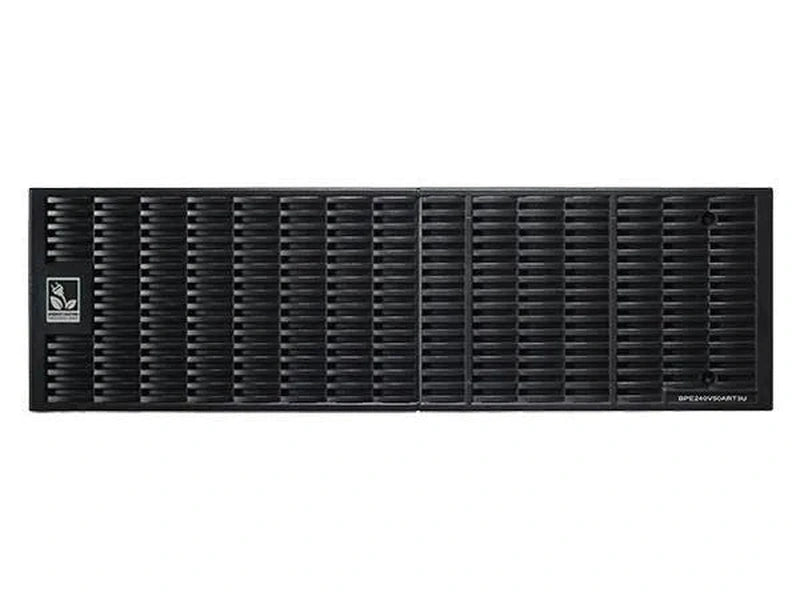

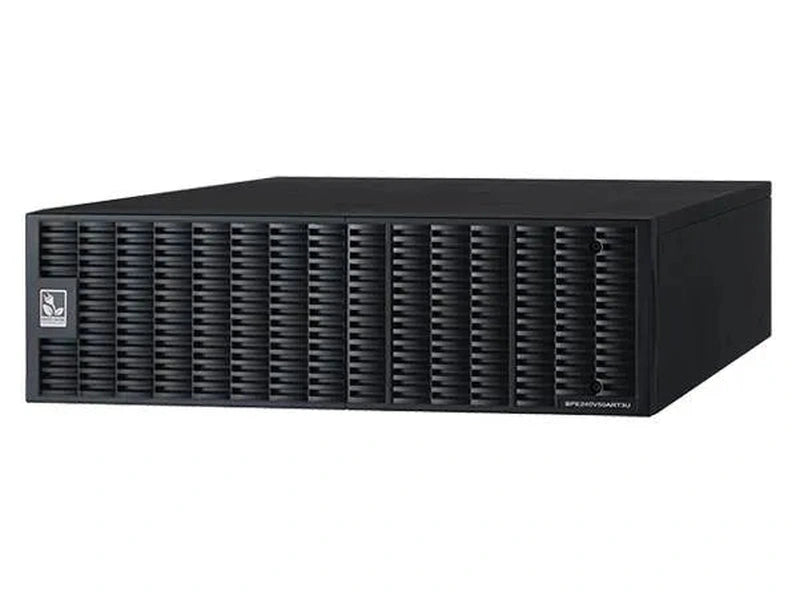

The CyberPower’s BP240V50ART3U Battery Pack significantly extends runtime during power outages for Smart App Online 8/10K RT models.
The BP240V50ART3U external battery pack houses twenty (20) 12V 9Ah batteries, connected serially in one (1) string of twenty (20) batteries. It is designed to match the appearance of the Smart App Online UPS RT models and can be similarly mounted in 3U rack or tower configurations.
A battery data link transmits the unit's diagnostic vitals to the UPS display for real-time monitoring; the heavy gauge power cord, adapted with plug-n-play DC connectors, permits the battery pack to be easily "hot-swapped", ensuring continuous operation of critical systems during normal UPS maintenance.
Rugged, industrial-grade metal construction - meeting the same standards as the UPS models - allows for installation in demanding environments.
Up to 10 battery packs can be daisy-chained to the UPS for extended runtimes.
The CyberPower’s BP240V50ART3U Battery Pack significantly extends runtime during power outages for Smart App Online 8/10K RT models.
The BP240V50ART3U external battery pack houses twenty (20) 12V 9Ah batteries, connected serially in one (1) string of twenty (20) batteries. It is designed to match the appearance of the Smart App Online UPS RT models and can be similarly mounted in 3U rack or tower configurations.
A battery data link transmits the unit's diagnostic vitals to the UPS display for real-time monitoring; the heavy gauge power cord, adapted with plug-n-play DC connectors, permits the battery pack to be easily "hot-swapped", ensuring continuous operation of critical systems during normal UPS maintenance.
Rugged, industrial-grade metal construction - meeting the same standards as the UPS models - allows for installation in demanding environments.
Up to 10 battery packs can be daisy-chained to the UPS for extended runtimes.
Battery | |
---|---|
Battery Type | Sealed Lead-Acid |
Battery Size | 12V / 9AH |
Battery Number | BB/HR9-12FR |
Battery Quantity | 20 pcs |
User Replaceable | Yes |
Hot-swappable | Yes |
Typical Recharge Time | 4 Hours |
Built-in Charger | Yes |
Expansion Ready (Daisy-chain) | Yes – Power plugs for Module |
Replacement Battery Pack | RBP0072 |
Replacement Battery Pack Quantity | 2 pcs |
Voltage | 240V |
Amperage | 50A |
Physical | |
Dimensions (WxHxD) | 17 x 5.25 x 26 in / 433 x 132 x 660 mm |
Weight | 171.6 lbs / 78 kg |
Enclosure Construction | Steel |
Mounting Hardware Included | Yes |
Environmental | |
Operating Temperature | 32 ~ 104 °F / 0 ~ 40 °C |
Operating Humidity | 0% ~ 90% (Non-condensing) |
Operating Elevation | 0 ~ 10,000 ft / 0 ~ 3,000 m |
Storage Temperature | 5 ~ 113 °F / -15 ~ 45 °C |
Storage Relative Humidity | 0% ~ 95% (Non-condensing) |
Storage Elevation | 0 ~ 50,000 ft / 0 ~ 15,000 m |
