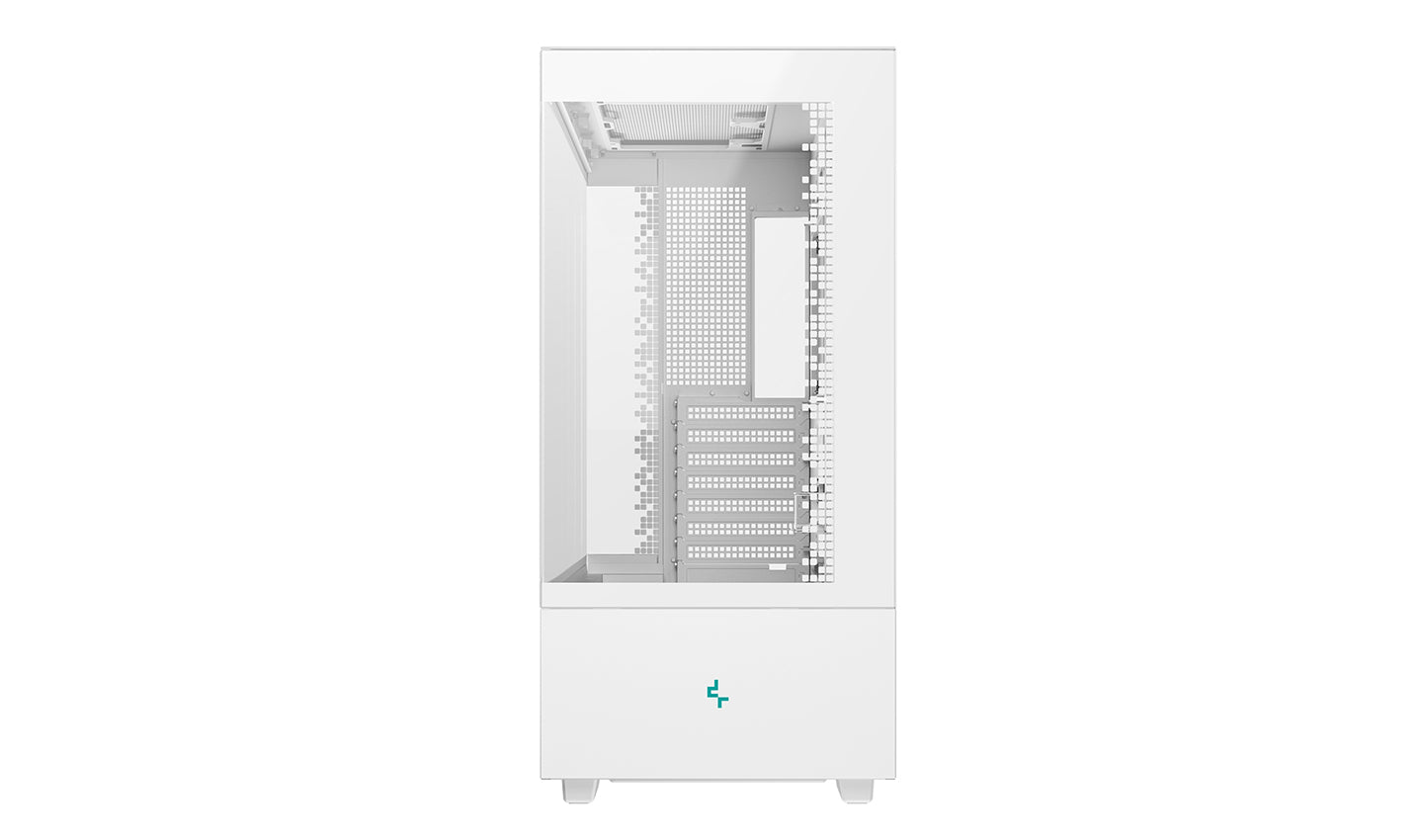

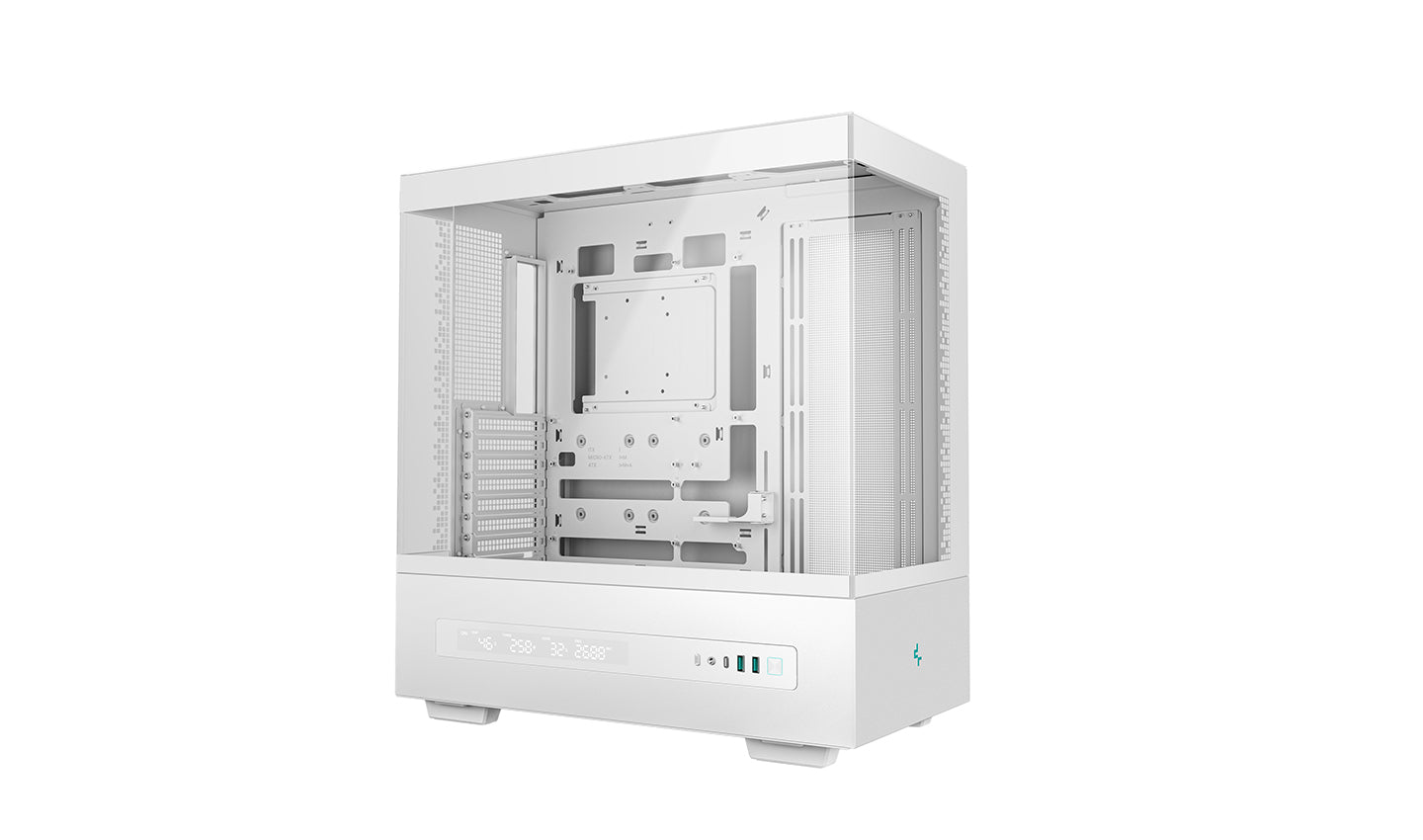

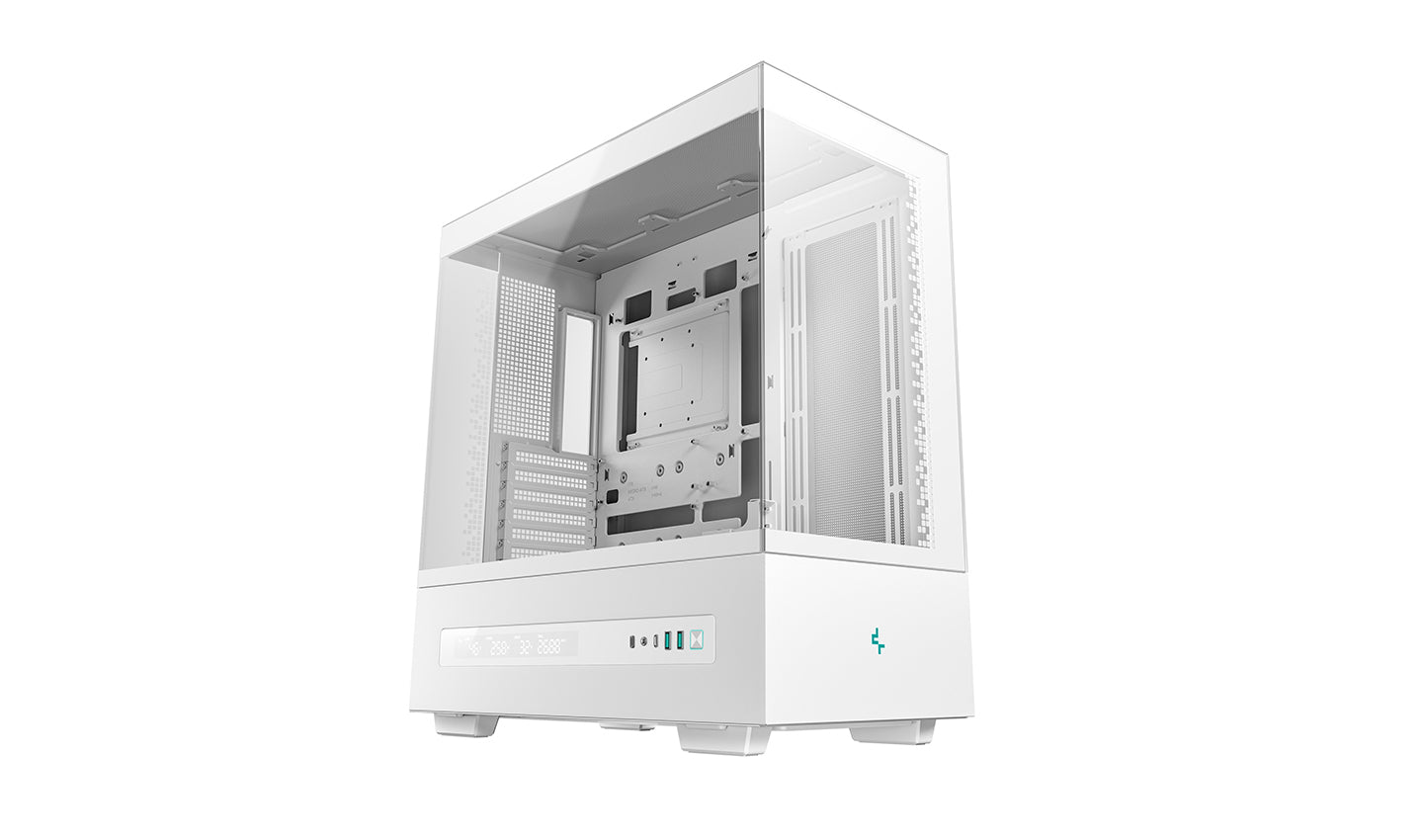

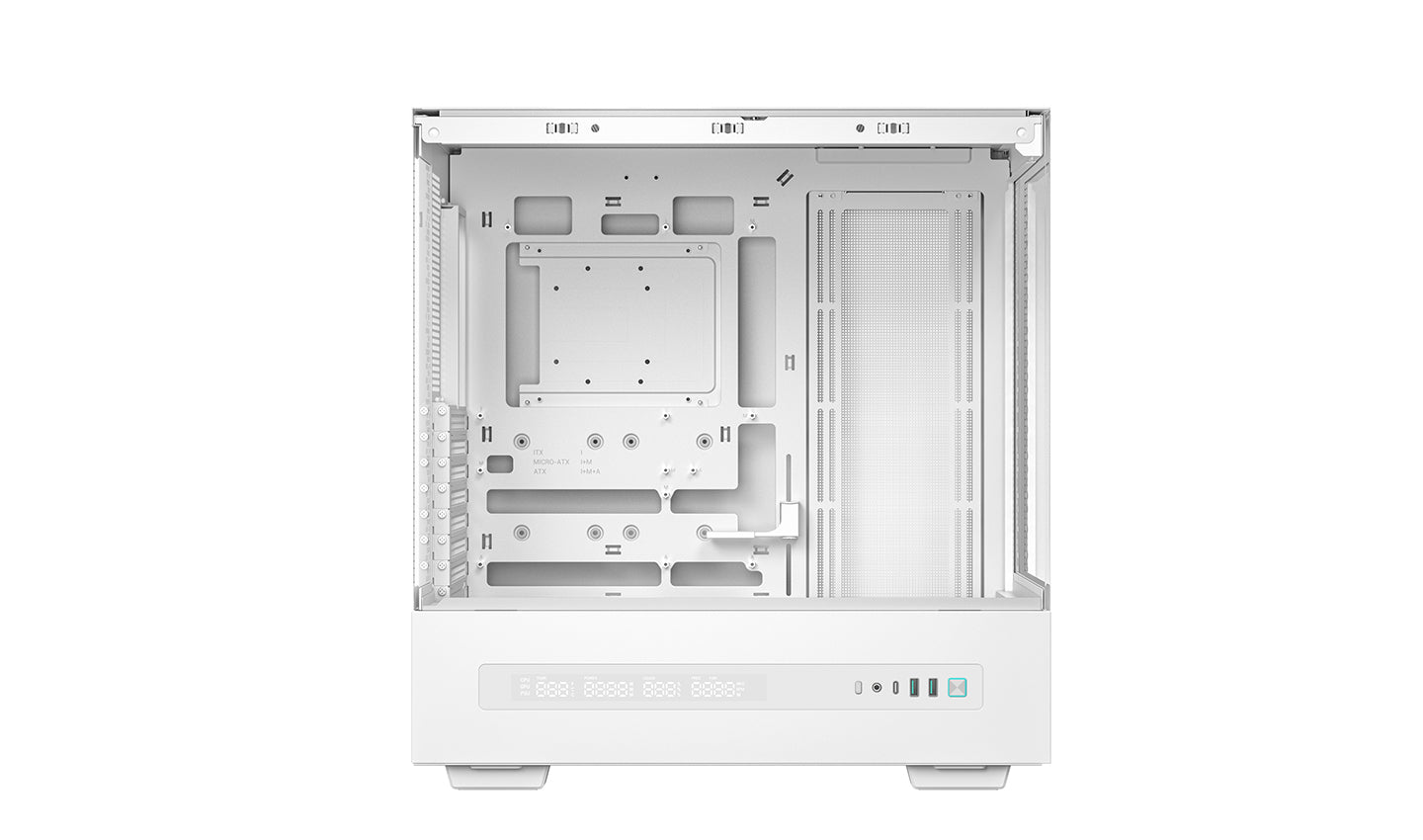

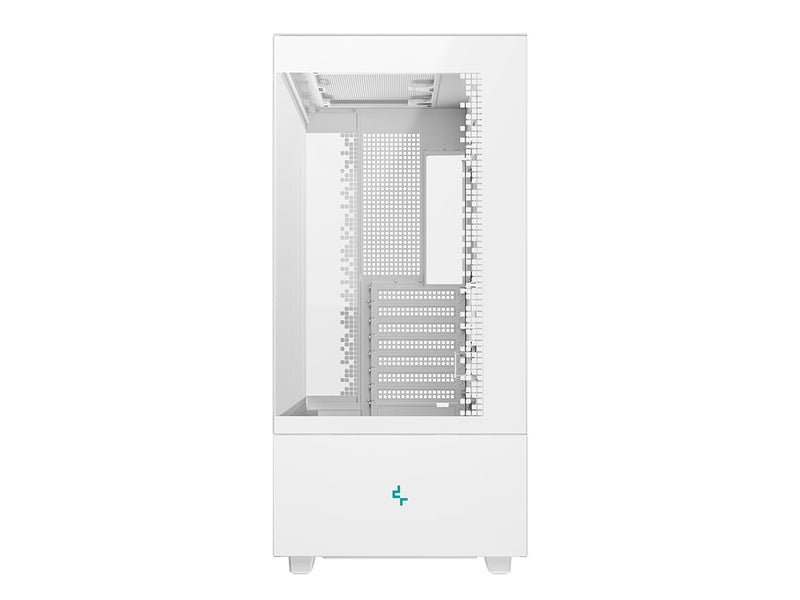

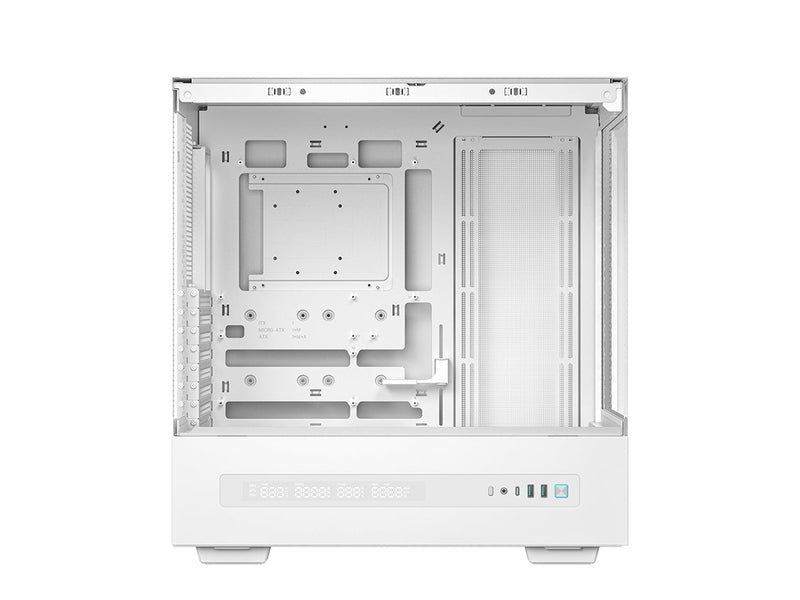

CH690 DIGITAL WH
The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
CH690 DIGITAL WH
The CH690 DIGITAL WH is designed with beauty and adaptability in mind, featuring a semi-glass panel that offers an expansive view of installed components. For those seeking enhanced performance, the rear of the case supports DIY modifications, allowing users to replace the semi-glass panel with a mesh panel and fan bracket to boost horizontal airflow. Additionally, the integrated light strip slot enables the addition of light strips to create an immersive gaming atmosphere, blending aesthetics with functionality for a truly personalized setup.
| DeepCool CH690 DIGITAL WH – Technical Specifications | |
|---|---|
| Product Dimensions (L × W × H) | 481 × 240 × 516 mm |
| Net Weight | 9.8 kg |
| Materials | ABS, SPCC, Tempered Glass |
| Motherboard Support | Mini-ITX, Micro-ATX, ATX (Rear Connector) |
| Front I/O Ports | USB 3.0 × 2, Gen2 Type-C × 1, Audio/Mic × 1 |
| 3.5" Drive Bays | 2 |
| 2.5" Drive Bays | 2 + 1 |
| Expansion Slots | 8 Slots |
| Pre-Installed Fans | None |
| Fan Support | Top: 3 × 120 mm / 3 × 140 mm Side: 3 × 120 mm / 3 × 140 mm PSU Shrouded: 3 × 120 mm / 3 × 140 mm Rear: 1 × 120 mm / 1 × 140 mm |
| Radiator Support | Top: 120 / 140 / 240 / 280 / 360 / 420 mm Side: 120 / 140 / 240 / 280 mm Bottom: 120 / 240 / 360 mm |
| CPU Cooler Height Limit | 182 mm |
| GPU Length Limit | 450 mm |
| Power Supply Type | ATX PS2 (max length: 180 mm) |
| EAN | 6933412774020 |
| Part Number | R-CH690-WHNNA0D-G-1 |
