Overview

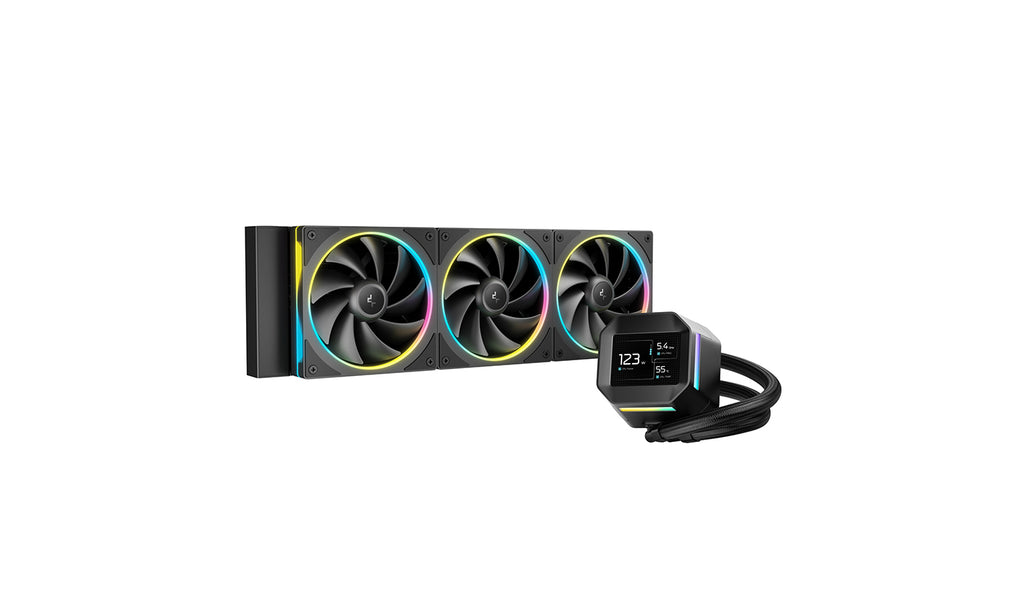

LM360
The LM series brings a fresh update to liquid cooling with a compact 2.4" IPS display that now supports MP4 video playback for a more dynamic screen experience. Cooling performance is refined with an upgraded pump for better efficiency and quieter operation.
CLEANLY FOCUSED 2.4" LCD
See more from any angle with the 2.4" IPS display. A 320×240 resolution ensures crisp visuals, while enhanced color accuracy and screen stability deliver consistent clarity throughout. The soft perimeter lighting adding structured contrast to the minimal design.
DeepCreative: THE CONTROL CENTER
Take full control of your LM cooler with DeepCreative software. Monitor essential system information in real time, personalize the screen display, or switch to Zen Mode for a distraction-free experience when performance matters most. Screen brightness and display orientation can also be adjusted to suit your setup.
GEN 6 WATER PUMP WITH PWM CONTROL
The LM360 WH features DeepCool's newly developed 6th-generation pump, engineered for greater thermal efficiency and quieter performance on today's high-end CPUs. A 3-phase, 6-slot, 4-pole motor with FOC control powers the pump from 2,500 to 3,400 RPM with precision and stability.
EFFICIENCY IN MOTION
Equipped with a long-life hydraulic bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.
ANTI-LEAK TECHNOLOGY
DeepCool’s patented Anti-Leak Technology helps maintain internal pressure balance within the liquid cooling system. A built-in valve releases excess pressure once it exceeds ambient levels, reducing the risk of leakage and improving long-term operational stability.
SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LM360 WH to the latest mainstream CPUs is included in the box, so you are ready to go.
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
LM360
The LM series brings a fresh update to liquid cooling with a compact 2.4" IPS display that now supports MP4 video playback for a more dynamic screen experience. Cooling performance is refined with an upgraded pump for better efficiency and quieter operation.
CLEANLY FOCUSED 2.4" LCD
See more from any angle with the 2.4" IPS display. A 320×240 resolution ensures crisp visuals, while enhanced color accuracy and screen stability deliver consistent clarity throughout. The soft perimeter lighting adding structured contrast to the minimal design.
DeepCreative: THE CONTROL CENTER
Take full control of your LM cooler with DeepCreative software. Monitor essential system information in real time, personalize the screen display, or switch to Zen Mode for a distraction-free experience when performance matters most. Screen brightness and display orientation can also be adjusted to suit your setup.

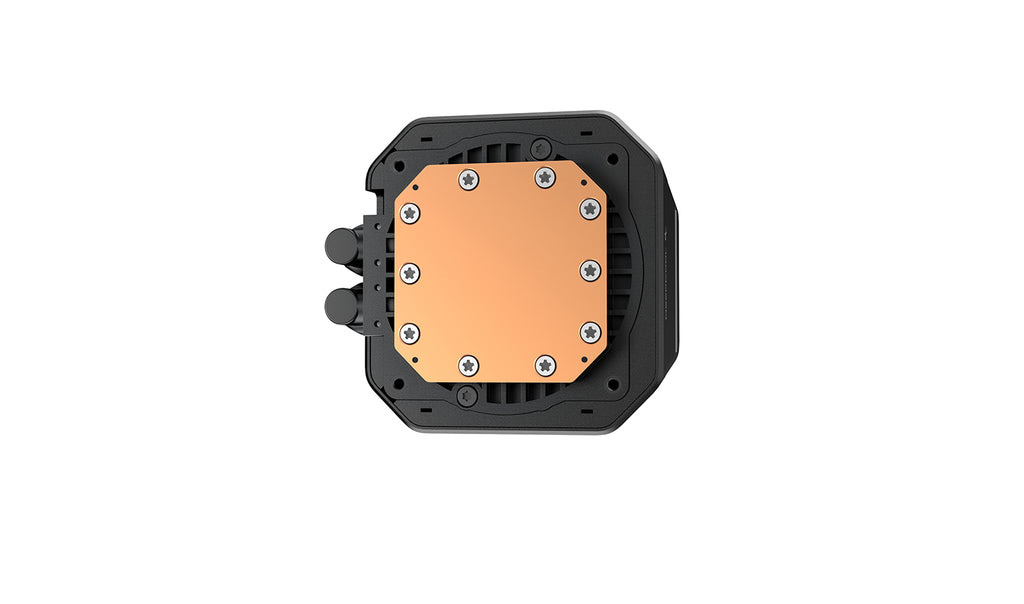

GEN 6 WATER PUMP WITH PWM CONTROL
The LM360 WH features DeepCool's newly developed 6th-generation pump, engineered for greater thermal efficiency and quieter performance on today's high-end CPUs. A 3-phase, 6-slot, 4-pole motor with FOC control powers the pump from 2,500 to 3,400 RPM with precision and stability.
EFFICIENCY IN MOTION
Equipped with a long-life hydraulic bearing, the included FL12 SE fans delivering steady airflow and reliable cooling over long-term use. Distinctive lighting effects bring vivid colors to every edge, working in harmony with your system’s lighting setup.
ANTI-LEAK TECHNOLOGY
DeepCool’s patented Anti-Leak Technology helps maintain internal pressure balance within the liquid cooling system. A built-in valve releases excess pressure once it exceeds ambient levels, reducing the risk of leakage and improving long-term operational stability.

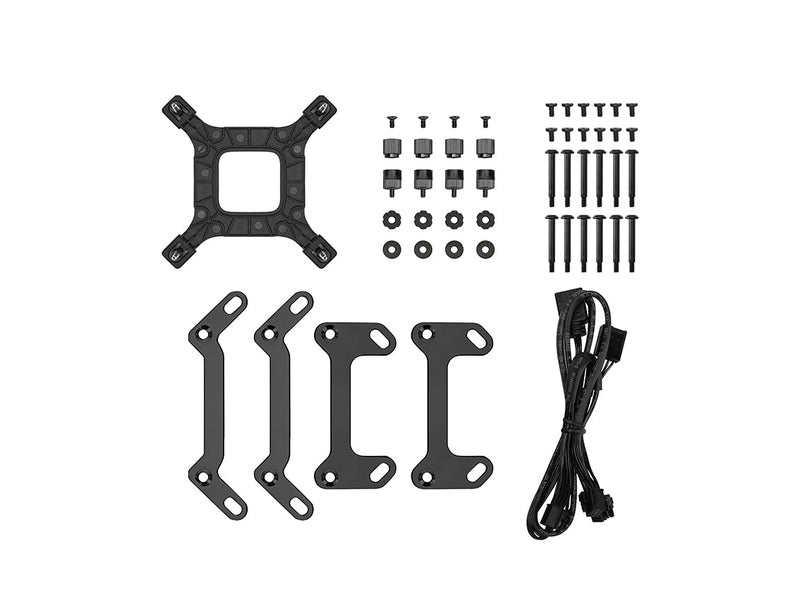

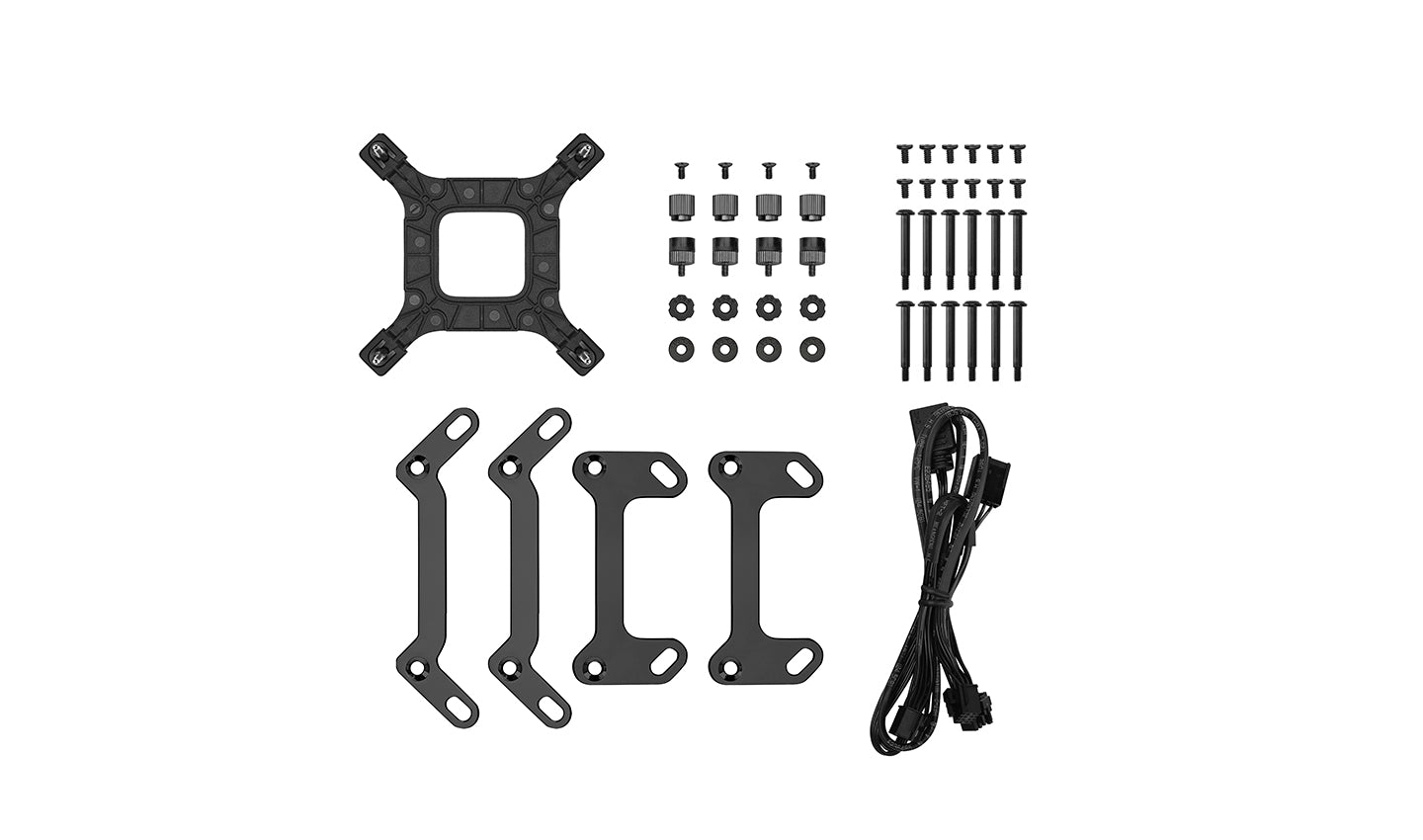

SIMPLIFIED INSTALLATION
The included mounting hardware provides an easy installation process that ensures proper contact and equal pressure on both Intel and AMD platforms. Everything needed to mount the LM360 WH to the latest mainstream CPUs is included in the box, so you are ready to go.
Application For
Intel
LGA1851/1700/1200/1151/1150/1155
AMD
AM5/AM4
| DeepCool R-LM360-BKDMMC-1 – Technical Specifications | |
|---|---|
| Net Weight | 1729 g |
| Radiator Dimensions | 402×120×27 mm (L×W×H) |
| Radiator Material | Aluminum |
| Tube Length | 410 mm |
| Pump Dimensions | 90×80×63 mm (L×W×H) |
| Pump Speed | 2500~3400 RPM ±10% |
| Pump Connector | 4-pin PWM |
| Pump Rated Voltage | 12 VDC |
| Pump Rated Current | 0.29 A |
| Pump Power Consumption | 3.48 W |
| Fan Dimensions | 120×120×25 mm (L×W×H) |
| Fan Speed | 400~2400 RPM ±10% |
| Fan Airflow | 66.23 CFM |
| Fan Air Pressure | 3.27 mmAq |
| Fan Noise | ≤36.07 dB(A) |
| Fan Connector | 4-pin PWM |
| Bearing Type | Hydro Bearing |
| Fan Rated Voltage | 12 VDC |
| Fan Rated Current | 0.18 A |
| Fan Power Consumption | 2.16 W |
| LED Type | Addressable RGB LED |
| LED Connector | 3-pin (+5V-D-G) |
| LED Rated Voltage | 5 VDC |
| LED Power Consumption | 1.5 W (Pump) / 3.5 W (Fan ×3) |
| EAN | 6933412729471 |
| Part Number (P/N) | R-LM360-BKDMMC-1 |
