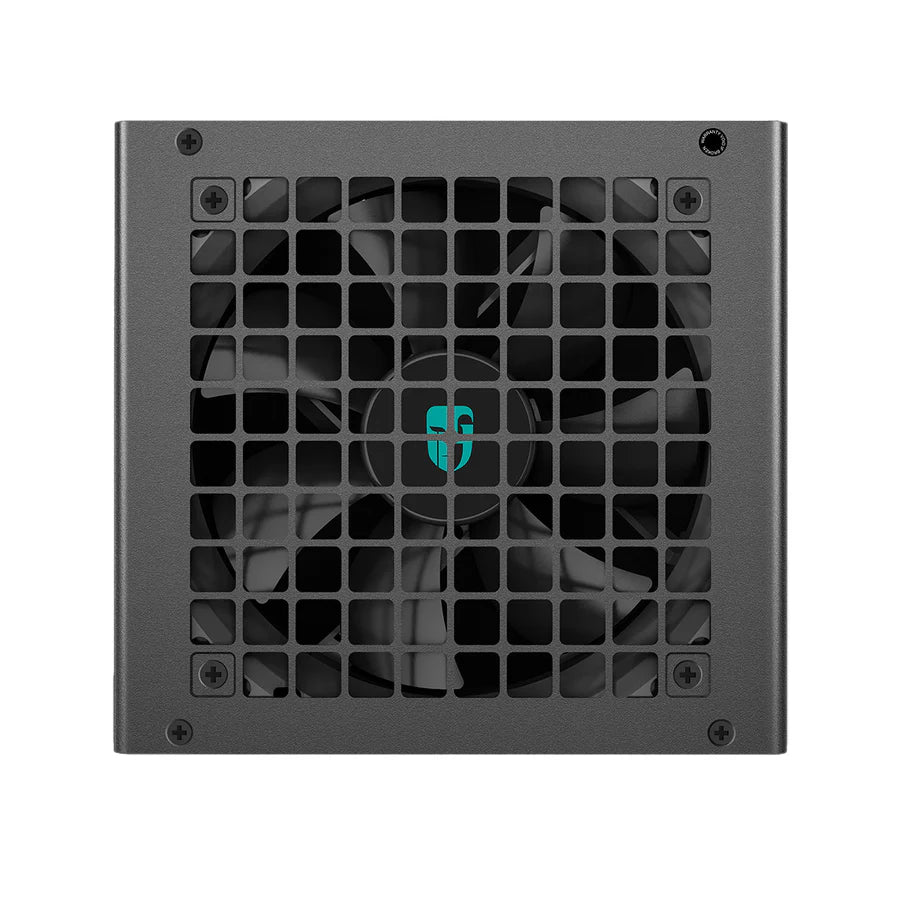

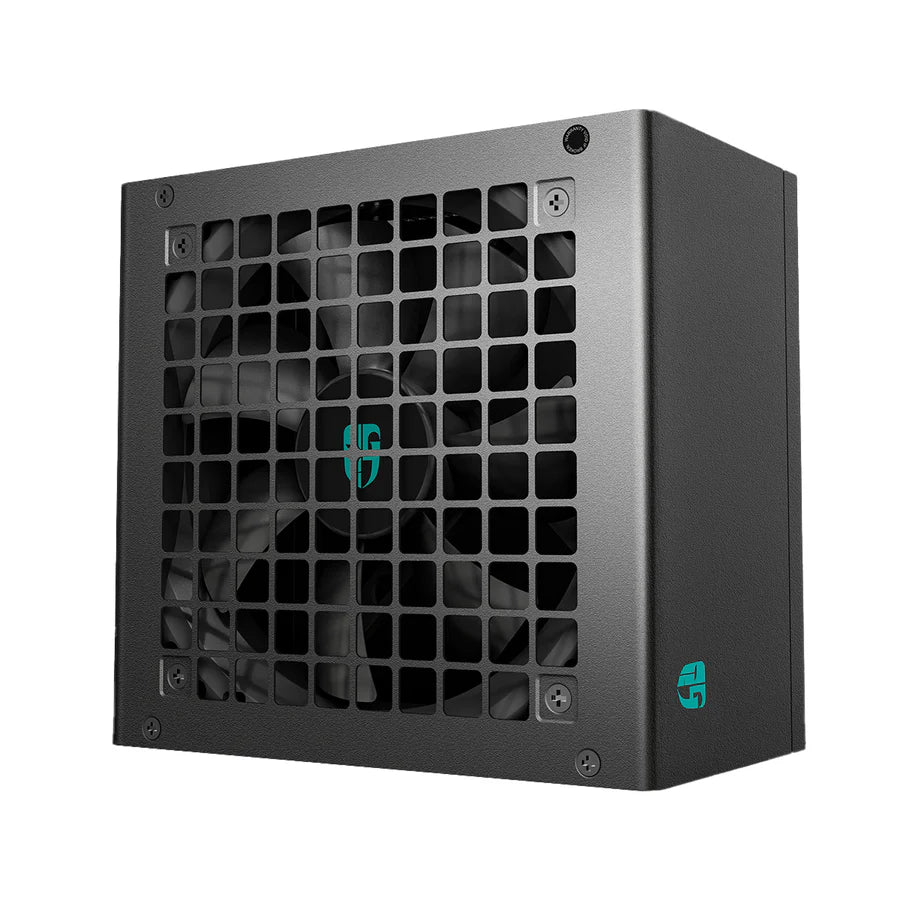

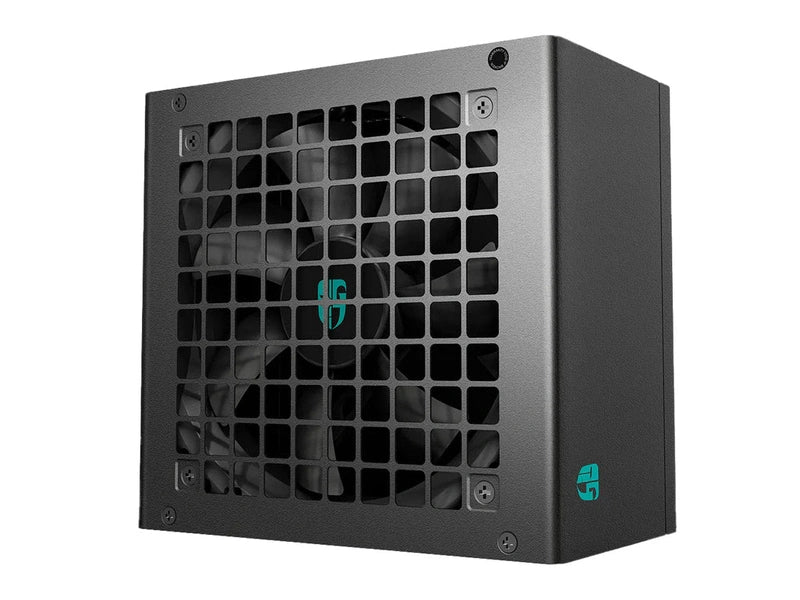

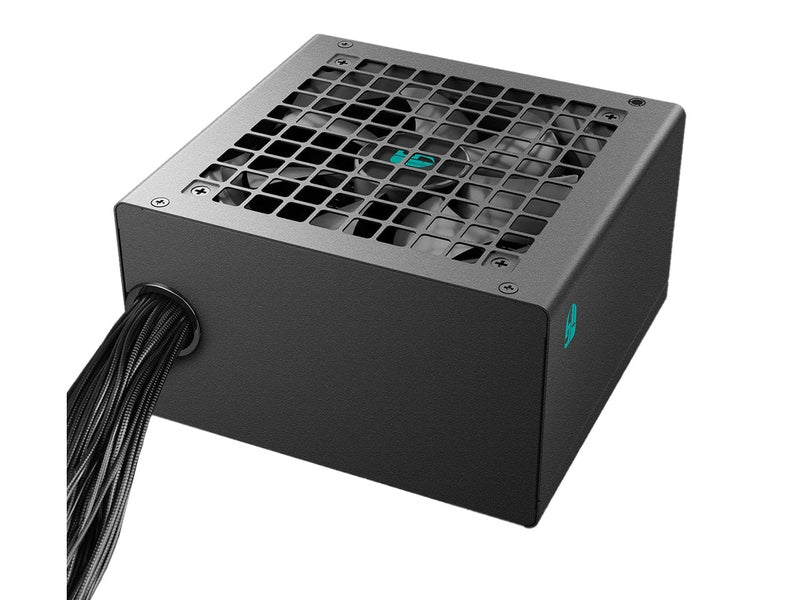

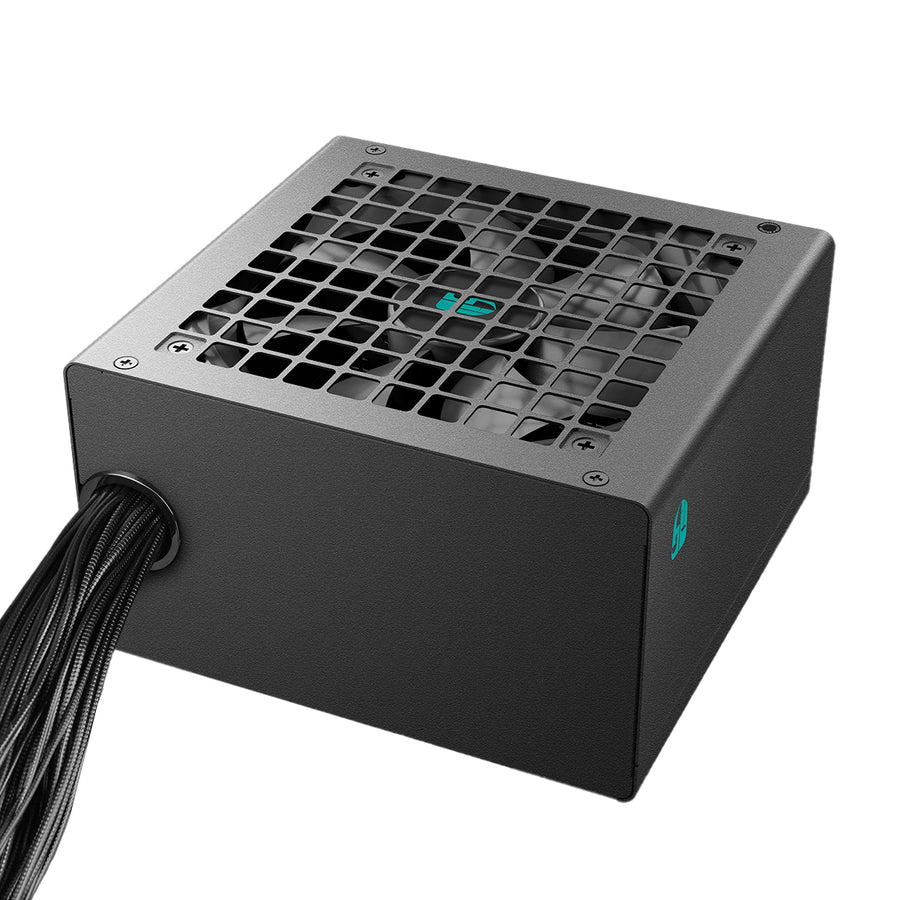

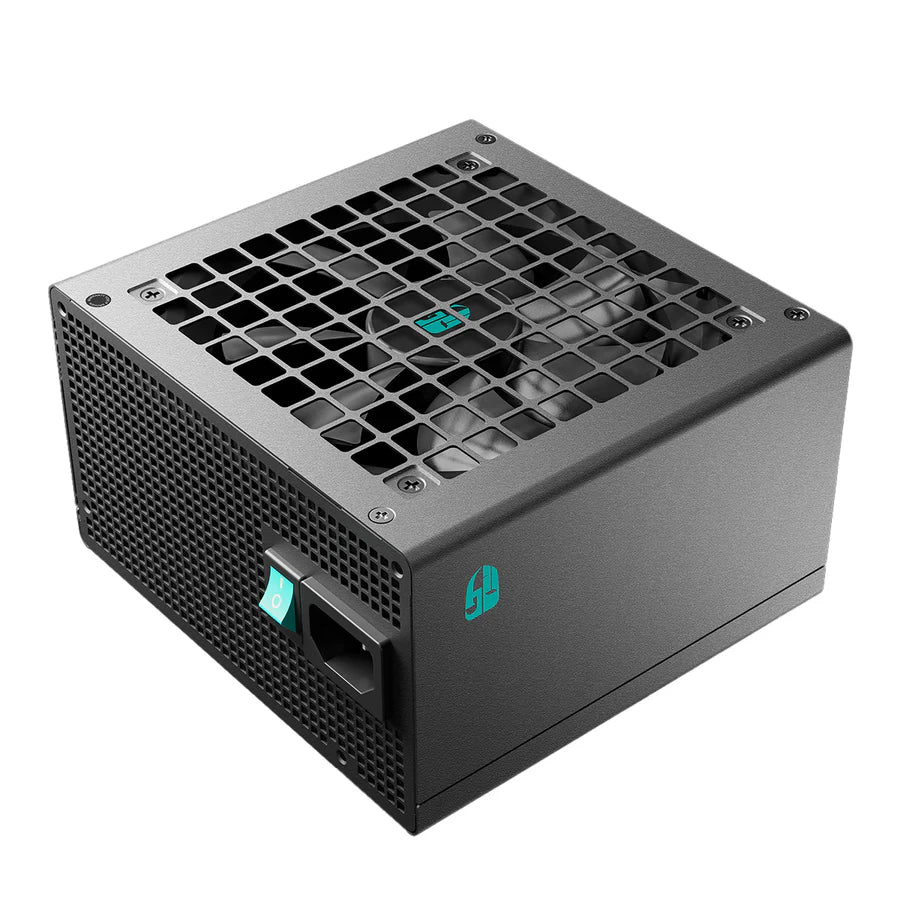

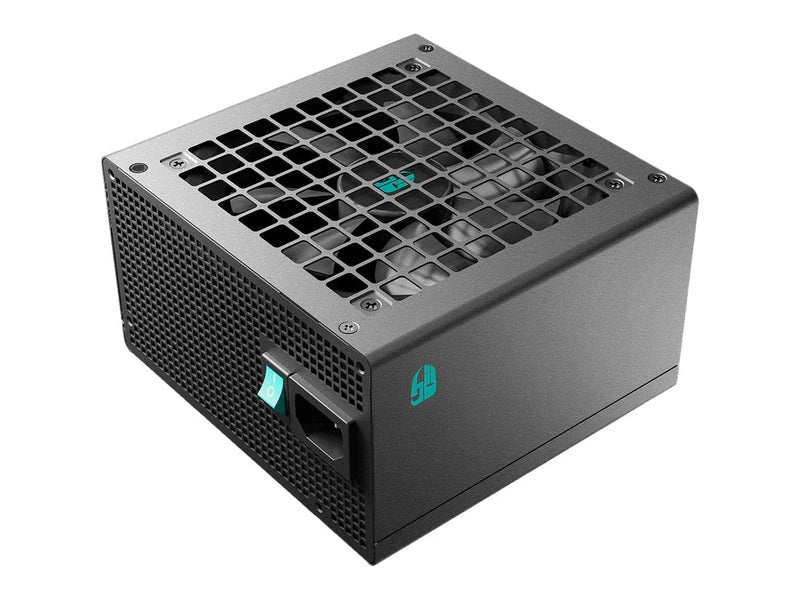

DeepCool PF500X 500W ATX Power Supply
The DeepCool PF500X (Model: R-PF500X-HD0B-JGAU) is a robust 500W ATX power supply designed to deliver stable power with high efficiency and long-term reliability. Certified with 80PLUS BronzeCybenetics Bronze & A (230V), it achieves up to 88% efficiency under typical loads, reducing heat and energy loss. Built with Taiwanese and Japanese electrolytic capacitors, the PF500X ensures consistent voltage regulation and a hold-up time of ≥16ms at 75% load. The unit uses an Active PFC + DC-to-DC topology and is cooled by a 120mm HYB bearing fan for quiet operation. With a full set of sleeved cables and multiple protection circuits, it’s a dependable choice for mainstream systems.
DeepCool PF500X 500W ATX Power Supply
The DeepCool PF500X (Model: R-PF500X-HD0B-JGAU) is a robust 500W ATX power supply designed to deliver stable power with high efficiency and long-term reliability. Certified with 80PLUS BronzeCybenetics Bronze & A (230V), it achieves up to 88% efficiency under typical loads, reducing heat and energy loss. Built with Taiwanese and Japanese electrolytic capacitors, the PF500X ensures consistent voltage regulation and a hold-up time of ≥16ms at 75% load. The unit uses an Active PFC + DC-to-DC topology and is cooled by a 120mm HYB bearing fan for quiet operation. With a full set of sleeved cables and multiple protection circuits, it’s a dependable choice for mainstream systems.
| DeepCool PF500X – Technical Specifications | |
|---|---|
| Model | PF500X |
| Part Number | R-PF500X-HD0B-JGAU |
| Rated Power | 500W |
| Form Factor | ATX |
| Standard | ATX12V v2.52 |
| Efficiency Certification | 80PLUS Bronze (230V EU) Cybenetics Bronze Cybenetics A (230V) PPLP Bronze |
| Topology | Active PFC + DC-to-DC |
| Capacitors | Taiwanese + Japanese electrolytic capacitors |
| Fan Size | 120 mm |
| Fan Bearing | HYB (Hydraulic Bearing) |
| Modularity | Non-Modular |
| Connectors | 1 × 24-pin ATX 1 × 8-pin EPS 2 × 6+2-pin PCIe 6 × SATA 2 × Molex |
| Protections | OCP / OVP / UVP / SCP / OTP / OPP |
| Hold-Up Time | ≥16 ms at 75% load |
| Power Good Signal | 100–150 ms |
| Operating Voltage | 100–240V AC |
| Dimensions | 150 × 140 × 86 mm (W × L × H) |
| Color | Black |
