Description
Overview
ENGINEERED
FOR MODERN COMPONENTSWith the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ850G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.
THE GOLD STANDARD
80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ850G unit as Gold as well.
TRUST-WORTHY STABILITY
Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ850G can keep the hold-up time to ≥ 16 ms under a 100% full load—a higher standard than required to meet ATX3.1 compliance.
PCI-E 5.1 PERFECTION
Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2x6 cable, the PQ850G provides up to 600W for modern GPUs.
DYNAMIC FDB FAN
The PQ850G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.
EXCEPTIONAL QUALITY
Due to the high quality of the parts utilized, every PQ-G power supply will operate at altitudes up to 5000 meters above sea level.
COMPACT DESIGN
Coming in at an agreeable 140x150x86mm, the PQ850G can easily fit into the vast majority of cases that support ATX-sized PSUs.
NECESSARY PROTECTIONS
Keep your mind at ease, knowing that the PQ850G comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.
ENGINEERED
FOR MODERN COMPONENTSWith the ability to provide twice the total system power, 2.5 times the 12V CEM peak power, and three times the rated power of the 12V-2x6 cable for 0.1 ms, random power spikes will never be an issue. The PQ850G will provide stable and consistent power for legacy and modern power-hungry PCs for the foreseeable future.
THE GOLD STANDARD
80 Plus Gold certified to meet a 92% high level of power efficiency under typical loads of 50%, while Cybenetics and PPLP also rates each PQ850G unit as Gold as well.
TRUST-WORTHY STABILITY
Through the use of a premium full Japanese electrolytic capacitors, active PFC, half-bridge LLC, and a DC-to-DC topology, the PQ850G can keep the hold-up time to ≥ 16 ms under a 100% full load—a higher standard than required to meet ATX3.1 compliance.
PCI-E 5.1 PERFECTION
Equipped with a high-grade sleeved 105C-resistant 16AWG copper-core 12V-2x6 cable, the PQ850G provides up to 600W for modern GPUs.
DYNAMIC FDB FAN
The PQ850G comes equipped with a dynamic 120mm FDB fan that will adjust its speed based on the cooling needs of the advanced internal circuitry.
EXCEPTIONAL QUALITY
Due to the high quality of the parts utilized, every PQ-G power supply will operate at altitudes up to 5000 meters above sea level.
COMPACT DESIGN
Coming in at an agreeable 140x150x86mm, the PQ850G can easily fit into the vast majority of cases that support ATX-sized PSUs.
NECESSARY PROTECTIONS
Keep your mind at ease, knowing that the PQ850G comes standard with a slew of well-rounded safeguards, including OPP, OVP, SCP, OTP, OCP, UVP, NLO, and SIP.

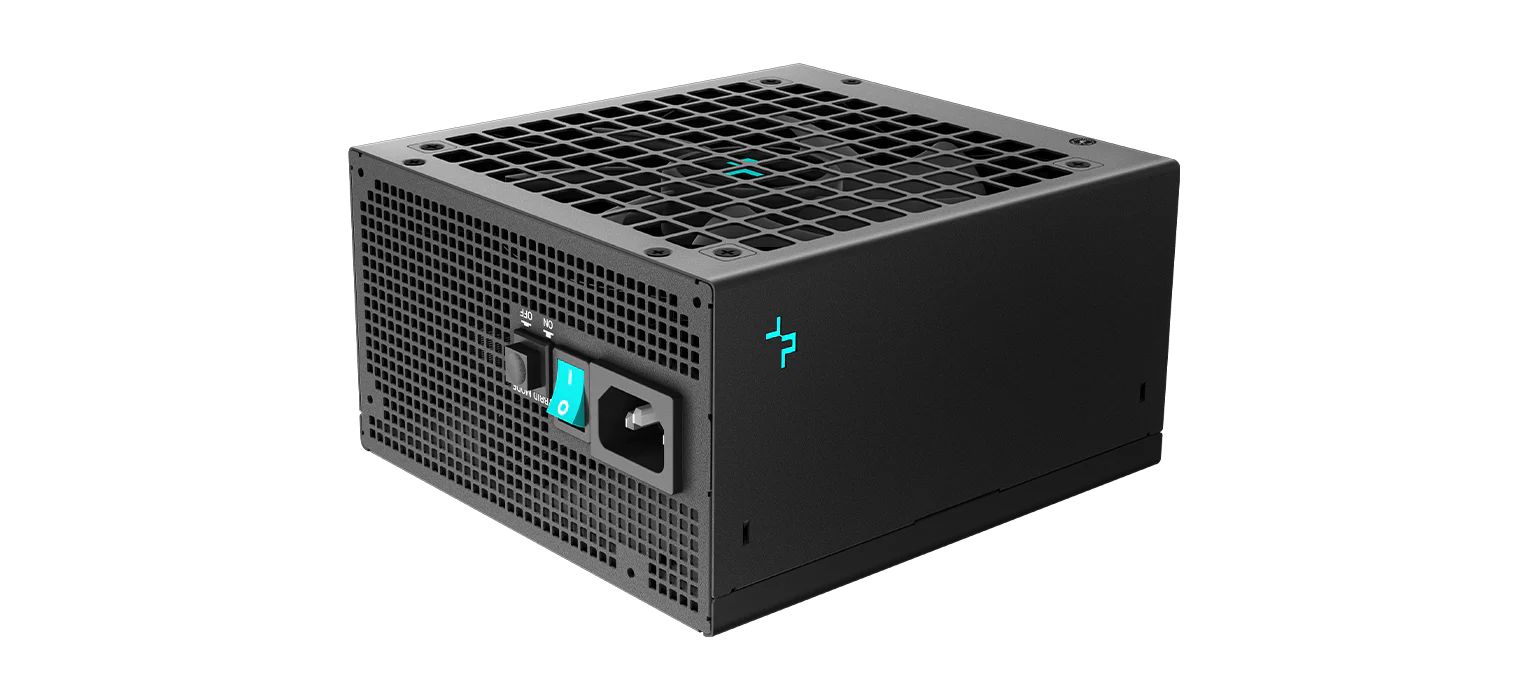

| DeepCool PQ850G 850W Power Supply – Technical Specifications | |
|---|---|
| Total Output | 850W |
| Type | ATX12V V3.1 |
| Product Dimensions | 150×140×86 mm (W × L × H) |
| Efficiency Certification | 80Plus Gold Cybenetics PLATINUM PPLP Gold |
| Fan Size | 120×120×25 mm (W × L × H) |
| Fan Bearing | FDB (Fluid Dynamic Bearing) |
| Topology | Active PFC + Half Bridge SRC LLC + DC to DC |
| Capacitors | Full Japanese Electrolytic Capacitors |
| Power Good Signal | 100–150 ms |
| Hold Up Time | ≥16 ms (Full load) |
| Efficiency | ≥90% Under Typical Load (50% Loading) |
| Protection | OPP / OVP / SCP / OTP / OCP / UVP / SIP / NLO |
| Operation Temperature | 0–40°C |
| Regulatory | EAC |
| ErP Regulation | ErP 2013 |
| Environment Protection | EAC |
| MTBF | 100,000 Hours |
