Description

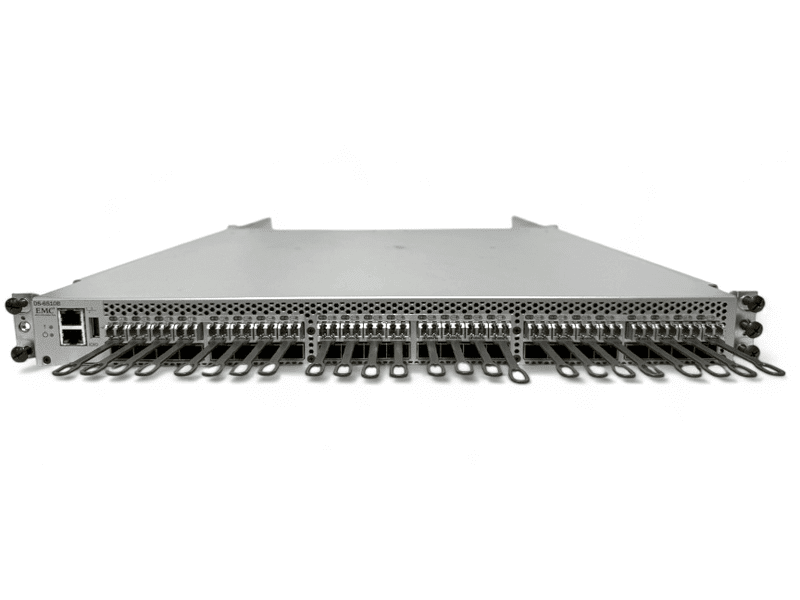

Dell EMC DS-6510B Connectrix Switch
-- Condition --

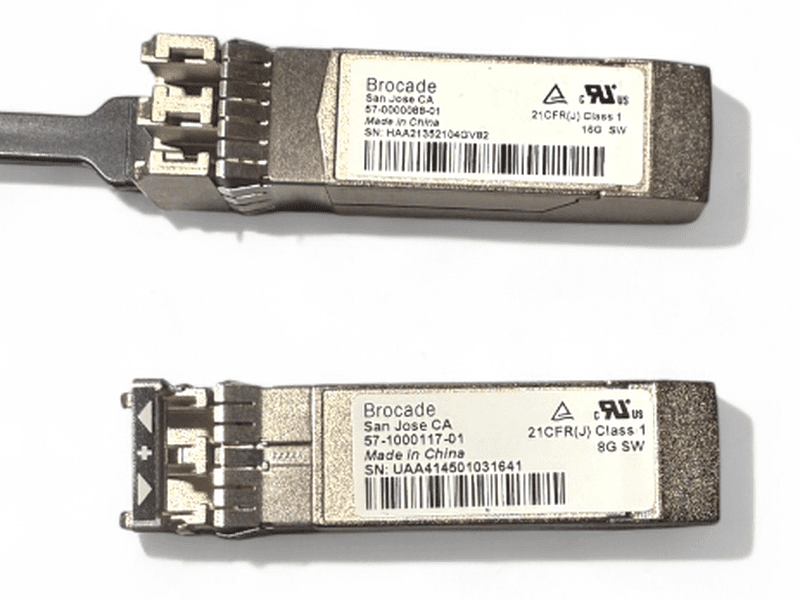

- Come with 24x 16GB + 24x 8GB Transceivers
- Used with 3 months warranty.
- minor scratch

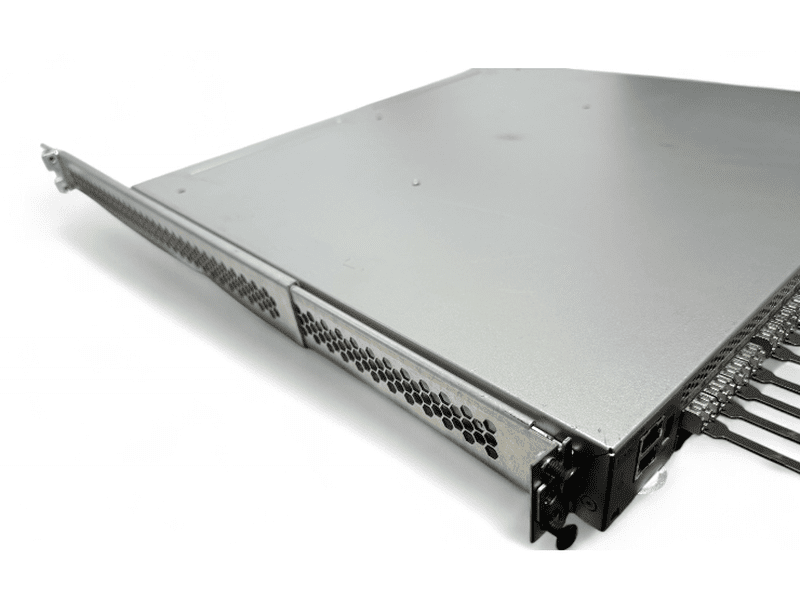

- Rail Kit
- 36 Ports Active licensed

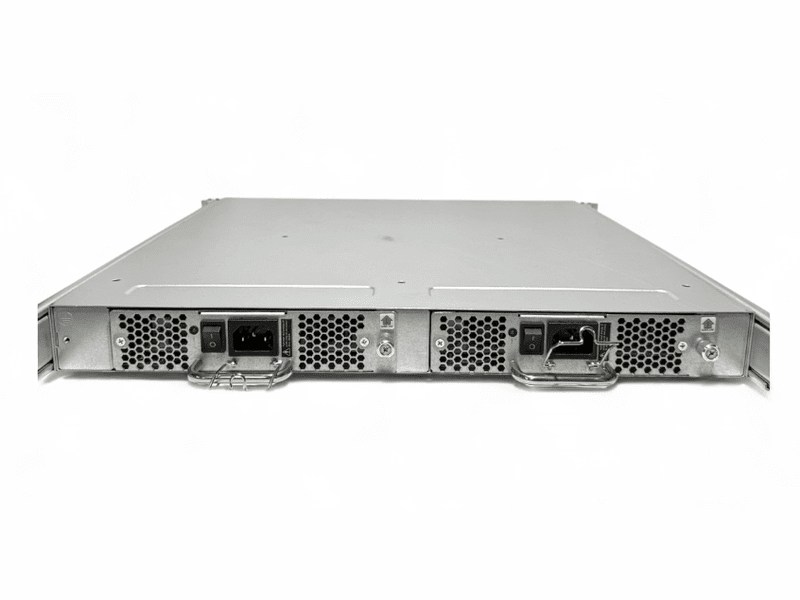

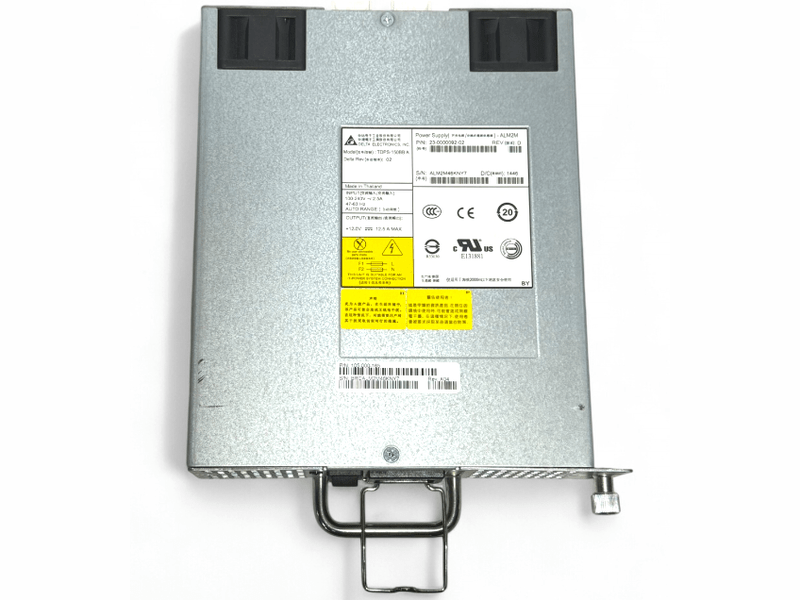

- 2x PSU
The Dell EMC Connectrix DS-6510B is a powerful and scalable 16Gb Fibre Channel SAN switch designed for enterprise-class storage networks requiring high performance, reliability, and flexibility. Developed in collaboration with Brocade (OEM of the Brocade 6510), this switch delivers unmatched throughput and port density in a compact 1U form factor, making it ideal for mission-critical SAN environments.
Key Features:
-
High Port Density: Supports up to 48 auto-sensing 16/8/4 Gbps ports, scalable in 12-port increments via software licenses, enabling pay-as-you-grow flexibility.
-
Enterprise-Class Performance: Delivers up to 768 Gbps aggregate bandwidth, ensuring non-blocking, ultra-low latency data transfers for intensive workloads.
-
Flexible Deployment: Designed for both entry-level and large enterprise SANs, with adaptive networking, ISL trunking, and Fabric Vision technology for simplified management and monitoring.
-
Redundant Components: Hot-swappable redundant power supplies and fans enhance reliability and ensure high availability.
-
Simple Integration: Fully compatible with Dell EMC Connectrix, PowerMax, Unity XT, and other Fibre Channel storage platforms.
-
Advanced Diagnostics: Leverages Brocade Fabric Vision tools for proactive monitoring, diagnostics, and automation to minimize downtime.
-
Compact Design: Efficient 1U rack-mountable chassis with front-to-back airflow supports high-density data center deployments.
Specifications:
Ports | 24–48 SFP+ ports (licensed in 12-port increments) |
Port Speed | Auto-sensing 4, 8, 16 Gbps |
Aggregate Bandwidth | 768 Gbps |
Form Factor | 1U rack-mount |
Power Supply | Dual, hot-swappable, redundant |
Cooling | Hot-swappable fans |
Management | CLI, Web GUI, SNMP, Brocade Network Advisor |
Features | ISL Trunking, NPIV, Virtual Fabrics, QoS |
Fabric OS | Brocade Fabric OS |
Supported Transceivers | 16G/8G/4G SFP+ (shortwave and longwave) |
Dimensions (H x W x D) | Approx. 1.72" x 17.3" x 20.5" (4.37 x 44 x 52 cm) |
Weight | Approx. 6.35 kg (14 lbs) |
