Description

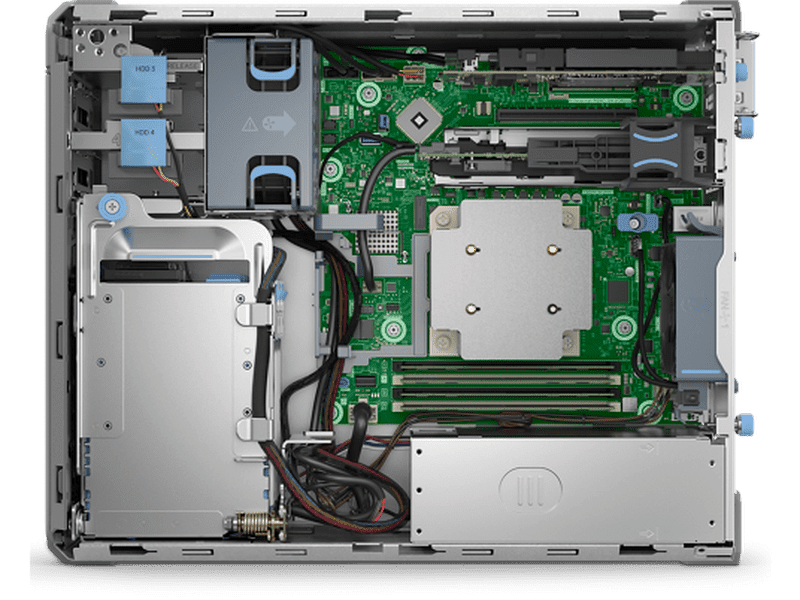

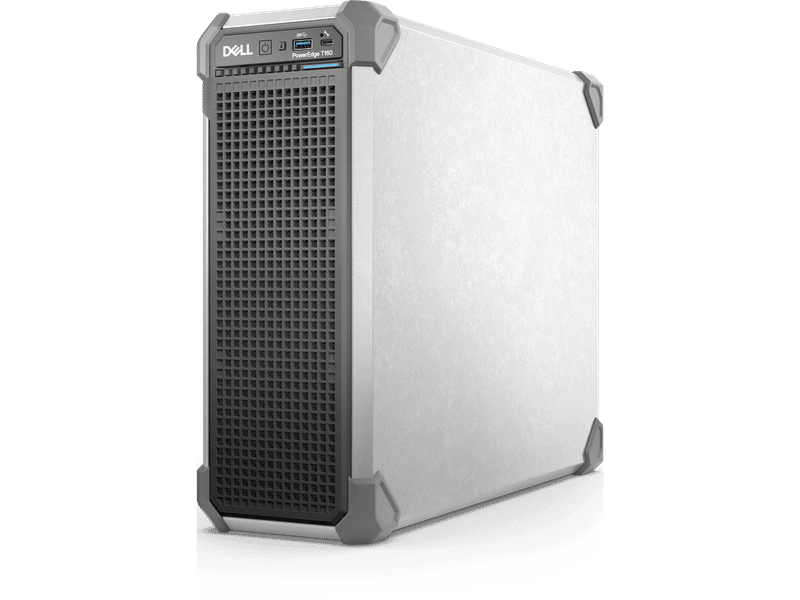

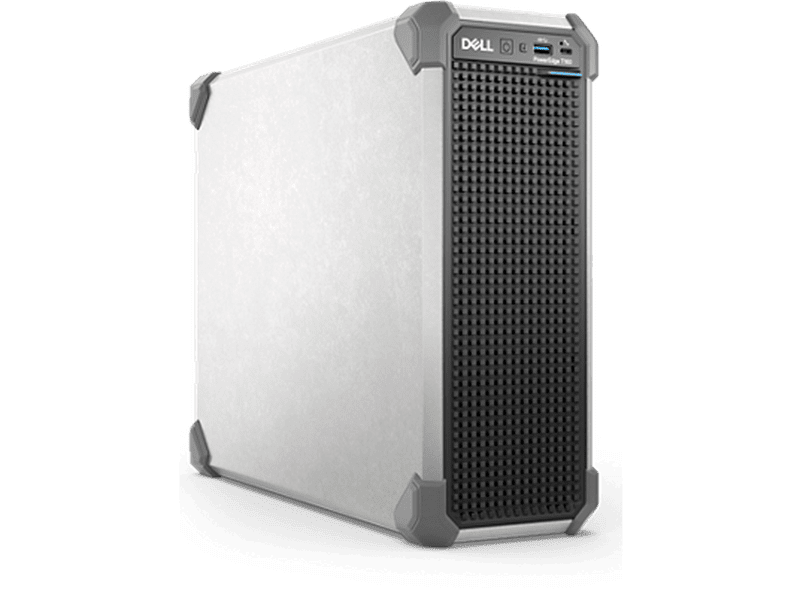

Dell PowerEdge T160 Tower Server (PET16010A)
3U Tower Server for Near-Edge and SMB applications
The single-socket Dell PowerEdge T160 is a small chassis tower server for customers desiring flexibility, affordability and processing power.
Features & Design
PowerEdge T160 tower server resources
PowerEdge T160 Spec Sheet
PowerEdge T160 Technical Guide
PowerEdge Tower Server Quick Reference Guide
Hands On Labs
Innovate where you never thought possible
Your innovation engine
Compact and powerful
Redefine space-saving design without compromising performance.
- Compact chassis with office friendly acoustic performance.
- Easy-to-manage filter bezels shield from dust and grease.
- Enterprise-level server features and capabilities with optimal price and flexible upgrade options.
- Built from recycled material and less chemical usage with unpainted steel.
Systems management and security solutions
OpenManage systems management
Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.
Intelligent automation
Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.
Built-in security
Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
Specifications
| Processor | Intel® Pentium® G7400T • Cores: 2 • Threads: 4 • Base Frequency: 3.1 GHz • Cache: 6 MB • HT (35W) |
| Memory (RAM) | 16 GB DDR5 ECC UDIMM • Configuration: 1 x 16 GB module • Maximum Capacity: Up to 128 GB (4 x 32 GB)• |
| Storage | Front bays: • Up to 3 x 3.5-inch cable SAS/SATA HDD/SSD, max 48 TB • Up to 3 x 3.5-inch + 2 x 2.5-inch cable SAS/SATA HDD/SSD, max 63.36 TB |
| Storage Controllers | Options: • Software RAID: S160 • Internal Controllers: HBA355i Adapter, PERC H355 Adapter, PERC H755 Adapter |
| Expansion Slots | • 1 x PCIe 4.0 x16 • 1 x PCIe 4.0 x4 |
| Network | • 2 x 1 GbE LOM (BCM5720 LAN controller) • Optional NICs available via expansion slots |
| Ports |

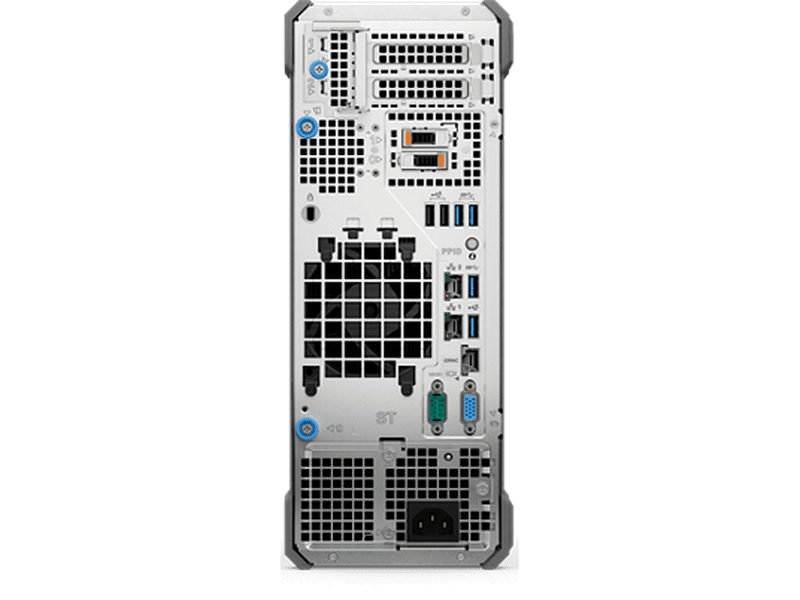

Front: • 1 x USB 3.2 Gen1 • 1 x iDRAC Direct (Micro-AB USB) port Rear: • 1 x Dedicated iDRAC Ethernet port • 3 x USB 3.2 Gen1 • 3 x USB 2.0 • 1 x VGA port • 1 x Serial Port |
| Power Supply | 300 W Bronze 100—240 V AC, cabled |
| Form Factor | 3U Tower |
| Dimensions | • Height: 332.5 mm (13.09 inches) • Width: 132.52 mm (5.21 inches) • Depth: 408.8 mm (16.09 inches) (with bezel) |
| Management | • iDRAC9 with Lifecycle Controller • Optional iDRAC9 Enterprise or Datacenter licenses for advanced features |
| Security | • Secure Boot • Silicon Root of Trust • System Lockdown (requires iDRAC9 Enterprise or Datacenter) • TPM 2.0 (FIPS, CC-TCG certified) • Secured-core server |
| Operating Systems Supported | • Microsoft® Windows Server® with Hyper-V • VMware® ESXi® • Canonical® Ubuntu® Server LTS • RedHat® Enterprise Linux • SUSE® Linux Enterprise Server |
