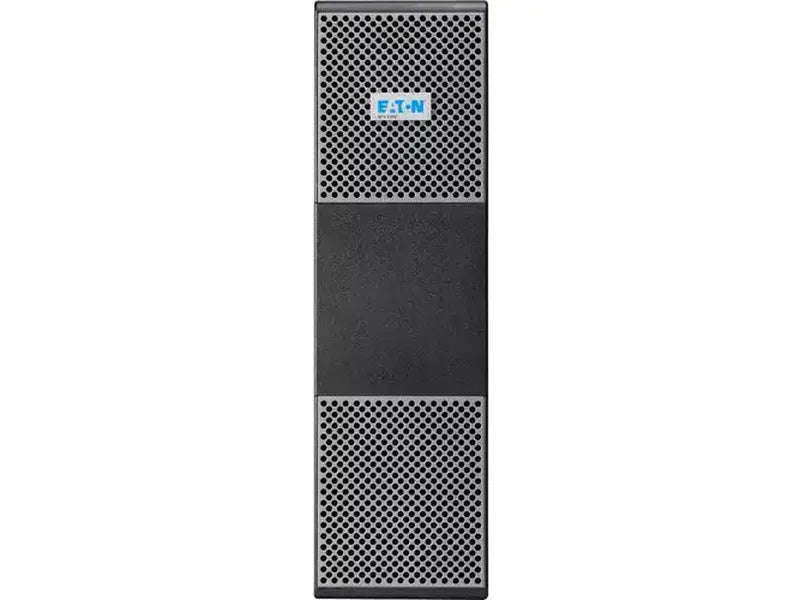

Eaton 9PX External Battery Module (EBM), 9000 mAh, 48 V DC, Lead Acid - Sealed, 1kVA/1.5kVA, 2U Rack/Tower 3YR [9PXEBM48RT2U]
GENERAL SPECIFICATIONS
| Product Name | Eaton 9PX Extended Battery Module (EBM) |
| Catalog Number | 9PXEBM48RT2U |
| UPC | 743172081650 |
| Length/Depth | 44 cm |
| Height | 8.65 cm |
| Width | 45 cm |
| Weight | 29.8 kg |
| Compliances |
CE Marked TUV cULus Listed CSA 22.2 FCC part 15 Class B CISPR22 Class B |
| Certifications |
IEC/EN 62040-1 UL 1778 IEC/EN 62040-2 CE cULus Listed EAC ENERGY STAR certified |
PRODUCT SPECIFICATIONS
| Type | Extended battery module |
| Form Factor | Rack/tower |
| Rack Size | 2U |
| Color | Black/silver |
| Rack Mounting Kit | Yes |
| Package Contents | - Extended battery module (EBM) |
| - EBM power cable | |
| - EBM detection cable | |
| - Rack-mounting kit | |
| - Link plate | |
| - Quickstart guide | |
| - Safety instructions | |
| Type of Accessory | Battery/accumulator |
| Battery Rating | 12 V / 9 Ah |
| Battery Type | Sealed, lead-acid |
| Battery Quantity | 8 |
