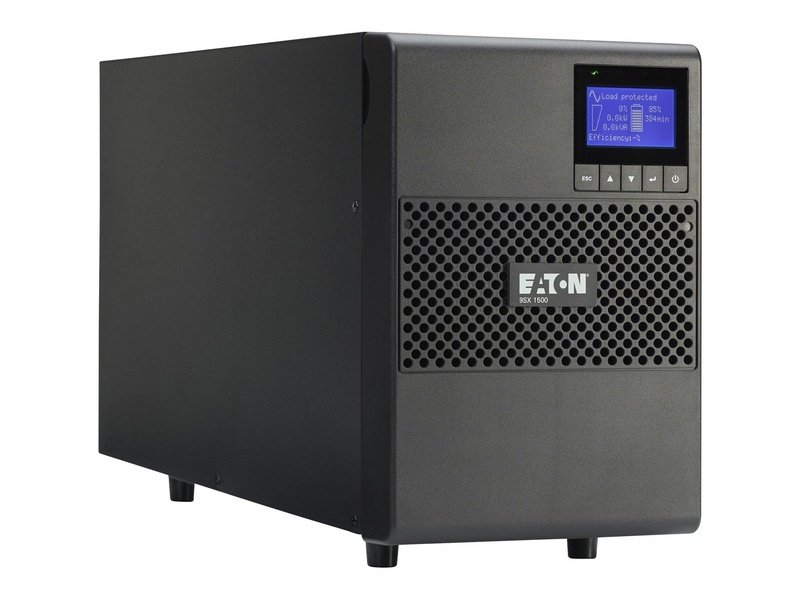

EATON 9SX 1500VA/1350W ON LINE TOWER UPS 240V

EatonSKU: 9SX1500I-AU

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$2,491.00

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)

Payment & Security

Apple Pay Google Pay Mastercard PayPal Shop Pay Visa

Your payment information is processed securely. We do not store credit card details nor have access to your credit card information.

Estimate shipping

Description

Overview


Eaton 9SX 1500I

General

Topology

On-line double conversion with PFC (Power Factor Correction) system

Configuration
Tower

Part Number
9SX1500I-AU

Rating (VA/Watts)
1500/1350

Dimensions (H x W x D, mm)
252 x 160 x 437

Warranty
2 years


Electrical Input

Connection

(1) IEC-320-C14
IEC C14

Input Voltage Range
190-276V without derating (up to 120–276V with derating)

Nominal Voltage
200/208/220/230/240V

Frequency
50/60 Hz autoselection

Frequency Range
40-70 Hz


Electrical Output

Output Receptacles
(4) Aust. 10A
Australian 10A

Output Frequency
50/60 Hz autoselect, frequency converter as standard


Battery

Battery Management
ABM® and Temperature compensated charging method (user selectable), automatic battery test, deep discharge protection, automatic recognition of external battery units.

Extended Battery Capability
EBM


Communications

User Interface

Multilingual graphical LCD display

Communication Ports
1 USB port + 1 serial RS232 port + 1 mini-terminal block for Remote Power Off + 1 mini-terminal block for Output relay

Communication Slot
1 slot for Network-M2, Network-MS, ModBus-MS or Relay-MS cards


Environmental & Standards

Audible Noise

<43dB

Operating Temperature
0 to 40°C continuous

Safety markings
IEC/EN 62040-1, UL 1778, CSA 22.2

EMC Markings
IEC/EN 62040 -2 , FCC Class B, CISPR22 Class B

Approvals
CE /CB report (TUV) / cULus / EAC / RCM
