Description

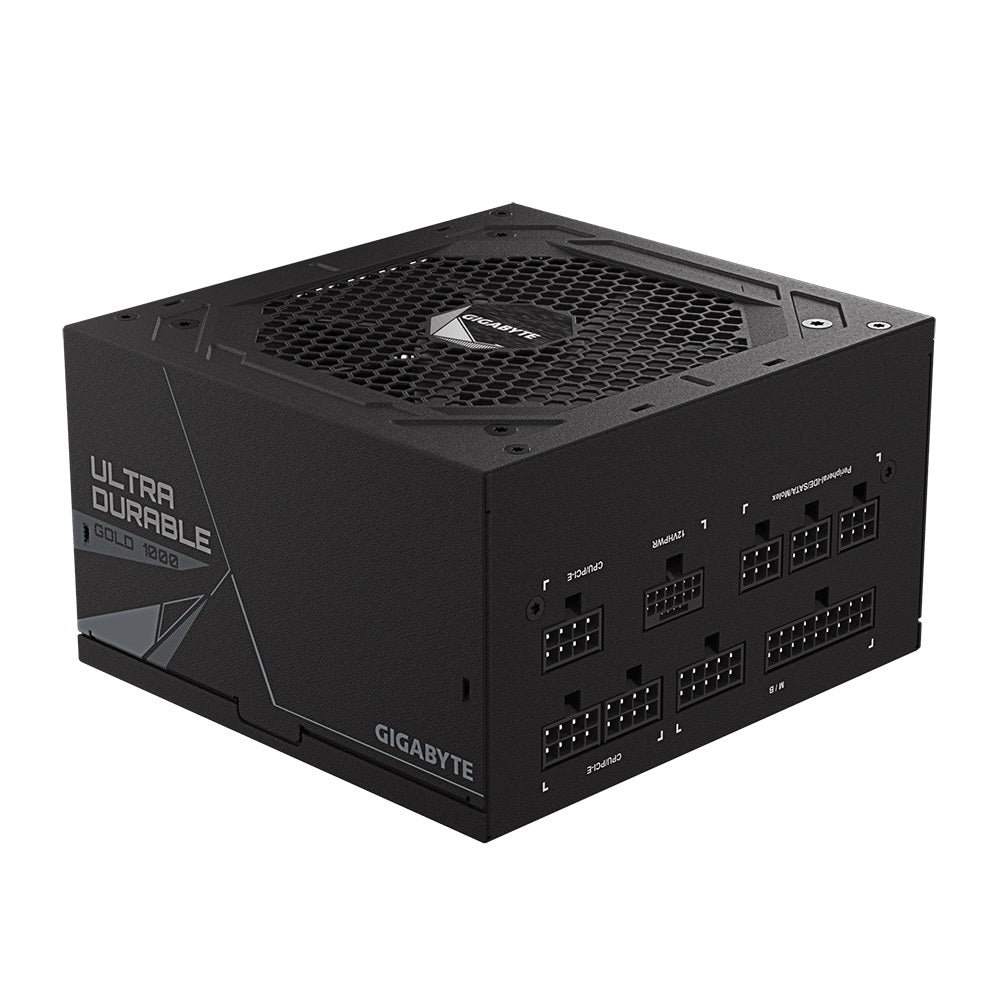

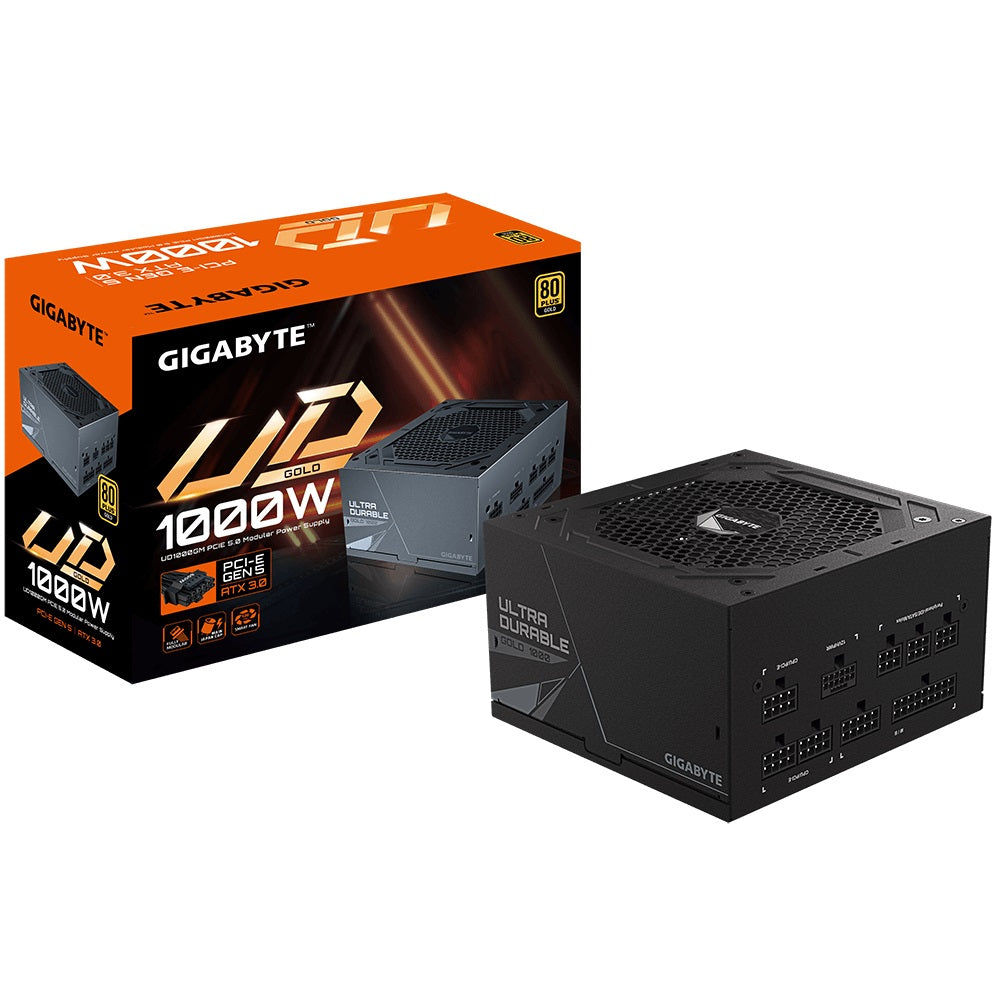

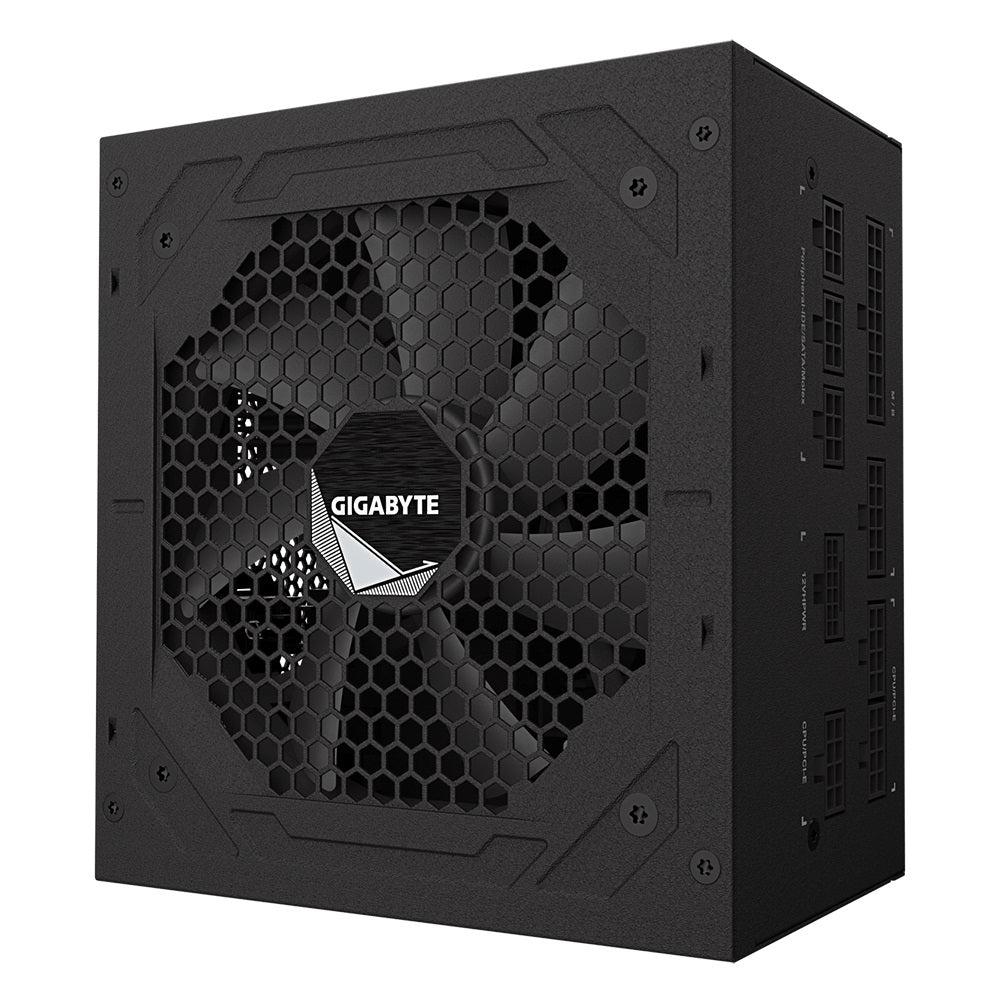

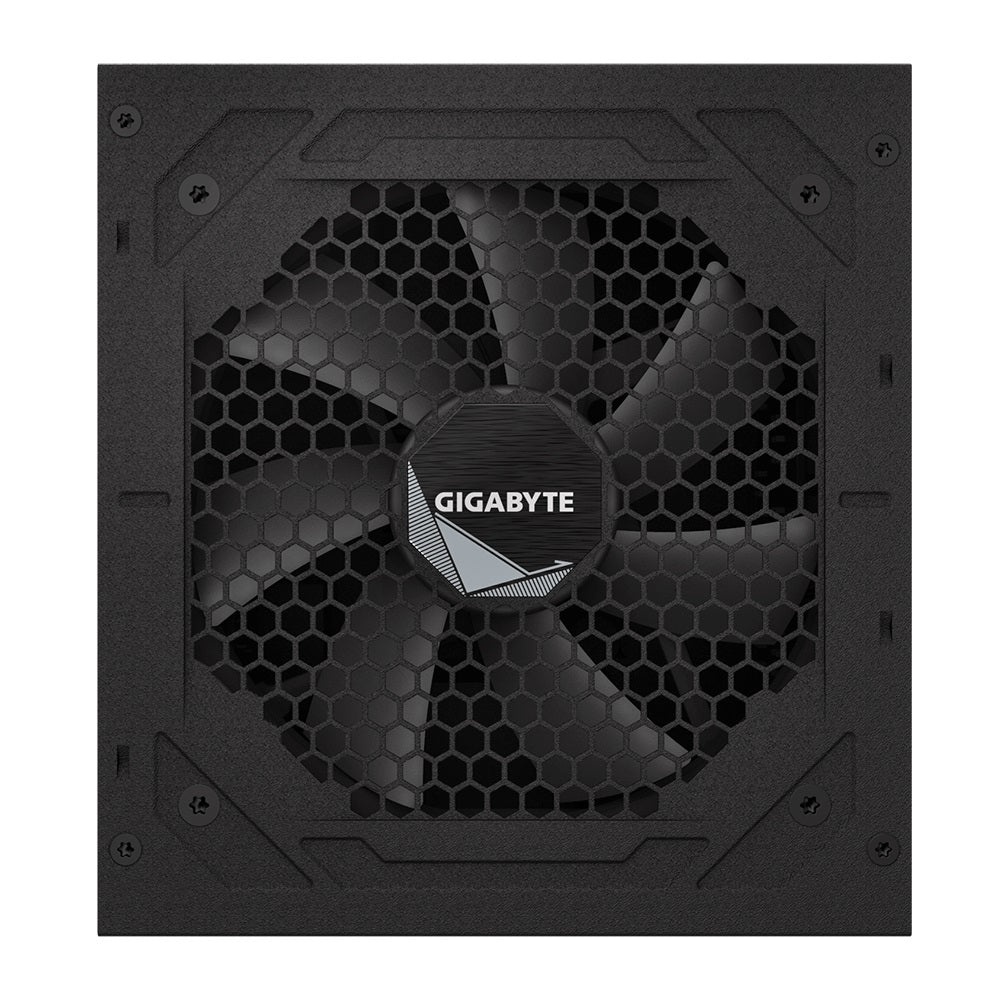

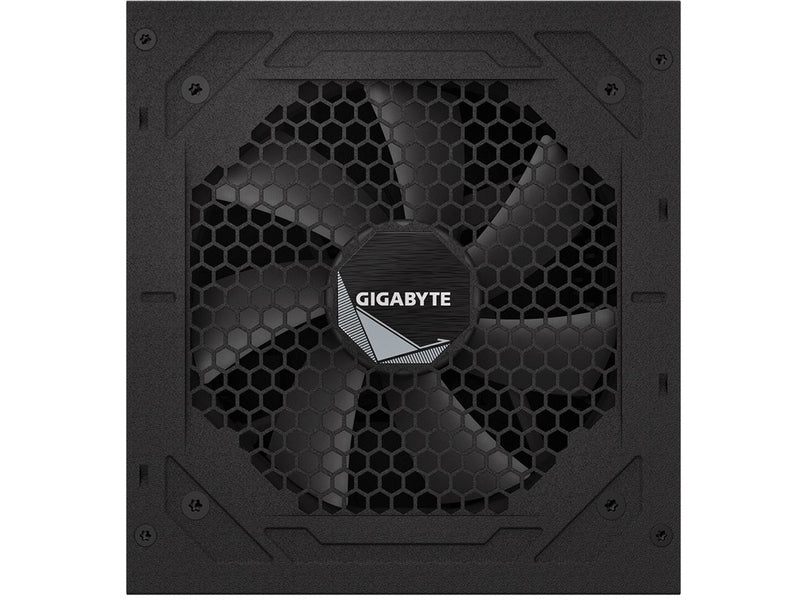

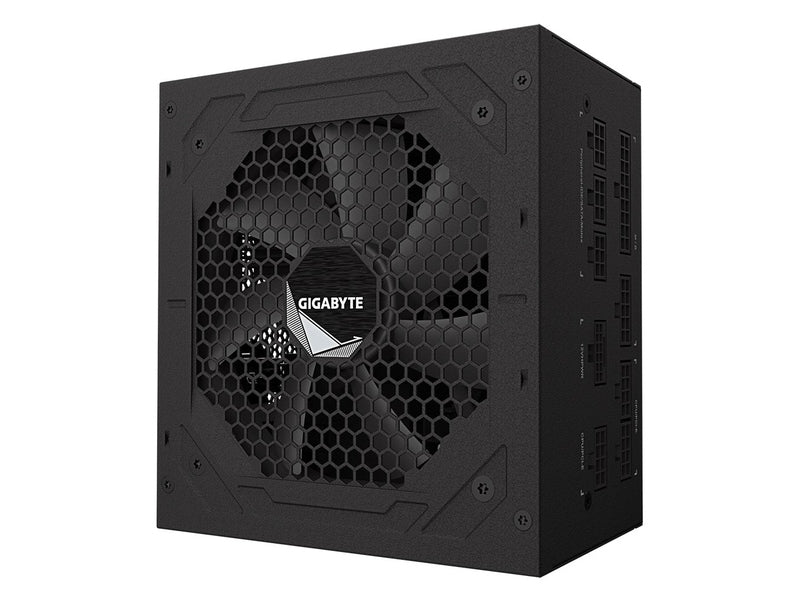

Gigabyte 1000W 80+ Gold Fully Modular PCIe 5.1 ATX 12V v3.1 Power Supply (GP-UD1000GM PG5 V2)
Specifications
|
Type |
Intel Form Factor ATX 12V v3.1 |
|
PFC |
Active PFC (>0.9 typical) |
|
Input Voltage |
100-240 Vac (full range) |
|
Input Current |
15-6.5A |
|
Input Frequency |
60-50 Hz |
|
Output Capacity |
1000W |
|
Dimensions |
150 x 140 x 86 mm |
|
Fan Type |
120mm Hydraulic Bearing(HYB) Fan |
|
80 PLUS |
Gold |
|
Efficiency |
90% at typical load |
|
MTBF |
>100,000 hours |
|
Protections |
OVP/OPP/SCP/UVP/OCP/OTP |
|
Power Good Signal |
100-150ms |
|
Hold Up Time |
>16ms |
|
Cable Type |
Embossed, All black |
|
Connectors |
ATX/MB 20+4 Pin x 1 : 610mm*1 CPU/EPS 4+4 Pin x 2 : 650mm+200mm*1 PCI-e 6+2 Pin x 4 : 600mm+150mm*2 PCI-e 12+4 Pin x 1:700mm*1 SATA x 8 : 600mm+150mm+150mm+150mm*2 4 Pin Peripheral x 3+4-Pin Floppy x 1 : 500mm+150mm+150mm+150mm*1 |
