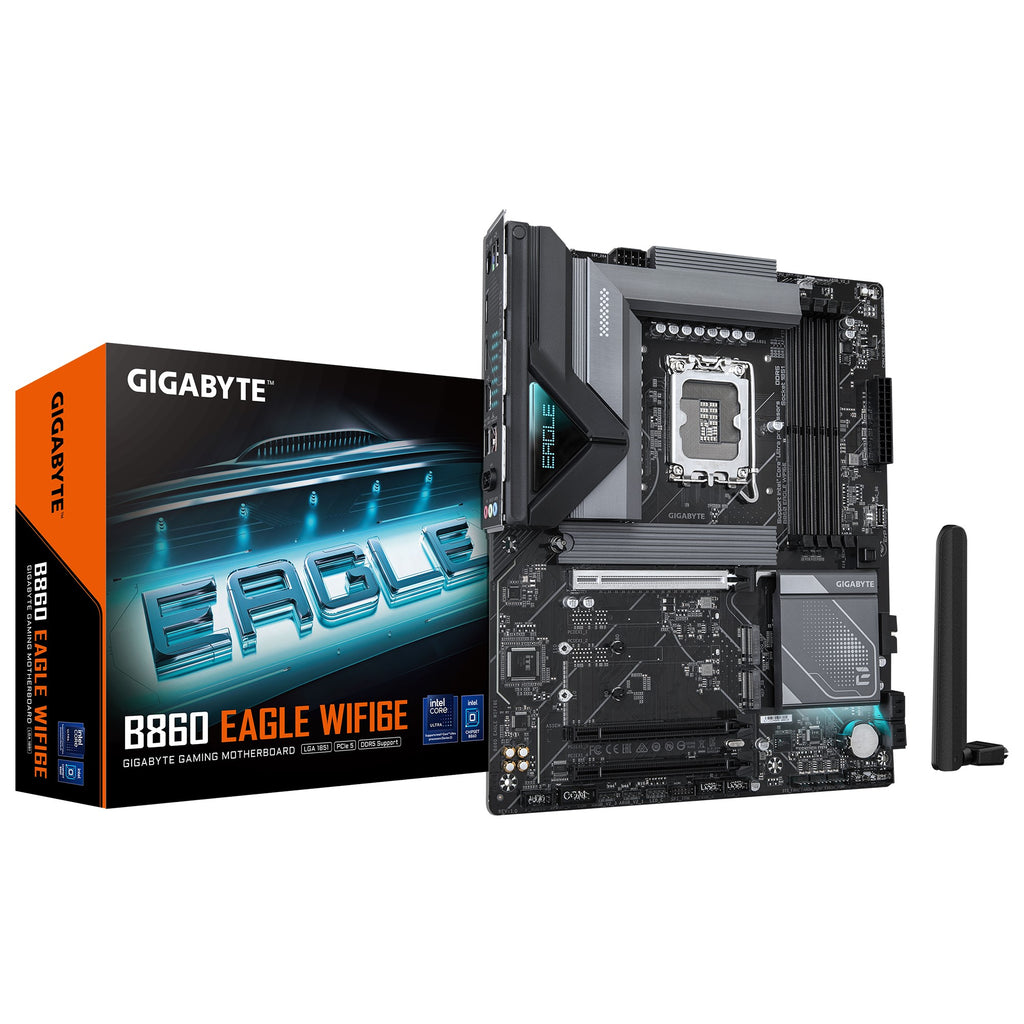

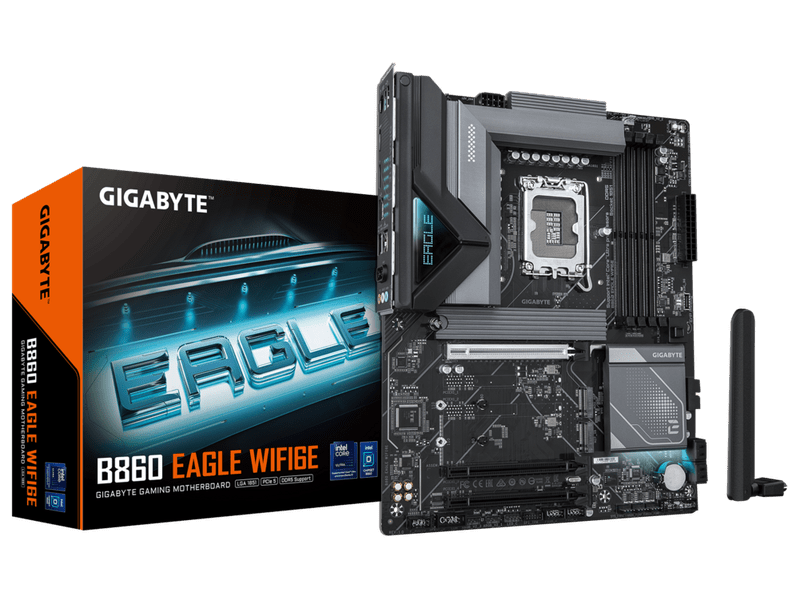

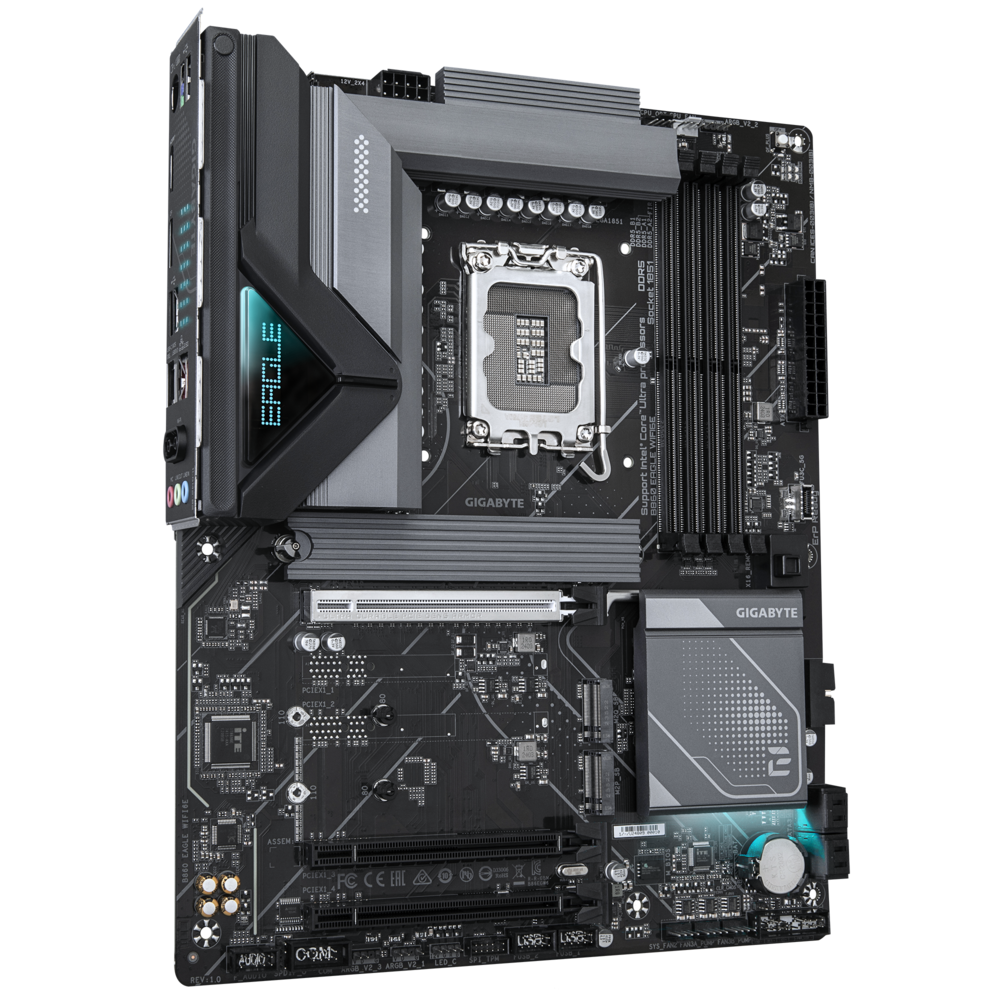

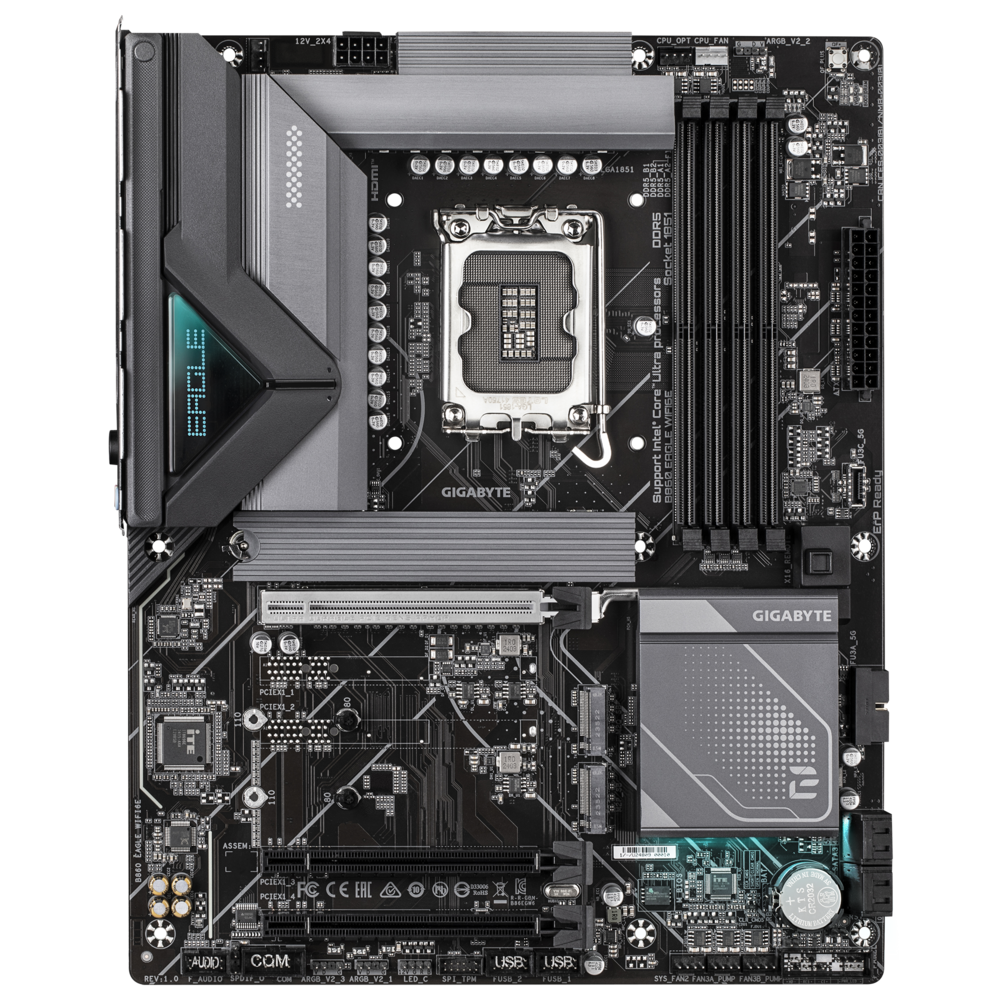

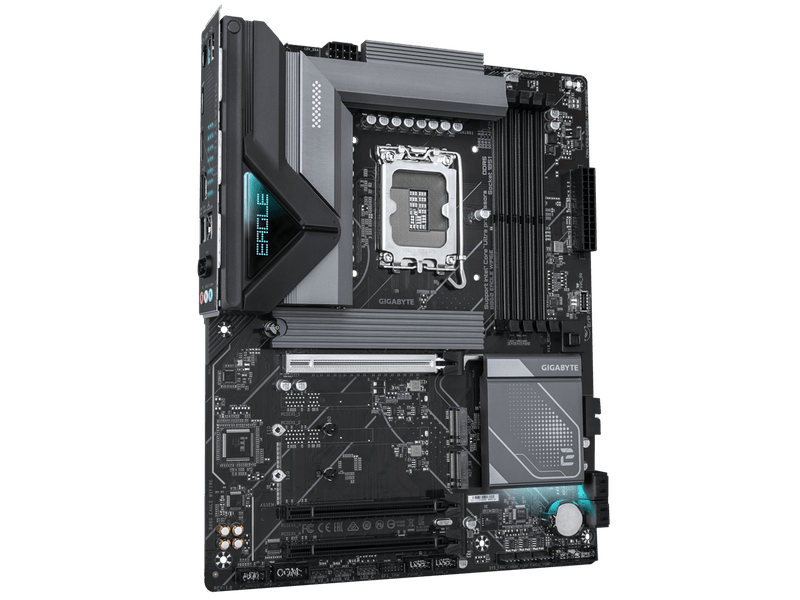

Gigabyte B860 EAGLE WIFI6E 1.0 Motherboard

GigabyteSKU: B860 EAGLE WIFI6E 1.0

Gigabyte B860 EAGLE WIFI6E 1.0, Intel B860, 4 x DDR5 up to 256 GB, 1x HDMI, 3 x PCI Express x16, 3 x M.2, 4 x SATA, 3 x USB 3.2

Availability:

✅ In Stock at Supplier (ETA: Usually in 1-3 Business Days)

Price:
Sale price$338.00

Estimate shipping

Description

Overview

Sturdy VRM Design
Steady Power
Better Play EAGLE Series, steady power keeps your computing smooth.

Cooling
Comprehensive Thermal
EAGLE motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.

Easy & Friendly
Hassle-free Assembly
Our cutting-edge motherboard is designed for the ultimate DIY experience. Creating your own PC becomes a delightful and smooth process.

Connectivity
All-round Connectivity
Experience ultimate connectivity with next-generation network, storage, and Wi-Fi solutions, delivering lightning-fast data transfer speeds.

Ultra Durable™
Born from Ultra Durable™
Technology embodies our commitment to excellence, providing users with a platform that's not only powerful but also built for longevity and reliability. EAGLE series motherboards are engineered to endure and excel.

Tailored Computing
Collaborative Excellence in Computing
GIGABYTE motherboards showcases our devotion to BIOS improvement. Through synergy with our user community, we democratize next-level computing power.

Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Digital twin 12+1+2 phases VRM solution
- Dual Channel DDR5 : 4*DIMMs with XMP Memory Module Support
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch Plus : PCIe and M.2 slots with Quick Release & Screwless Design
- EZ-Latch Click : M.2 heatsinks with screwless design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- Ultra-Fast Storage : 3*M.2 slots, including 1* PCIe 5.0 x4
- Efficient Thermal : VRM Thermal Armor Advanced & M.2 Thermal Guard
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E
- Extended Connectivity : HDMI, DisplayPort

GIGABYTE B860 ATX Motherboard – Specifications
CPU LGA1851 socket: Supports Intel® Core™ Ultra Processors
(See GIGABYTE website for CPU support list)
L3 cache varies with CPU
Chipset Intel® B860 Express Chipset
Memory DDR5 9066(O.C) down to 5600 MT/s supported
4× DDR5 DIMM sockets, up to 256GB (64GB per DIMM)
Dual channel architecture
ECC Un-buffered DIMM 1Rx8/2Rx8 (non-ECC mode)
Non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16
Extreme Memory Profile (XMP) support
• Single-sided latches
• Compatibility varies by CPU/memory config
Onboard Graphics Intel® HD Graphics support:
• 1× HDMI (4096×2160@60Hz, HDMI 2.1, HDCP 2.3)
• 1× DisplayPort (3840×2160@144Hz, DP 2.1)
* Graphics specs vary by CPU
Audio Realtek® Audio CODEC
High Definition Audio, 2/4/5.1/7.1-channel
S/PDIF Out supported
* Audio jack functionality configurable via software
LAN Realtek® 2.5GbE LAN (2.5G/1G/100M)
Wireless Communication Intel® Wi-Fi 6E AX211 (PCB rev. 1.0)
Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
• Wi-Fi a/b/g/n/ac/ax, 2.4/5/6GHz
• Bluetooth® 5.3
• 11ax 160MHz support
* Actual data rate may vary
Expansion Slots CPU:
• 1× PCIe x16 (Gen 5.0, x16)
* Supports GPU or NVMe SSD only
Chipset:
• 2× PCIe x16 (Gen 4.0, x1)
Storage Interface CPU:
• 1× M.2 (25110/22110/2580/2280, PCIe 5.0 x4/x2)
Chipset:
• 2× M.2 (25110/22110/2580/2280, PCIe 4.0 x4/x2)
• 4× SATA 6Gb/s
RAID 0/1/5/10 support for SATA
USB Rear:
• 1× USB Type-C (USB 3.2 Gen 2x2)
• 1× USB 3.2 Gen 2 Type-A (red)
• 4× USB 2.0/1.1
Front/Internal:
• 1× USB Type-C (USB 3.2 Gen 1)
• 2× USB 3.2 Gen 1
• 4× USB 2.0/1.1
Internal I/O • 1× 24-pin ATX
• 1× 8-pin ATX 12V
• CPU fan, CPU/pump, 2× system fan, 2× system/pump
• 3× Gen2 ARGB headers, 1× RGB header
• 3× M.2, 4× SATA
• Front panel/audio/S/PDIF headers
• USB: Type-C Gen 1, Gen 1 header, 2× USB 2.0 headers
• TPM header (GC-TPM2.0 SPI V2), serial port header
• Q-Flash Plus button, reset jumper, Clear CMOS jumper

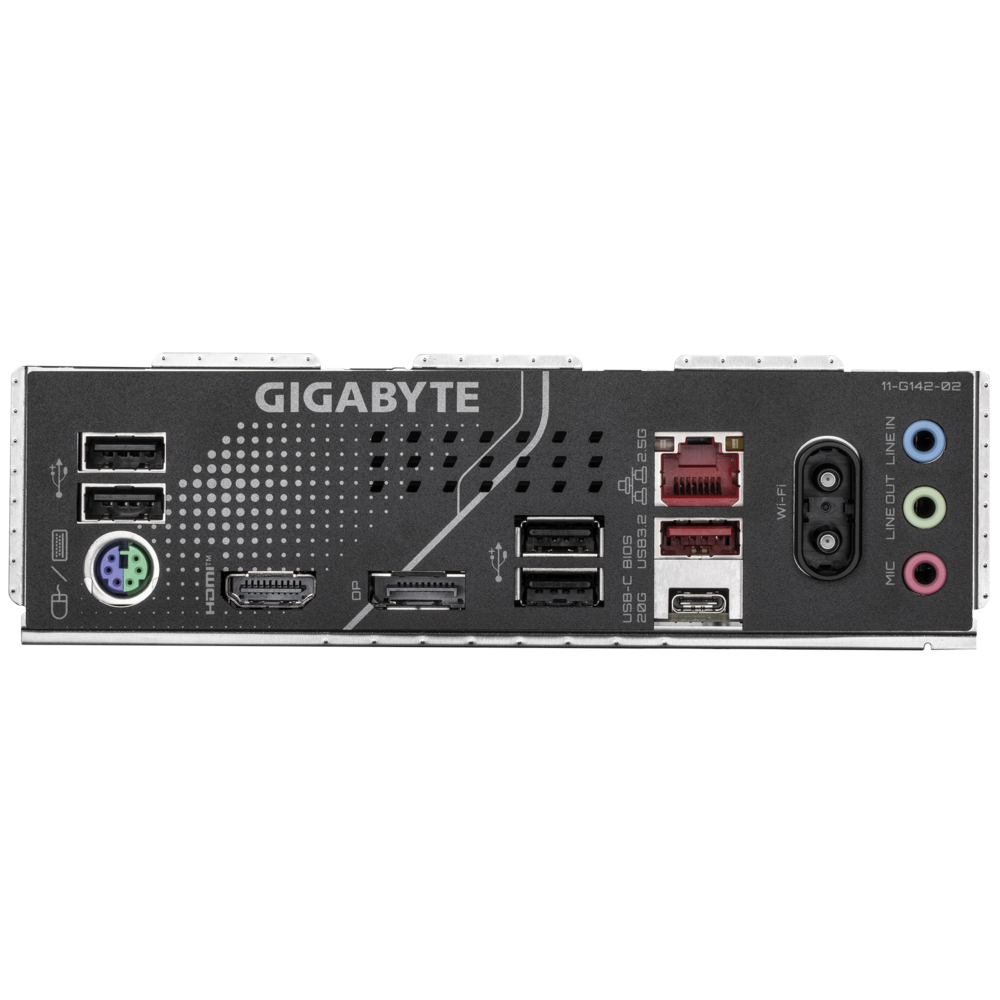

Back Panel Connectors • 1× PS/2 keyboard/mouse
• 1× HDMI (Note), 1× DisplayPort (Note)
• 1× USB Type-C (USB 3.2 Gen 2x2)
• 1× USB 3.2 Gen 2 Type-A (red)
• 4× USB 2.0/1.1
• 2× antenna connectors (2T2R)
• 1× RJ-45
• 3× audio jacks
* Actual support may vary by CPU
I/O Controller iTE® I/O Controller Chip
H/W Monitoring Voltage, temperature, fan speed, water flow
Fan fail warning, fan speed control
* Support depends on installed fan/pump
BIOS 1× 256 Mbit flash
AMI UEFI BIOS
PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features GIGABYTE Control Center (GCC)*
Q-Flash, Q-Flash Plus, Smart Backup
* GCC apps/functions vary by model
Bundled Software Norton® Internet Security (OEM), LAN bandwidth manager
Operating System Windows 11 64-bit
Windows 10 64-bit
* Intel® NPU driver supported only on Windows 11
Form Factor ATX (30.5cm × 24.4cm)
