Description
Overview
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 5+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : 2*DisplayPort, HDMI
Infinite Memory Performance
UD motherboards boost DDR5 memory performance and offer top-notch compatibility using various advanced methods.
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Comprehensive Thermal
UD motherboards come with advanced full-metal thermal design and durable heatsinks to keep your system cool and efficient.
M.2 Thermal Guard
The M.2 Thermal Guard prevents throttling and bottlenecks from high speed M.2 SSDs as it helps to dissipate heat before it becomes an issue.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
802.11ax Wi-Fi 6E
The latest Wireless solution 802.11ax Wi-Fi 6E with new dedicated 6GHz band, enables gigabit wireless performance, provides smooth video streaming, better gaming experience, few dropped connections and speeds up to 2.4Gbps. Moreover, Bluetooth 5 provides 4X range over BT 4.2 and with faster transmission.
2.5GbE LAN
Supercharge your gaming with 2.5GbE LAN Achieve lightning-fast speeds, minimal lag, and unbeatable performance to elevate your gaming setup and dominate the competition.
PCIe 5.0 / 4.0 Hardware Design
Featuring PCIe 5.0 x16 slot and PCIe 5.0 / 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 5.0 / 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
WIFI EZ-Plug
The WIFI EZ-Plug design integrates Wi-Fi antenna plugs into one adapter, EZ to install.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 5+1+2 phases VRM solution
- D5 Bionic Corsa for Infinite Memory Performance
- AI Perfdrive : Provides optimal and customized BIOS preset profile for users
- WIFI EZ-Plug : Quick and easy design for Wi-Fi antenna installation
- EZ-Latch : PCIe x16 Slot with Quick Release Design
- Friendly UI : Multi-Theme, AIO Fan Control, and Q-Flash Auto Scan in BIOS and SW
- New Power Monitor in HWinfo for real-time monitoring on CPU power phases
- Ultra-Fast Storage : 2*M.2 slots, including 1* PCIe 5.0 x4
- M.2 Thermal Guard : To Ensure M.2 SSD Performance
- Fast Networking : 2.5GbE LAN & Wi-Fi 6E 802.11ax
- Extended Connectivity : 2*DisplayPort, HDMI

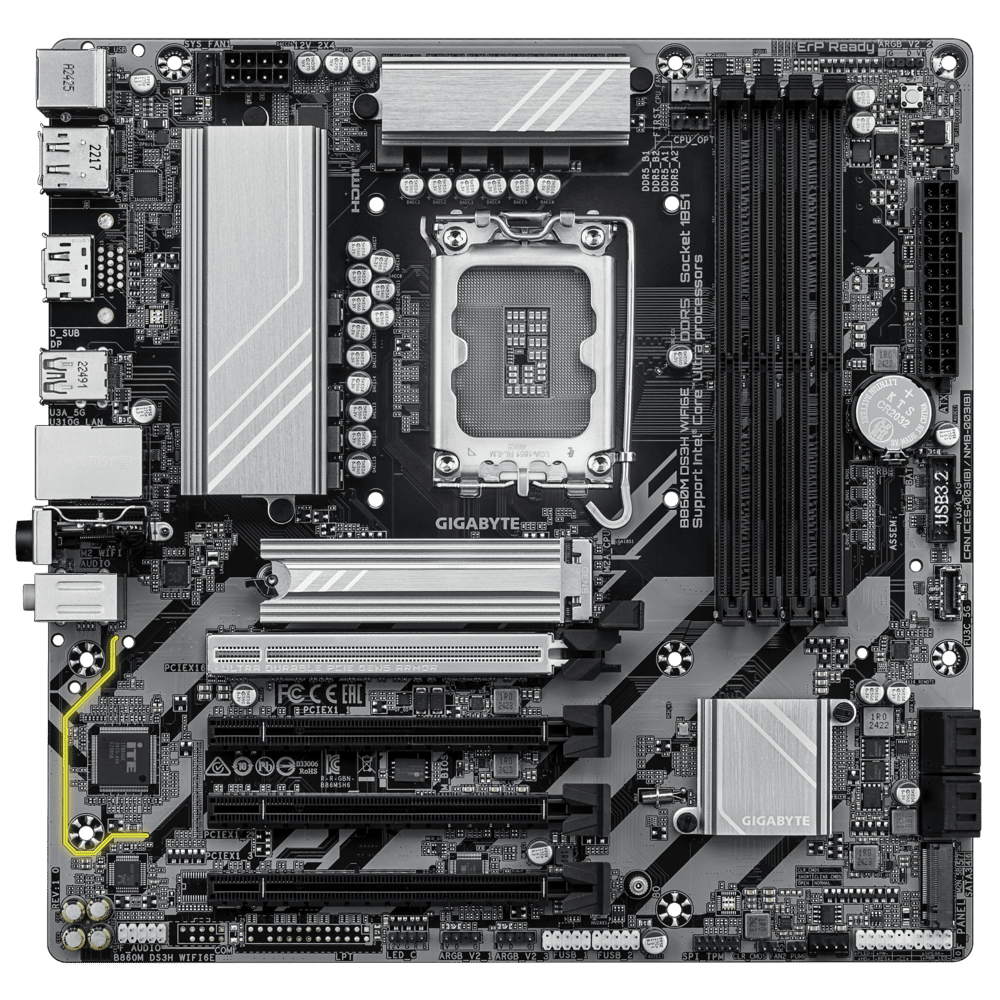

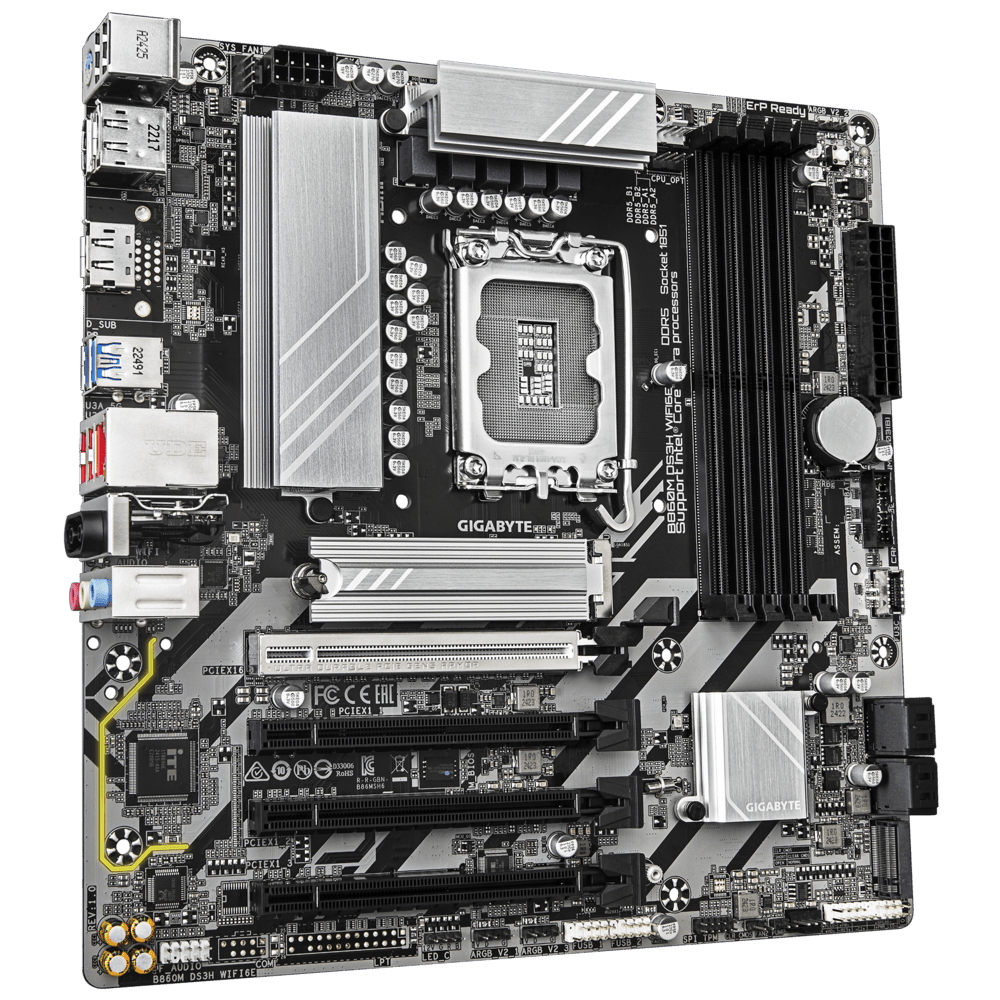

| GIGABYTE B860 Micro-ATX Motherboard Specifications | |
|---|---|
| CPU Support | LGA1851 socket Intel® Core™ Ultra Processors L3 cache varies by CPU |
| Chipset | Intel® B860 Express Chipset |
| Memory | DDR5 9066(O.C) down to 5600 MT/s supported 4 x DDR5 DIMM sockets, up to 256 GB Dual channel architecture ECC Un-buffered DIMM (non-ECC mode) Non-ECC Un-buffered DIMM support XMP memory module support |
| Onboard Graphics | Intel® HD Graphics (CPU dependent) 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) 2 x DisplayPort (3840x2160@144Hz, DisplayPort 2.1) Triple-display support |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel support |
| LAN | Realtek® 2.5GbE LAN (2.5/1/0.1 Gbps) |
| Wireless & Bluetooth | Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1) Wi-Fi a/b/g/n/ac/ax, 2.4/5/6 GHz Bluetooth® 5.3 11ax 160MHz support |
| Expansion Slots |
CPU: 1 x PCIe 5.0 x16 (graphics/NVMe only) Chipset: 3 x PCIe 4.0 x16 (x1 mode) |
| Storage |
CPU: 1 x M.2 (PCIe 5.0 x4/x2, 2280) Chipset: 1 x M.2 (PCIe 4.0 x4/x2, 2280) 4 x SATA 6Gb/s connectors RAID 0/1/5/10 support (SATA only) |
| USB Ports |
Chipset: - 1 x USB 3.2 Gen 1 Type-C® (internal header) - 1 x USB 3.2 Gen 2 Type-A (rear, red) - 4 x USB 3.2 Gen 1 (2 rear, 2 internal) - 3 x USB 2.0/1.1 (rear) - 4 x USB 2.0/1.1 (internal via headers) |
| Internal I/O | 1 x 24-pin ATX main 1 x 8-pin ATX 12V 1 x CPU fan header 1 x CPU/water pump header 1 x system fan header 1 x system/water pump header 3 x Gen2 addressable RGB headers 1 x RGB LED header 2 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel, 1 x front audio 1 x USB Type-C® Gen 1 header 1 x USB 3.2 Gen 1 header 2 x USB 2.0 headers 1 x TPM header 1 x Q-Flash Plus button 1 x reset jumper 1 x Clear CMOS jumper |

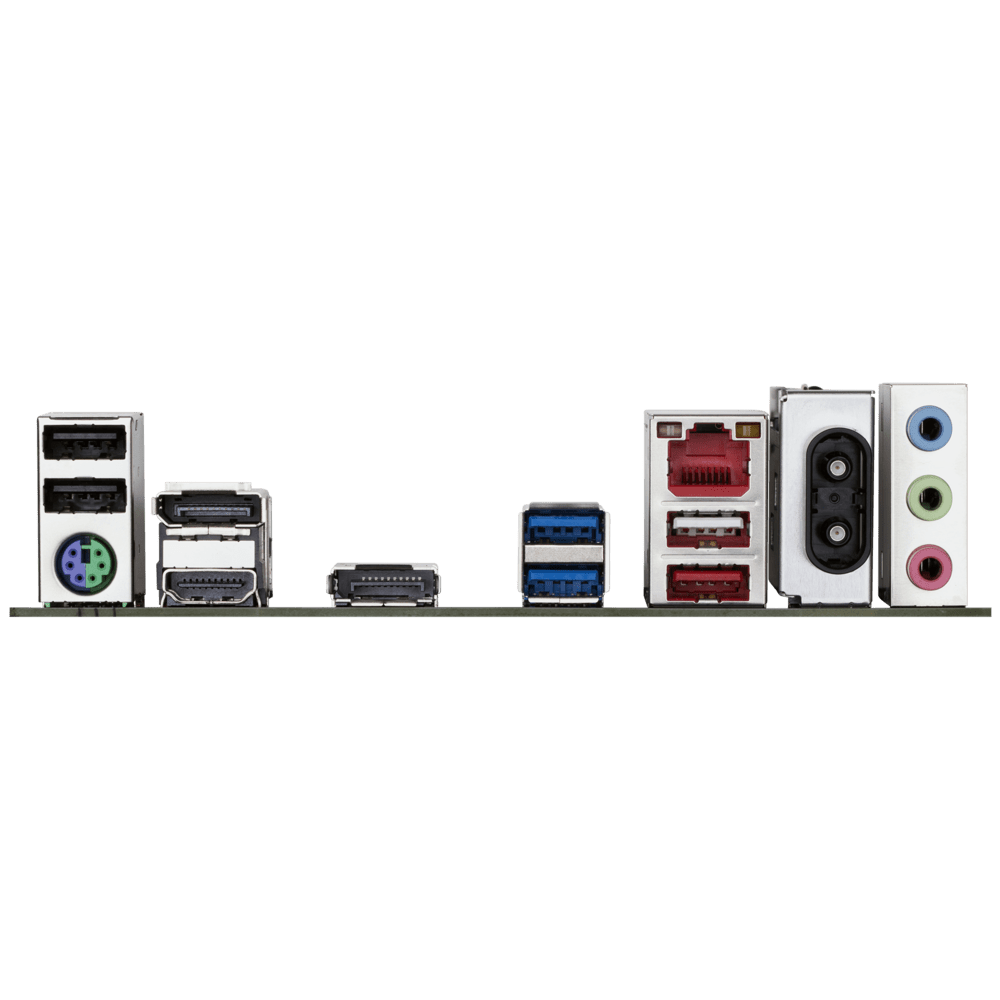

| Back Panel I/O | 1 x PS/2 keyboard/mouse 1 x HDMI 2 x DisplayPort 1 x USB 3.2 Gen 2 Type-A (red) 2 x USB 3.2 Gen 1 3 x USB 2.0/1.1 2 x antenna connectors 1 x RJ-45 LAN 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow rate detection Fan fail warning Fan/pump speed control (dependent on installed hardware) |
| BIOS | 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash, Q-Flash Plus Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit Windows 10 64-bit * Intel® NPU driver supported only on Windows 11 |
| Form Factor | Micro ATX, 24.4cm x 24.4cm |
