Description
Overview
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Smart Fan 6
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI, D-Sub
Durable Performance
GIGABYTE Ultra Durable™ motherboards built with optimal components inside out provide the prime performance and timeless platform.
Hybrid VRM Design
The best VRM design ever built with the highest quality components. Delivers enhanced system performance with ultimate hardware scalability.
Smart Fan 6
Cool. Quiet. Customized.
Superior cooling performance and whisper-quiet operation for your gaming rig.
Future Connectivity
The ultimate connectivity with blazing data-transfer speeds through the next generation network and storage.
GbE LAN
GbE LAN features a network bandwidth management application which helps to improve network latency and maintain low ping times to deliver better responsiveness in crowded LAN environments.
PCIe 4.0 Hardware Design
Featuring PCIe 4.0 x16 slot and PCIe 4.0 M.2 slot support, GIGABYTE Motherboards are ready to work with the PCIe 4.0 devices to provide the superior performance.
Hi-Fi Audio
High-End Audio Capacitors
Audio Noise Guard
Easy Friendly
Innovative and intuitive hardware, software, and BIOS interface design to create your personal style.
EZ Debug Zone
Centralized debug LEDs and control buttons provide a handy and organized troubleshooting process when building a new computer.
EZ-Latch Designs
User-friendly designs simplifying the assembly process.
PCIe EZ-Latch
Unlock the latch of the PCIe slot easily when remove the graphics card in the PCIe slot.
UC BIOS
Restructured with user-centered and intuitive performance adjustment mechanisms.
Q-FLASH Auto Scan
The new Auto Scan function featues when using USB flashdrive during Q-Flash, the BIOS file will be auto scanned instead of searching manually.
Key Features
- Supports Intel® Core™ Ultra processors (Series 2)
- Hybrid 4+1+2 phases VRM solution
- EZ-Latch: PCIe x16 Slot with Quick Release Design
- Friendly UI: Multi-Theme and Q-Flash Auto Scan in BIOS and SW
- Next Generation Storage: PCIe 4.0 x4 M.2 Connectors
- Fast Networking: GbE LAN
- Extended Connectivity: DisplayPort, HDMI, D-Sub

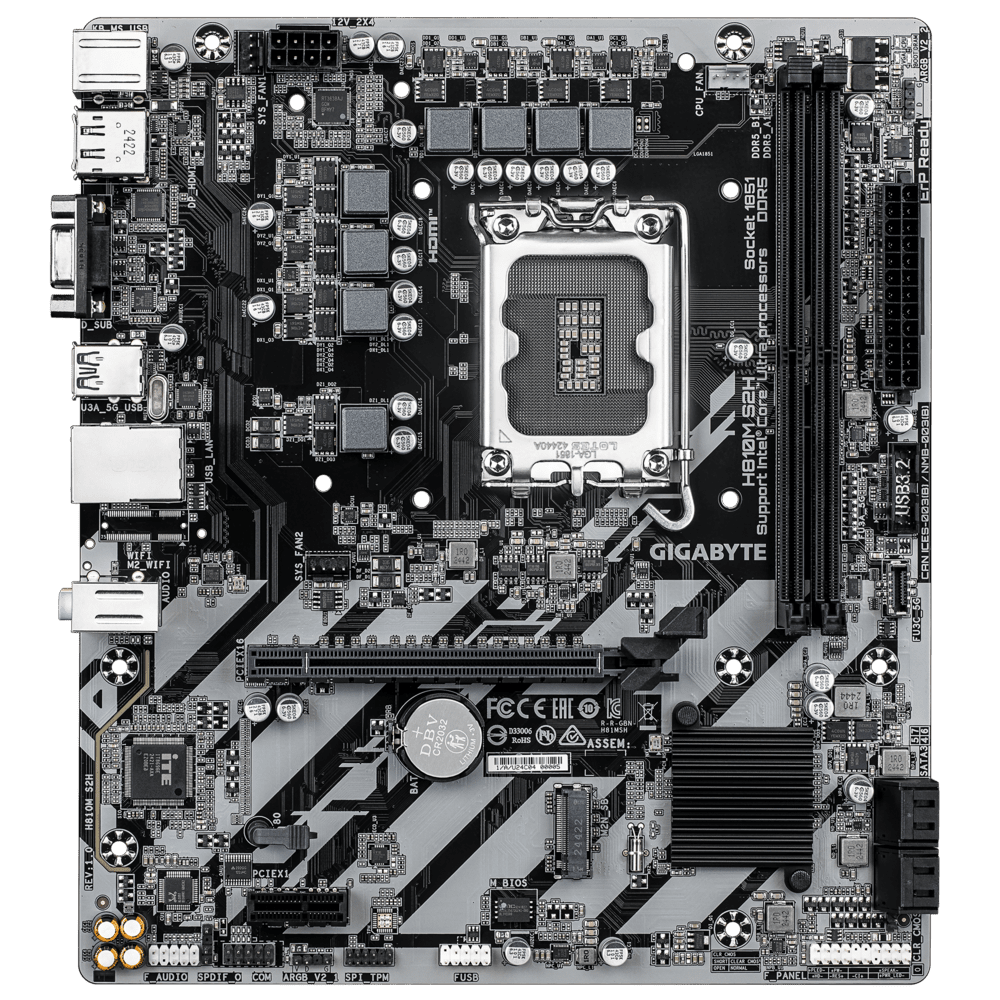

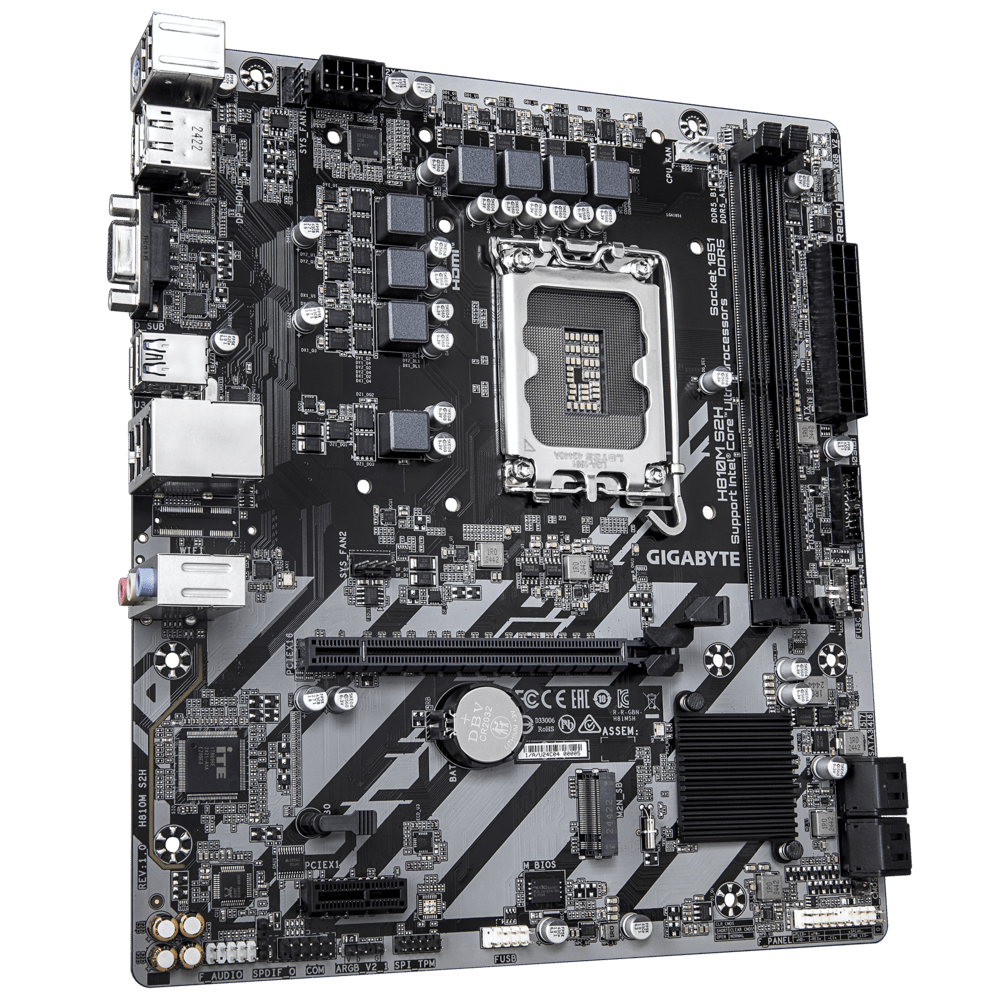

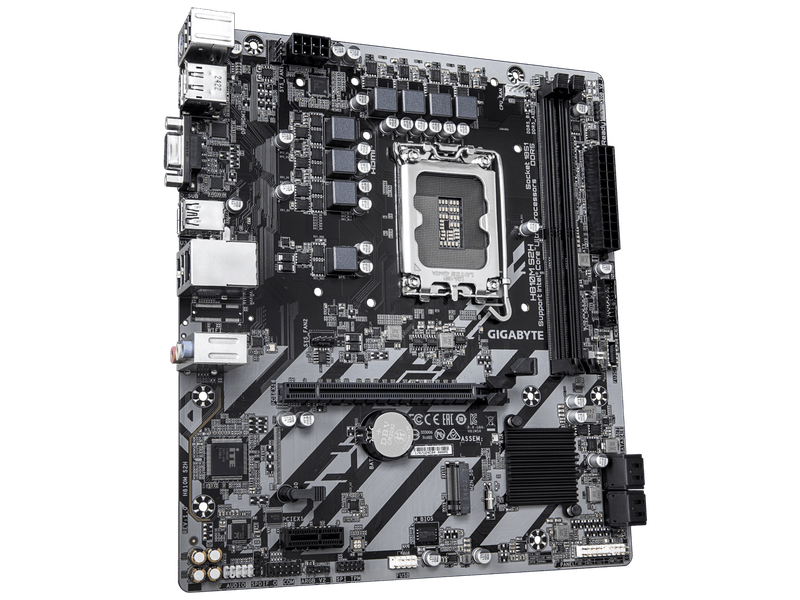

| GIGABYTE H810 Micro-ATX Motherboard Specifications | |
|---|---|
| CPU Support | LGA1851 socket Intel® Core™ Ultra Processors L3 cache varies by CPU |
| Chipset | Intel® H810 Express Chipset |
| Memory | DDR5 6400 / 5600 MT/s supported 2 x DDR5 DIMM sockets, up to 128 GB Dual channel architecture ECC Un-buffered DIMM (non-ECC mode) Non-ECC Un-buffered DIMM support XMP memory module support |
| Onboard Graphics | Intel® HD Graphics (CPU dependent) 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3) 1 x DisplayPort (3840x2160@60Hz, DisplayPort 2.1) 1 x D-Sub (1920x1200@60Hz) Triple-display support |
| Audio | Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel support S/PDIF Out supported |
| LAN | Realtek® GbE LAN (1/0.1/0.01 Gbps) |
| Expansion Slots |
CPU: 1 x PCIe 4.0 x16 (graphics/NVMe only) Chipset: 1 x PCIe 3.0 x1 |
| Storage | 1 x M.2 (PCIe 4.0 x4/x2, 2280) 4 x SATA 6Gb/s connectors RAID 0/1/5/10 support (SATA only) |
| USB Ports |
Chipset: - 1 x USB 3.2 Gen 1 Type-C® (internal header) - 3 x USB 3.2 Gen 1 (1 rear, 2 internal) - 3 x USB 2.0/1.1 (1 rear, 2 internal) - 4 x USB 2.0/1.1 (rear via hub) |
| Internal I/O | 1 x 24-pin ATX main 1 x 8-pin ATX 12V 1 x CPU fan header 2 x system fan headers 2 x Gen2 addressable RGB headers 1 x M.2 Socket 3 4 x SATA 6Gb/s 1 x front panel, 1 x front audio 1 x S/PDIF Out header 1 x USB Type-C® Gen 1 header 1 x USB 3.2 Gen 1 header 1 x USB 2.0/1.1 header 1 x TPM header 1 x serial port header 1 x Clear CMOS jumper |

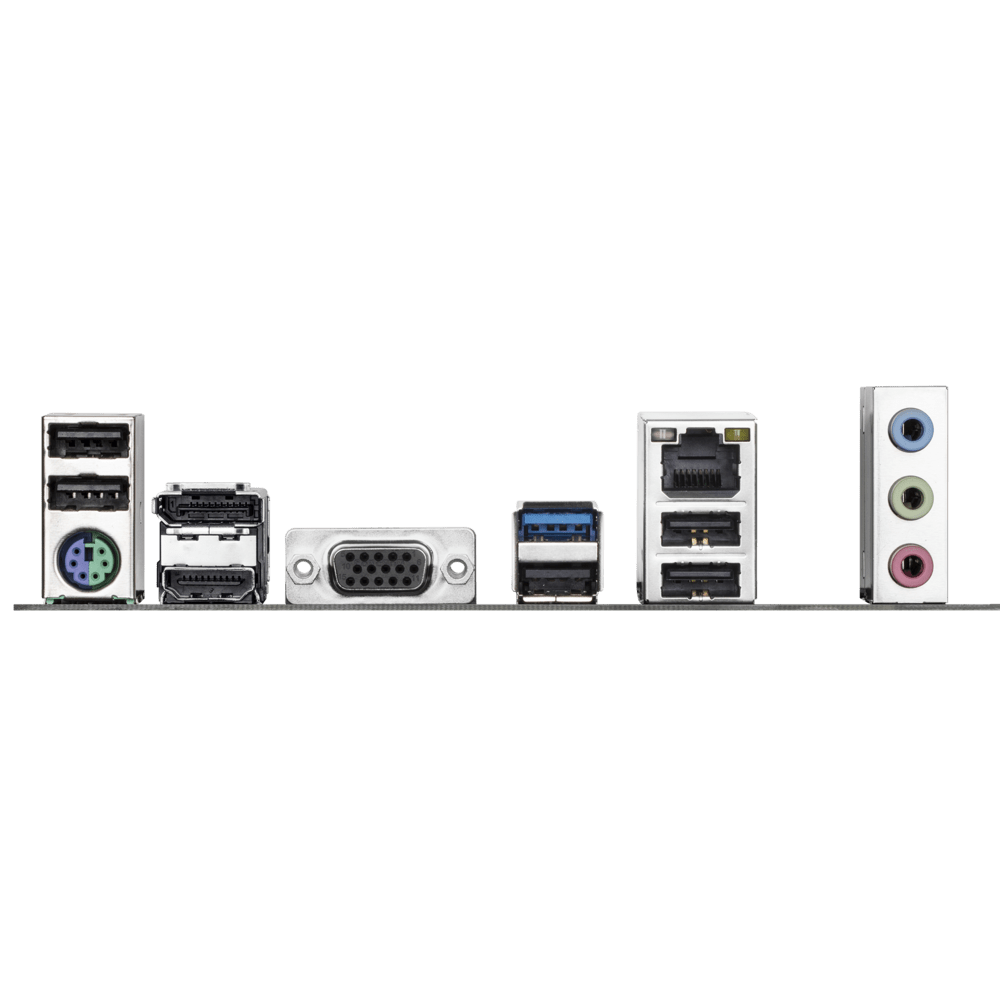

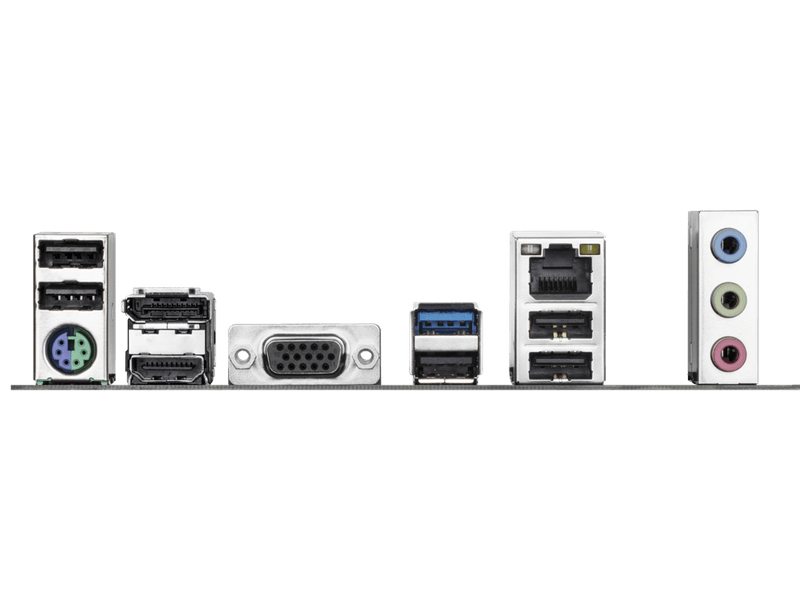

| Back Panel I/O | 1 x PS/2 keyboard/mouse 1 x HDMI 1 x DisplayPort 1 x D-Sub 1 x USB 3.2 Gen 1 5 x USB 2.0/1.1 1 x RJ-45 LAN 3 x audio jacks |
| I/O Controller | iTE® I/O Controller Chip |
| H/W Monitoring | Voltage, temperature, fan speed, water flow rate detection Fan fail warning Fan speed control (dependent on installed hardware) |
| BIOS | 256 Mbit flash AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center (GCC) Q-Flash Smart Backup |
| Bundled Software | Norton® Internet Security (OEM) LAN bandwidth management software |
| Operating System | Windows 11 64-bit Windows 10 64-bit * Intel® NPU driver supported only on Windows 11 |
| Form Factor | Micro ATX, 24.4cm x 21.5cm |
