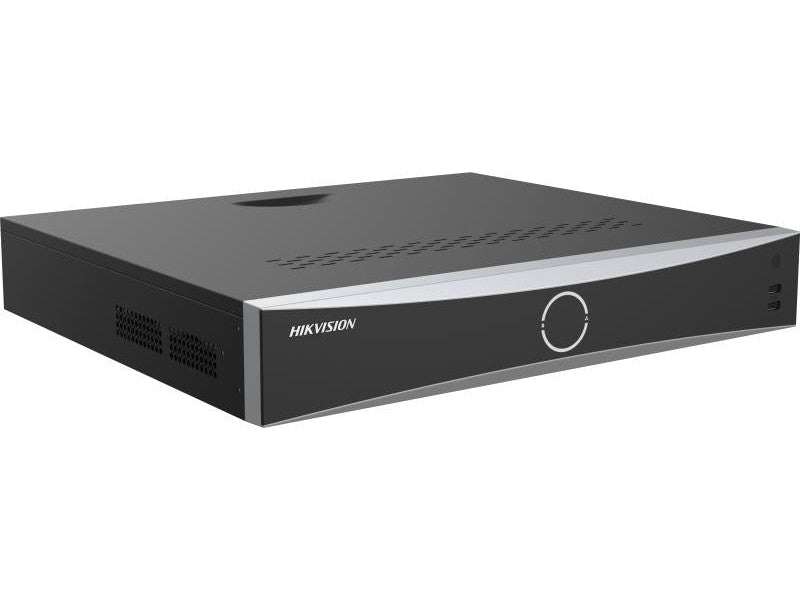

Hikvision 7732NXI-I4 VPRO Series 32CH NVR, NVR, 8K, POE(16), 4xHDD, 1.5RU, 32MP, 3YR

Overview

I/VPro Series NVR with AcuSeek
- H.265+/H.265/H.264+/H.264 video formats
- Intelligent analytics based on Guanlan Large-Scale AI Models
- Up to 32-ch AcuSeek and AcuSearch function
- Up to 8-ch facial recognition for face picture
- Up to 32-ch IP camera inputs
- Up to 32-ch 1080p decoding capability

Hikvision DS-7732NXI-I4-16P-VPRO Specifications
Video and AI Analytics
IP Camera Inputs	32 channels
Max Recording Resolution	Up to 32 MP
Decoding Capability	Up to 32-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
AI Features	AcuSense (perimeter protection, motion detection 2.0) AcuSeek (text-based video search) AcuSearch (image-based event search) Facial recognition: up to 8-ch face picture ANPR, people counting, video structuralization
Display Output
HDMI Output	Up to 4K (3840 × 2160)
VGA Output	1920 × 1080
CVBS Output	1-ch, BNC
Video Output Mode	HDMI/VGA independent
Storage
SATA Interfaces	4 × SATA ports
Max Capacity	Up to 16 TB per HDD
Network
Remote Connections	Up to 128
Network Interface	2 × RJ-45 10/100/1000 Mbps
PoE Ports	16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at)
Bandwidth	384 Mbps
Auxiliary Interfaces
USB Ports	Front: 1 × USB 2.0, Rear: 1 × USB 3.0
Alarm I/O	16 in / 4 out
Audio I/O	1 in / 1 out (RCA)
General
Power Supply	100–240 VAC
Power Consumption	≤ 25 W (without HDD and PoE off)
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
Dimensions (W × D × H)	445 × 400 × 71 mm
Weight	≤ 5 kg (without HDD)
Certification
Compliance	CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035
