Description
Overview

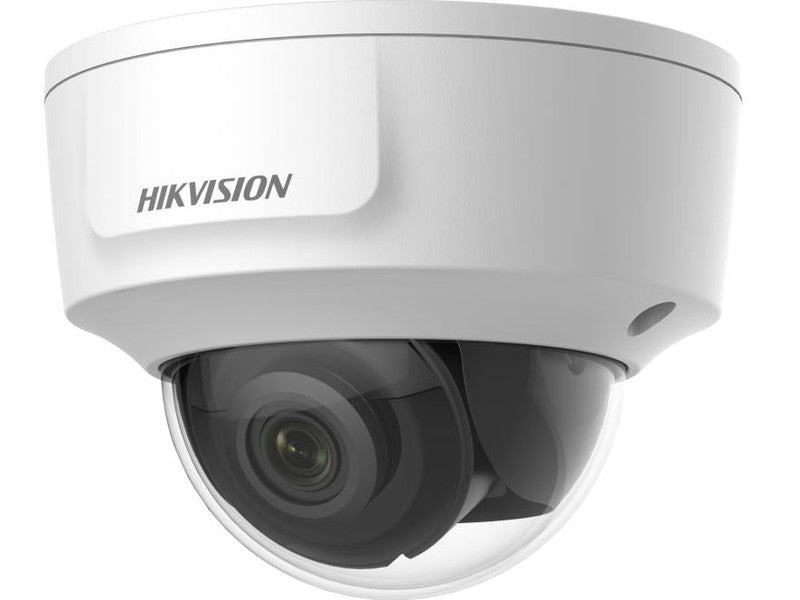

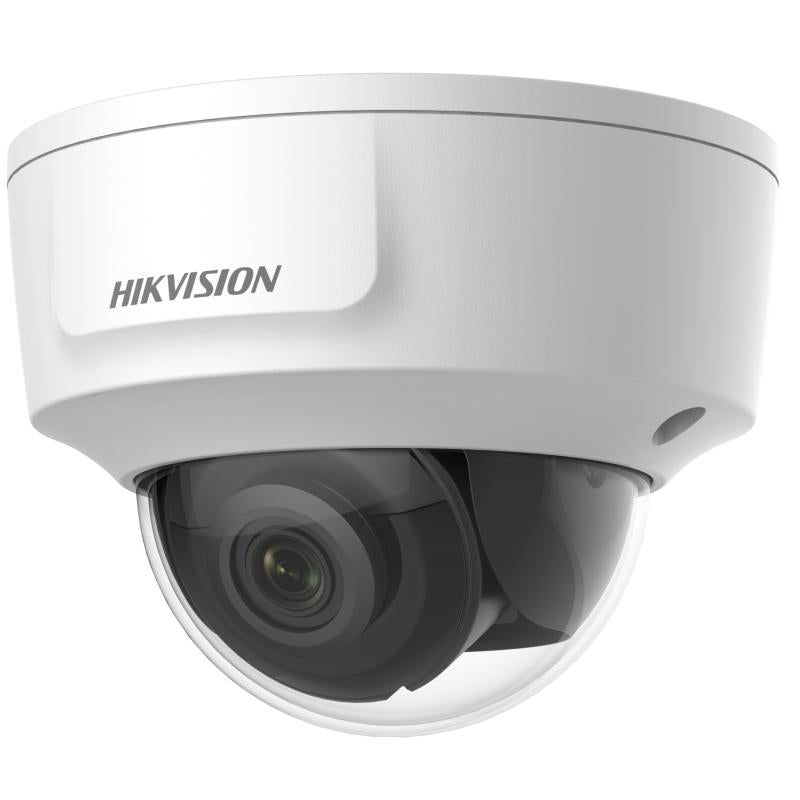

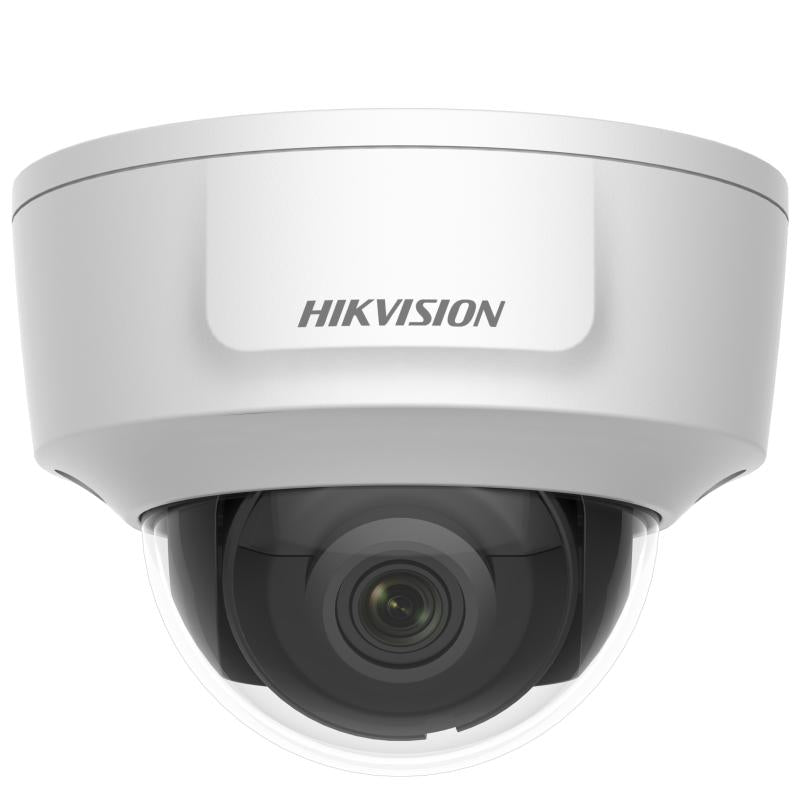

4K HDMI Fixed Dome Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Direct HD live view with HDMI output
- Robust structure design with full metal materials
- Vandal proof (IK10)
4K HDMI Fixed Dome Network Camera
- High quality imaging with 8 MP resolution
- Efficient H.265+ compression technology
- Clear imaging against strong back light due to 120 dB true WDR technology
- Direct HD live view with HDMI output
- Robust structure design with full metal materials
- Vandal proof (IK10)
| Hikvision DS-2CD2186G2-IMS Specifications | |
|---|---|
| Model Number | DS-2CD2186G2-IMS |
| Camera Type | 8MP AcuSense Fixed Dome Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 |
| Lens | 2.8 mm fixed lens |
| Field of View | Horizontal: 105.1°, Vertical: 54.8°, Diagonal: 128.2° |
| Minimum Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON); 0 Lux with IR |
| IR Range | Up to 30 meters |
| WDR | 120 dB True WDR |
| Compression | H.265+, H.265, H.264+, H.264 |
| Smart Features | Human/vehicle classification, motion detection, tampering alarm |
| Audio | Built-in microphone for real-time audio |
| HDMI Output | Direct HD live view via HDMI |
| Storage | microSD slot (up to 512 GB) |
| Network Interface | 1 × RJ45 10/100M Ethernet |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 7.5 W |
| Ingress Protection | IP67 |
| Vandal Resistance | IK10 |
| Housing | Full metal construction |
| Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
