Description
Overview

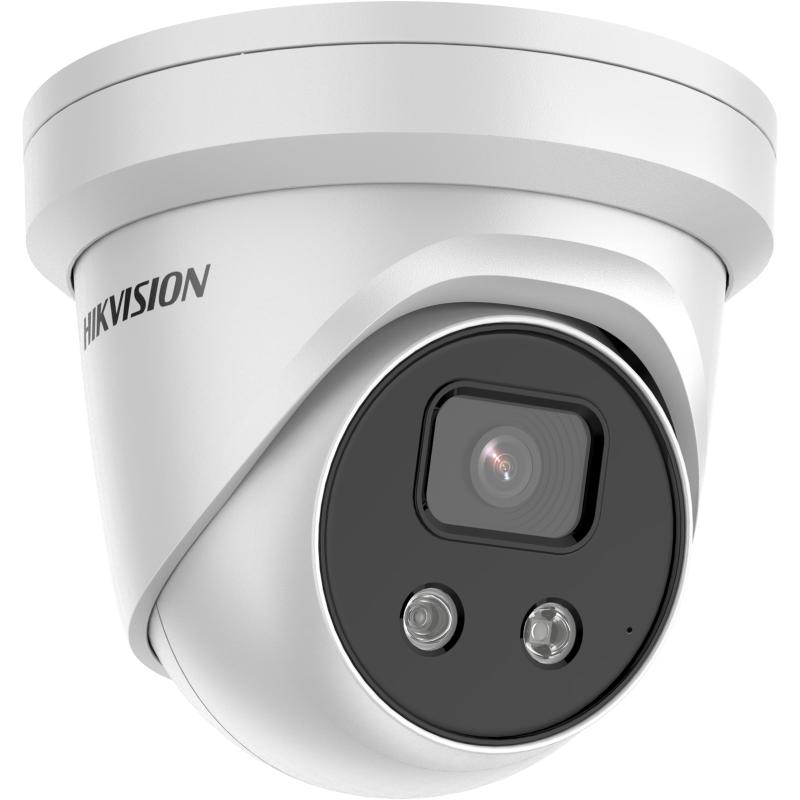

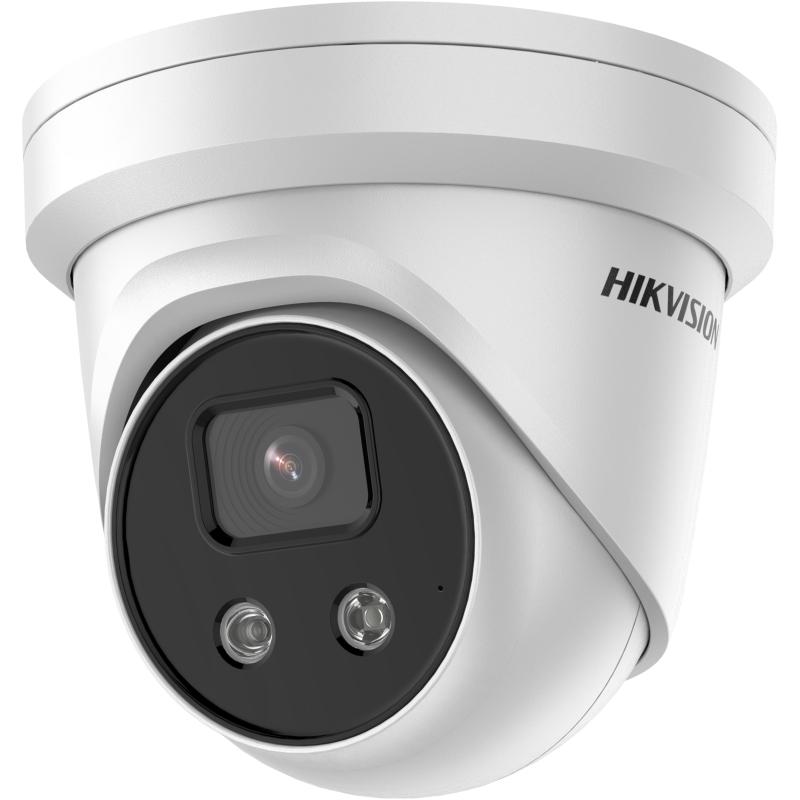

4K AcuSense Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security(-U)
- Water and dust resistant (IP67)
4K AcuSense Fixed Turret Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance with powered-by-DarkFighter technology
- Efficient H.265+ compression technology
- Clear imaging against strong back light by 120 dB true WDR technology
- Focus on human and vehicle targets classification based on deep learning
- Built-in microphone for real-time audio security(-U)
- Water and dust resistant (IP67)
Hikvision DS-2CD2386G2-IU Specifications | |
---|---|
Model Number | DS-2CD2386G2-IU |
Camera Type | 8MP AcuSense Fixed Turret Network Camera |
Image Sensor | 1/2″ Progressive Scan CMOS |
Max Resolution | 3840 × 2160 @ 20 fps |
Lens Options | 2.8 mm / 4 mm / 6 mm fixed lens |
Field of View (2.8 mm) | Horizontal: 110.7°, Vertical: 60°, Diagonal: 130.7° |
Minimum Illumination | Color: 0.014 Lux @ (F1.6, AGC ON); 0 Lux with IR |
IR Range | Up to 30 meters |
WDR | 120 dB True WDR |
Shutter Speed | 1/3 s to 1/100,000 s |
Day & Night | IR Cut Filter |
Angle Adjustment | Pan: 0°–360°, Tilt: 0°–75°, Rotate: 0°–360° |
Compression | H.265+, H.265, H.264+, H.264 |
Smart Features | Human/vehicle classification via deep learning |
Audio | Built-in microphone for real-time audio |
Storage | microSD/SDHC/SDXC slot, up to 256 GB |
Network Interface | 1 × RJ45 10M/100M Ethernet |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 7.5 W |
Ingress Protection | IP66 |
Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
