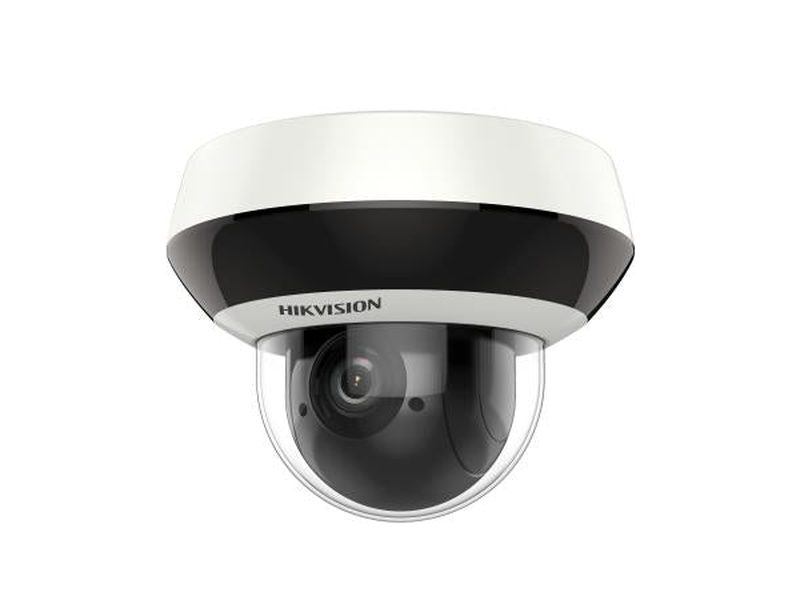

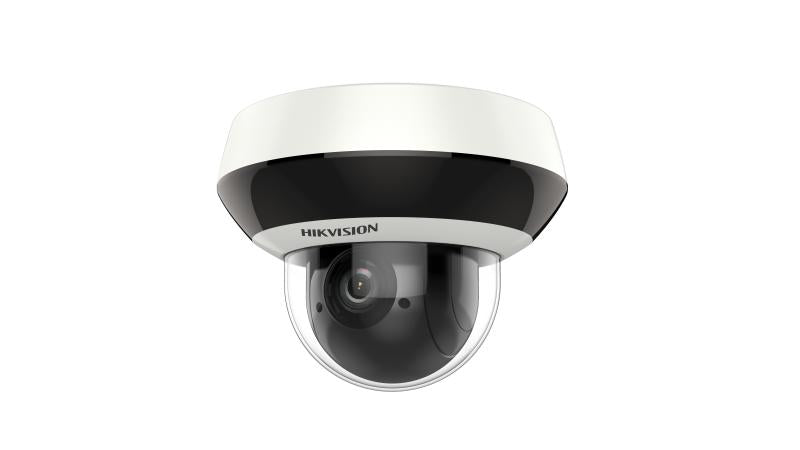

4MP 4X Outdoor IR Network PTZ Dome Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night.
4MP 4X Outdoor IR Network PTZ Dome Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back lighting due to 120 dB WDR technology
- Pan and tilt ability enables camera to monitor zones of interest
- 4x optical zoom allows for closer viewing of subjects in expansive areas
- Up to 20m IR range ensures safety at night.
Hikvision DS-2DE2A404IW-DE3 Specifications | |
---|---|
Model Number | DS-2DE2A404IW-DE3 |
Camera Type | 4MP Mini Dome PTZ Network Camera |
Image Sensor | 1/2.8″ Progressive Scan CMOS |
Max Resolution | 2560 × 1440 @ 30 fps |
Lens | 2.8–12 mm motorized lens, 4× optical zoom |
Field of View | Horizontal: 100.2°–30.8°, Vertical: 53.8°–17.3°, Diagonal: 118.6°–35.1° |
Minimum Illumination | Color: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with IR |
IR Range | Up to 20 meters |
WDR | 120 dB True WDR |
Pan & Tilt | Pan: 0°–355°, Tilt: -15°–90°, Auto Flip |
Preset Positions | Up to 300 presets |
Smart Features | Motion detection Tampering alarm Region entrance/exit detection |
Audio | Built-in microphone; audio input/output supported |
Storage | microSD slot (up to 256 GB) |
Network Interface | 1 × RJ45 10/100M Ethernet; Wi-Fi supported |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 10 W |
Ingress Protection | IP66, IK10 |
Operating Conditions | -30°C to 65°C, ≤ 95% RH (non-condensing) |
