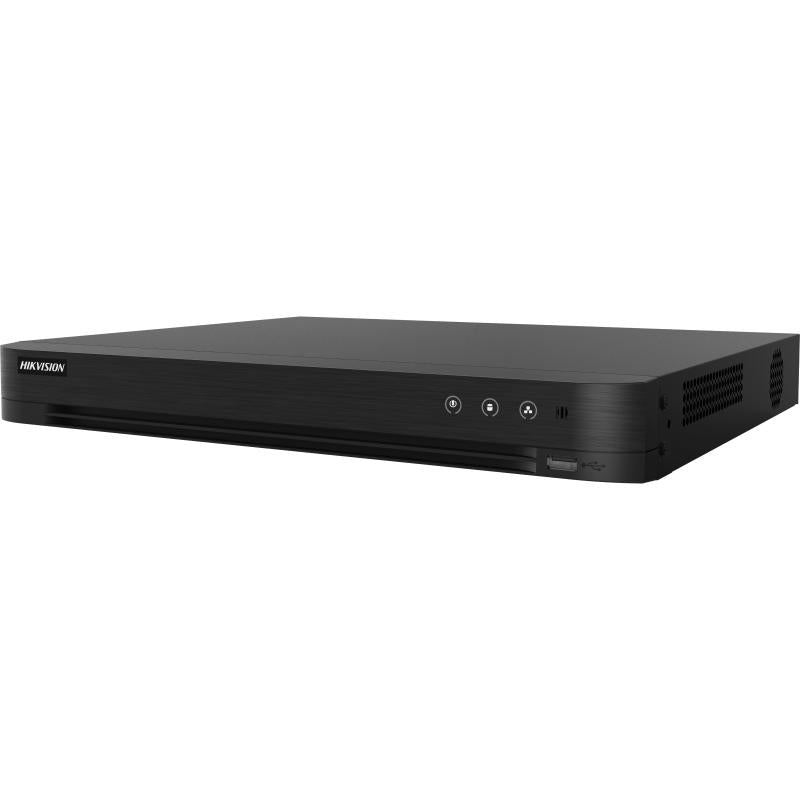

16-ch 5 MP 1U H.265 AcuSense DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 32-ch IP camera inputs (up to 8 MP)
16-ch 5 MP 1U H.265 AcuSense DVR
- Deep learning-based motion detection 2.0 for all analog channels
- Deep learning-based perimeter protection
- Efficient H.265 pro+ compression technology
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 32-ch IP camera inputs (up to 8 MP)
Hikvision IDS-7216HUHI-M2/S Specifications | |
---|---|
Video and Audio | |
Analog Video Input | 16-ch HDTVI/AHD/CVI/CVBS |
IP Video Input | 8-ch (default), up to 32-ch (enhanced mode) |
Max IP Camera Resolution | Up to 8 MP |
Encoding Capability | 8 MP @ 8 fps, 5 MP @ 12 fps |
Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
Audio Input | Via coaxial cable |
Smart Features | |
Motion Detection 2.0 | Deep learning-based human and vehicle classification Enabled by default on all analog channels |
Perimeter Protection | Line crossing and intrusion detection |
Facial Detection | Supported |
Smart Search | Quick search by object or event type |
Network | |
Ethernet Interface | 1 × RJ-45 10/100 Mbps |
Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
Max Users | 32 simultaneous users |
Wi-Fi Support | Compatible with major USB Wi-Fi dongles |
Storage | |
SATA Interfaces | 2 × SATA ports |
Max Capacity | Up to 10 TB per HDD |
Cloud Storage | Third-party cloud supported |
Auxiliary Interfaces | |
USB Ports | 2 × USB 2.0 |
RS-485 | 1 port |
Video Output | HDMI/VGA up to 2560 × 1440 |
General | |
Form Factor | 1U chassis |
Dimensions (W × D × H) | 380 × 320 × 48 mm |
Weight | ≤ 2 kg (without HDD) |
Power Supply | 12 VDC |
Power Consumption | ≤ 15 W (without HDD) |
Operating Temperature | -10 °C to 55 °C |
Humidity | 10% to 90% |
