Description
Overview

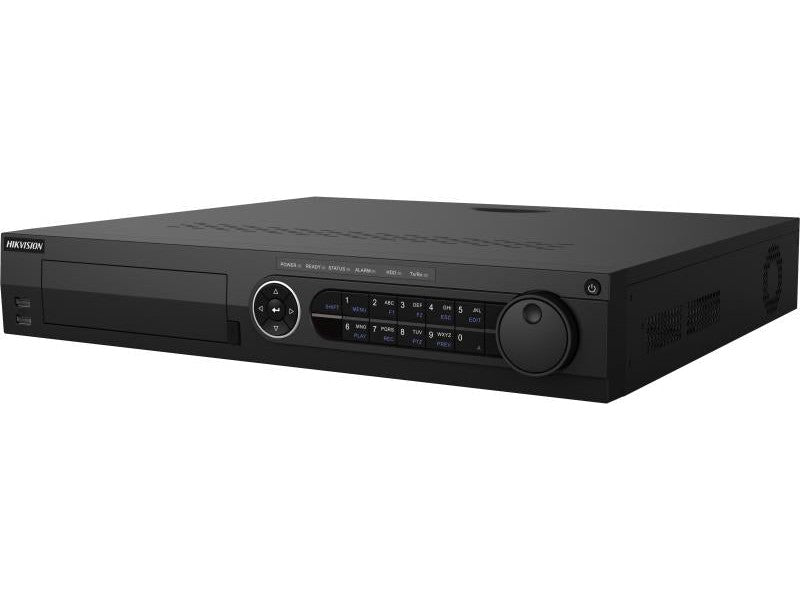

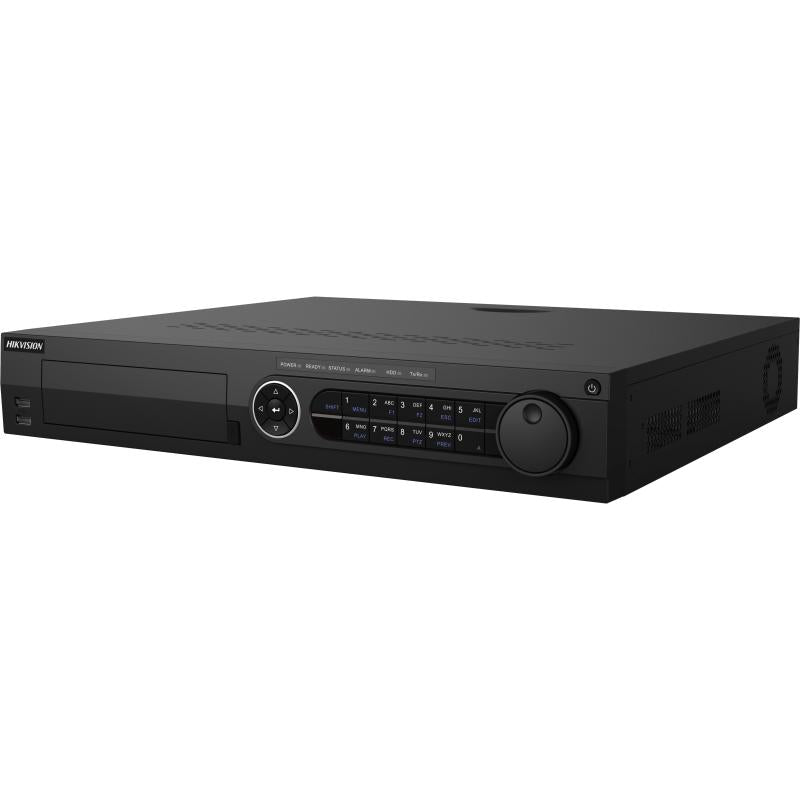

32-ch 5MP 1.5U H.265 AcuSense DVR
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- Up to 32-ch analog camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 64-ch network camera inputs
- POS triggered recording and POS information overlay
32-ch 5MP 1.5U H.265 AcuSense DVR
- Deep learning-based perimeter protection
- Deep learning-based motion detection 2.0 for all analog channels
- Up to 32-ch analog camera inputs and 4 SATA interfaces
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 video compression
- Up to 8 MP@8 fps/5 MP@12 fps encoding capability
- HDTVI/AHD/CVI/CVBS/IP video inputs
- Up to 64-ch network camera inputs
- POS triggered recording and POS information overlay
| Hikvision IDS-7332HUHI-M4/S Specifications | |
|---|---|
| Video and Audio | |
| Analog Video Input | 32-ch HDTVI/AHD/CVI/CVBS |
| IP Video Input | 32-ch (default), up to 64-ch (enhanced mode) |
| Max IP Camera Resolution | Up to 12 MP |
| Encoding Capability | 8 MP @ 8 fps, 5 MP @ 12 fps |
| Video Compression | H.265 Pro+/H.265 Pro/H.265/H.264+/H.264 |
| Audio Input | 32-ch via coaxial cable (G.711u, 64 Kbps) |
| Smart Features | |
| Motion Detection 2.0 | Deep learning-based human and vehicle classification Enabled by default on all analog channels |
| Perimeter Protection | Line crossing and intrusion detection |
| Facial Detection | Supported |
| POS Integration | POS-triggered recording and overlay |
| Network | |
| Ethernet Interface | 2 × RJ-45 10/100/1000 Mbps |
| Protocols | TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF |
| Max Users | 128 simultaneous users |
| Storage | |
| SATA Interfaces | 4 × SATA ports |
| Max Capacity | Up to 12 TB per HDD |
| RAID Support | RAID 0, 1, 5, 6, 10 + N+M hot spare |
| Auxiliary Interfaces | |
| USB Ports | Front and rear USB 2.0 / 3.0 |
| RS-485 | 1 port (PTZ control) |
| Video Output | HDMI (4K), VGA (1080p), CVBS |
| General | |
| Form Factor | 1.5U rackmount |
| Power Supply | 100–240 VAC |
| Power Consumption | ≤ 40 W (without HDD) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
