Overview

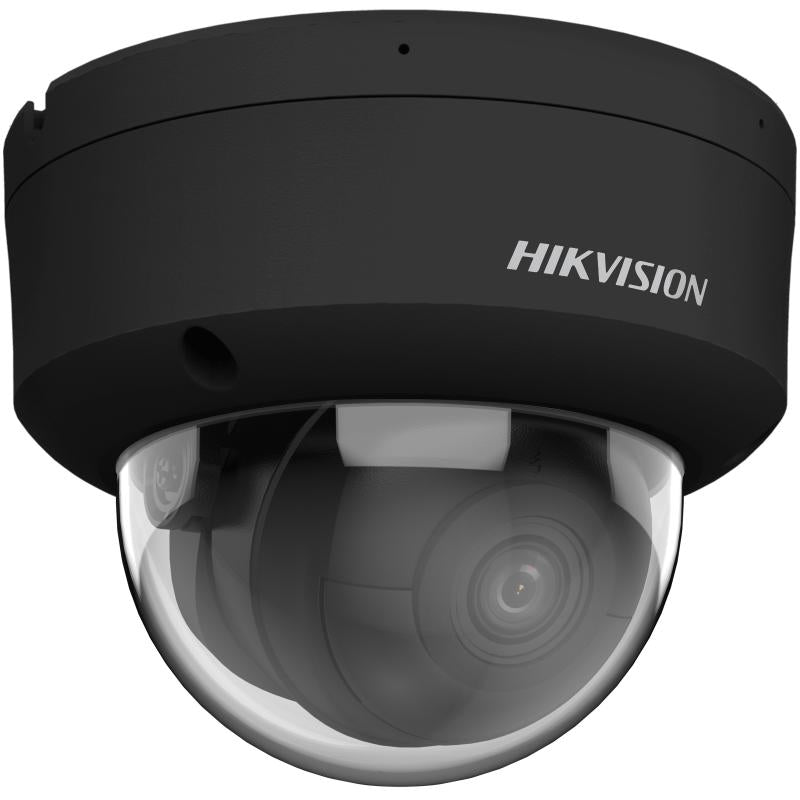

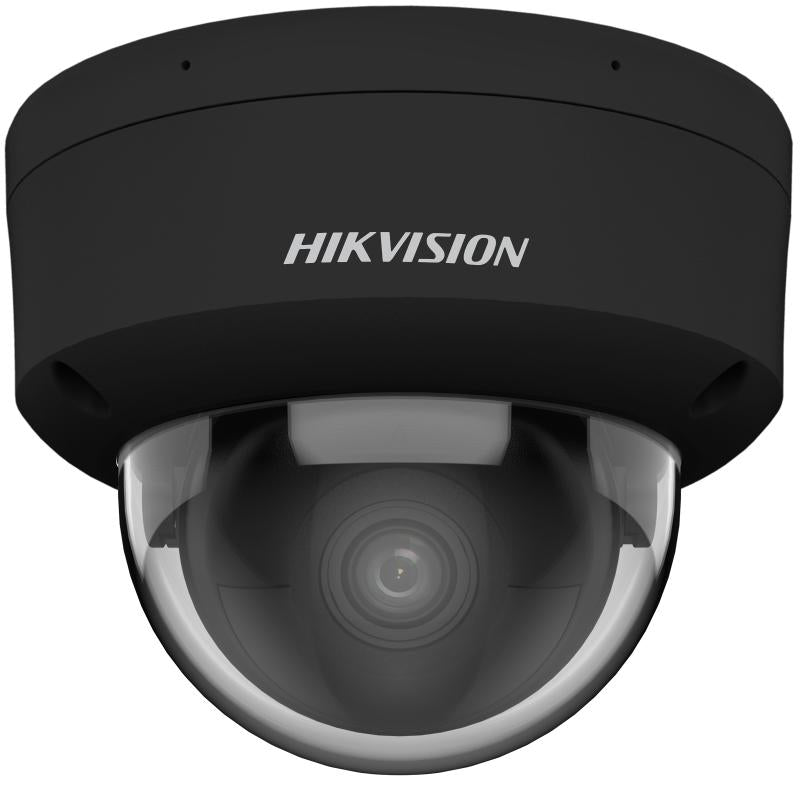

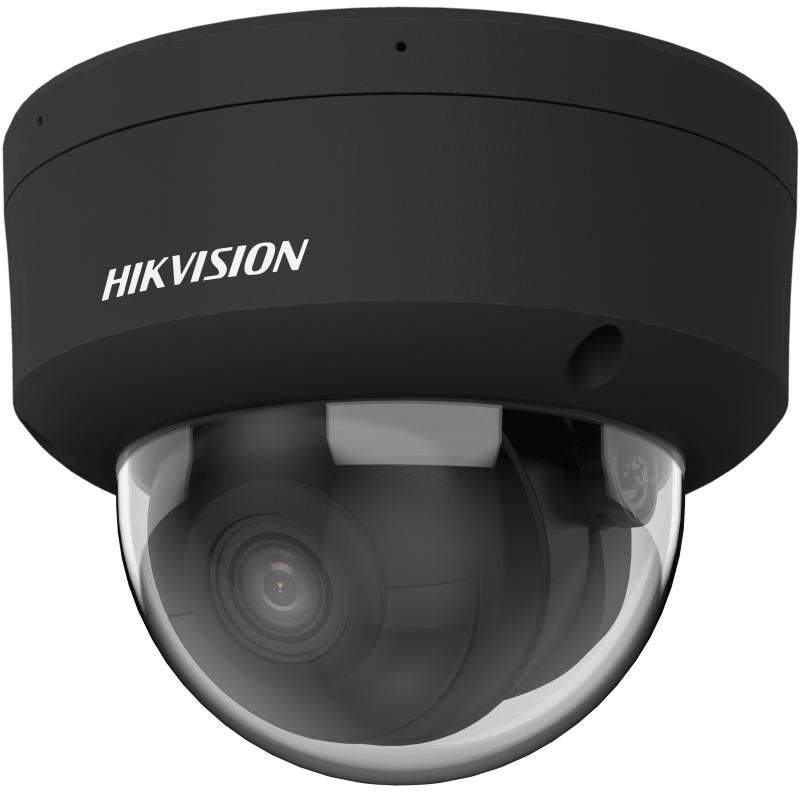

8 MP Powered by Darkfighter Fixed Dome Network Camera
- Excellent low-light performance via powered-by-DarkFighter technology
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal-resistant (IK10)
8 MP Powered by Darkfighter Fixed Dome Network Camera
- Excellent low-light performance via powered-by-DarkFighter technology
- High quality imaging with 8 MP resolution
- Clear imaging against strong back light due to 130 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- -U: Built-in microphone for real-time audio security
- Water and dust resistant (IP67) and vandal-resistant (IK10)
Hikvision DS-2CD2186G2H-ISU-BLK Specifications | |
---|---|
Model Number | DS-2CD2186G2H-ISU-BLK |
Camera Type | 8MP AcuSense Fixed Dome Network Camera |
Color | Black |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Max Resolution | 3840 × 2160 |
Lens Options | 2.8 mm or 4 mm fixed lens |
Field of View (2.8 mm) | Horizontal: 105.1°, Vertical: 54.8°, Diagonal: 128.2° |
Minimum Illumination | Color: 0.0008 Lux @ (F1.0, AGC ON); 0 Lux with IR |
IR Range | Up to 30 meters |
WDR | 130 dB True WDR |
Compression | H.265+, H.265, H.264+, H.264 |
Smart Features | Human/vehicle classification, motion detection, tampering alarm |
Audio | Built-in microphone for real-time audio |
Storage | microSD/SDHC/SDXC slot, up to 512 GB |
Network Interface | 1 × RJ45 10M/100M Ethernet |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 7.5 W |
Ingress Protection | IP67 |
Vandal Resistance | IK10 |
Angle Adjustment | Pan: 0° to 355°, Tilt: 0° to 75°, Rotate: 0° to 355° |
Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
