Description
Overview

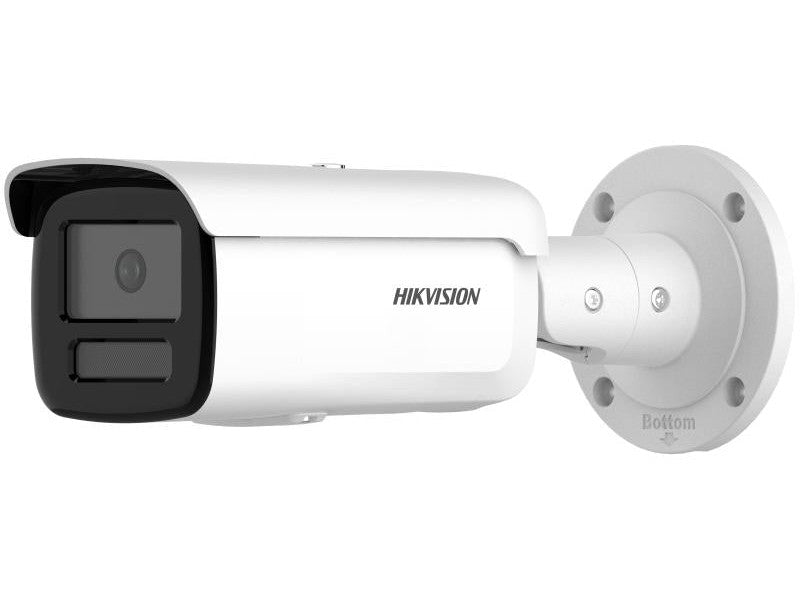

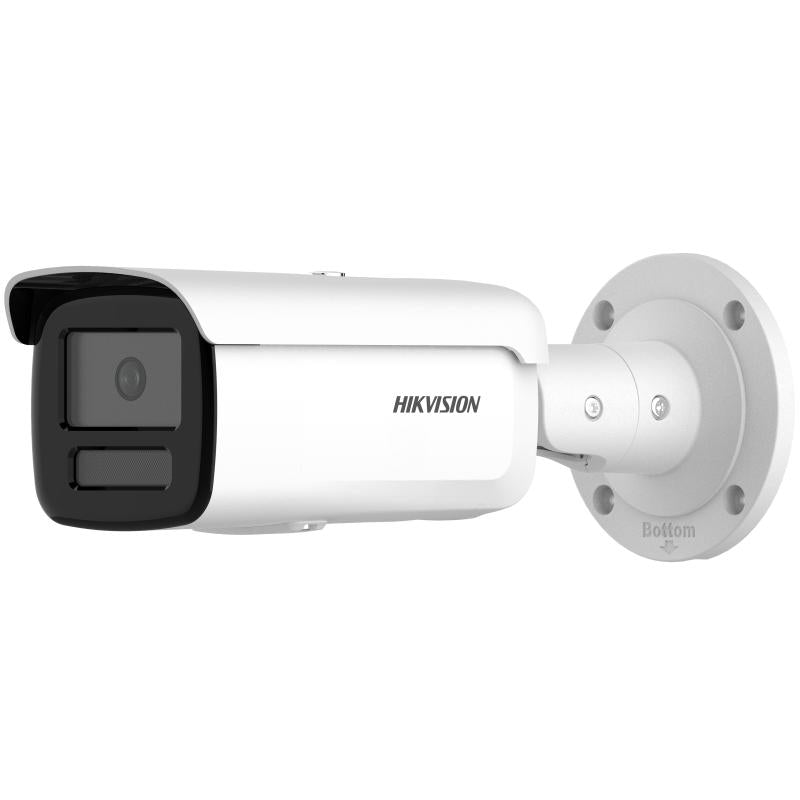

8 MP Powered by Darkfighter Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67)
8 MP Powered by Darkfighter Fixed Bullet Network Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance via powered-by-DarkFighter technology
- Clear imaging against strong back light due to 120 dB WDR technology
- Efficient H.265+ compression technology
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67)
| Hikvision DS-2CD2T86G2H-2I-4MM Specifications | |
|---|---|
| Model Number | DS-2CD2T86G2H-2I-4MM |
| Camera Type | 8MP AcuSense Fixed Bullet Network Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 @ 20 fps |
| Lens | 4 mm fixed lens, F1.6 aperture |
| Field of View | Horizontal: 87.1°, Vertical: 46.1°, Diagonal: 104.3° |
| Minimum Illumination | Color: 0.003 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| IR Range | Up to 40 meters |
| WDR | 120 dB True WDR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | IR cut filter |
| Compression | H.265+, H.265, H.264+, H.264 |
| Smart Features | Human/vehicle classification via deep learning Motion detection Tampering alarm |
| Audio | Built-in microphone |
| Storage | microSD/SDHC/SDXC slot, up to 512 GB |
| Network Interface | 1 × RJ45 10M/100M Ethernet |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 7 W |
| Ingress Protection | IP67 |
| Angle Adjustment | Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360° |
| Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
