Description
Overview

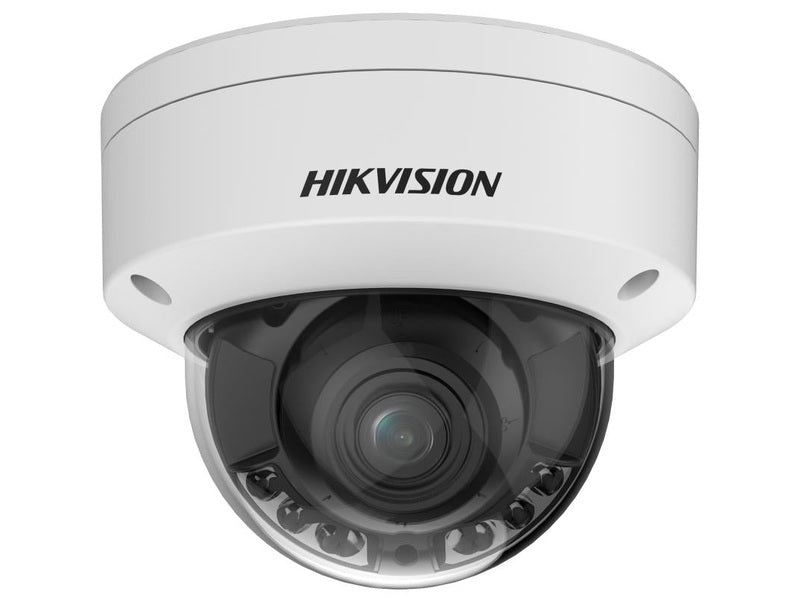

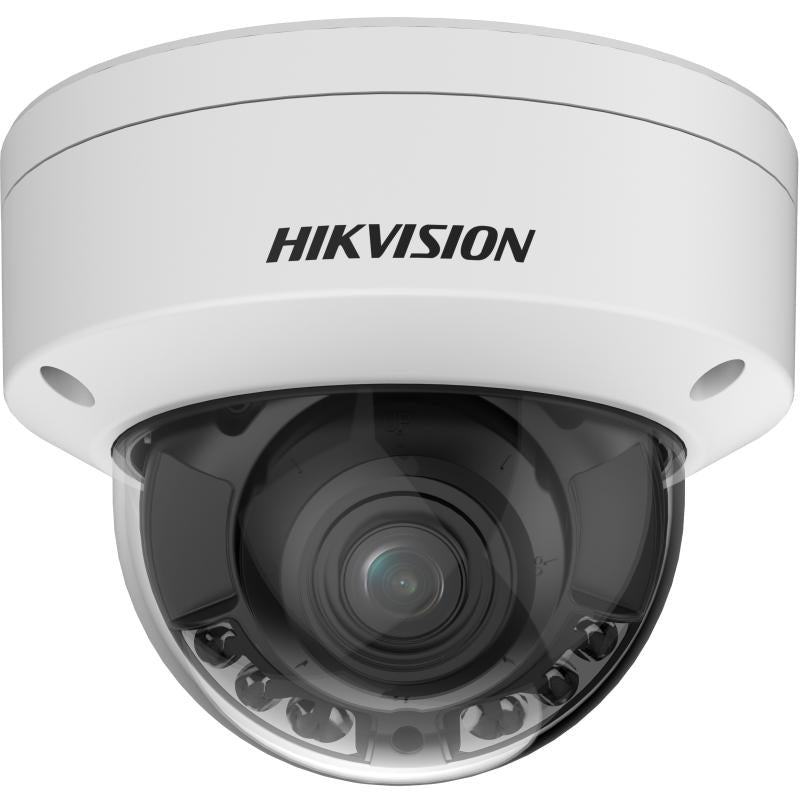

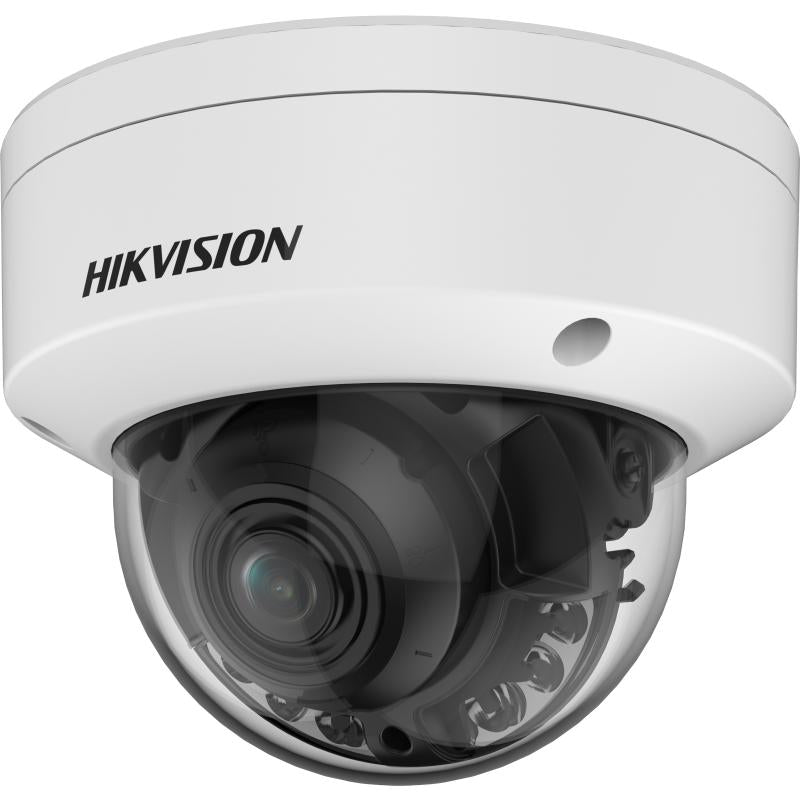

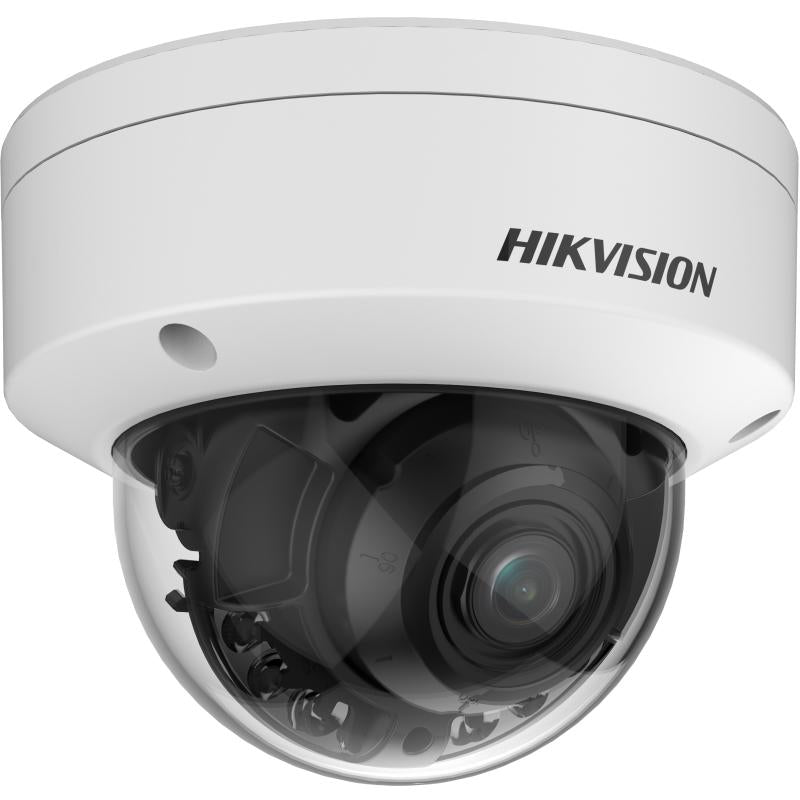

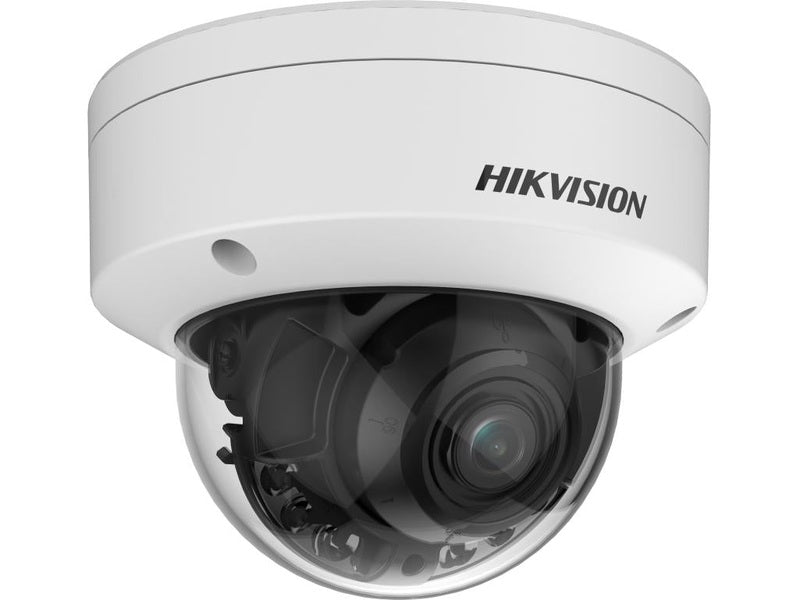

6 MP Smart hybrid light with Darkfighter S Motorized Varifocal Dome Network Camera
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Smart Hybrid Light: advanced technology with long range
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67) and vandal resistant (IK10)
6 MP Smart hybrid light with Darkfighter S Motorized Varifocal Dome Network Camera
- Supports Hikvision Embedded Open Platform (HEOP) and importing third party applications
- Supports 1.5 Tops computing power, 40 MB system memory, 350 MB smart RAM, and 2 GB eMMC storage for sharing resources
- High quality imaging with 6 MP resolution
- Efficient H.265+ compression technology
- Motorized varifocal lens for easy installation and monitoring
- Clear imaging against strong backlight due to 120 dB WDR technology
- Smart Hybrid Light: advanced technology with long range
- Focus on human and vehicle classification based on deep learning
- Water and dust resistant (IP67) and vandal resistant (IK10)
| Hikvision DS-2CD3766G2HT-LIZSUY Specifications | |
|---|---|
| Model Number | DS-2CD3766G2HT-LIZSUY |
| Camera Type | 6MP Smart Hybrid Light Motorized Varifocal Dome Network Camera |
| Image Sensor | 1/2.4″ Progressive Scan CMOS |
| Max Resolution | 3200 × 1800 |
| Lens | Motorized varifocal lens, 2.7–13.5 mm |
| Field of View | Horizontal: 108.1°–28.7°, Vertical: 56.1°–16.2°, Diagonal: 132.2°–33.0° |
| Minimum Illumination | Color: 0.0005 Lux @ (F1.0, AGC ON); 0 Lux with white light |
| Illumination | Smart Hybrid Light (IR + White Light), up to 60 m |
| WDR | 130 dB True WDR |
| Shutter Speed | 1/3 s to 1/100,000 s |
| Day & Night | ColorVu 24/7 full-color imaging |
| Smart Features | Human/vehicle classification via deep learning Motion detection Tampering alarm HEOP support for third-party applications |
| Audio | Built-in microphone and speaker; two-way audio |
| Alarm Interface | 1 input, 1 output |
| Storage | microSD slot (up to 512 GB) |
| Network Interface | 1 × RJ45 10/100M Ethernet |
| Power Supply | 12 VDC ±25%, PoE+ (802.3at) |
| Power Consumption | Max. 12 W |
| Ingress Protection | IP66, IK10 |
| Operating Conditions | -30°C to 60°C, ≤ 95% RH (non-condensing) |
