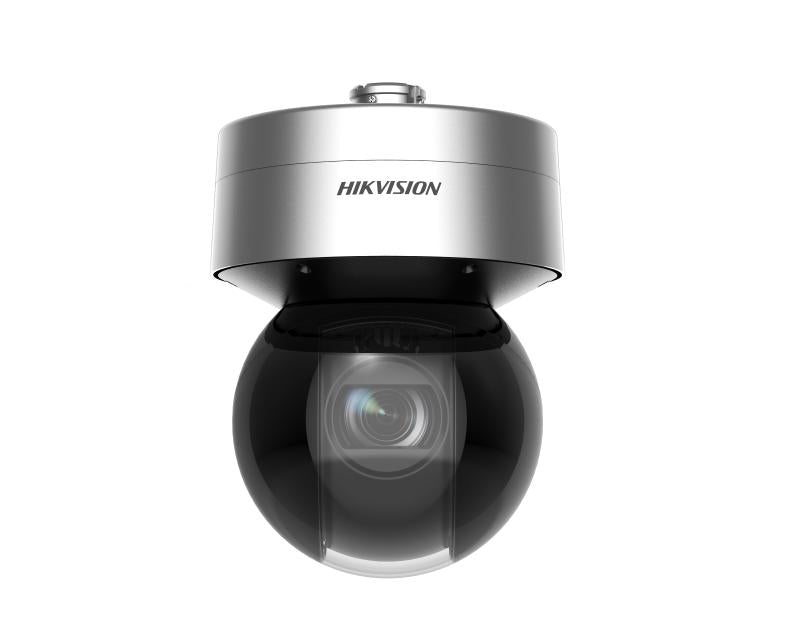

7A Series 4MP 36X DarkFighter IR Network Speed Dome
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- 36 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- Supports rapid focus
- Smart Pan-Tilt Correction
- Built-in gyroscope to ensure stable image output
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
7A Series 4MP 36X DarkFighter IR Network Speed Dome
- 1/1.8" Progressive Scan CMOS
- High quality imaging with 4 MP resolution
- 36 × optical zoom and 16 × digital zoom provide close up views over expansive areas
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 150 dB AWDR technology
- Supports rapid focus
- Smart Pan-Tilt Correction
- Built-in gyroscope to ensure stable image output
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
Hikvision DS-2DF7A436IXG-EL-Y Specifications | |
---|---|
Model Number | DS-2DF7A436IXG-EL-Y |
Camera Type | 4MP IR Network Speed Dome PTZ Camera |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Max Resolution | 2560 × 1440 @ 30 fps |
Lens | 6.5–234 mm motorized lens, 36× optical zoom |
Field of View | Horizontal: 61.2°–2.0°, Vertical: 36.1°–1.1°, Diagonal: 70.5°–2.3° |
Minimum Illumination | Color: 0.0005 Lux @ (F1.5, AGC ON); 0 Lux with IR |
IR Range | Up to 300 meters |
WDR | 150 dB Advanced WDR |
Pan & Tilt | Pan: 360°, Tilt: -20° to 90°, Auto Flip |
Preset Positions | Up to 300 presets |
Smart Features | Human/vehicle classification via deep learning Face capture Smart tracking Rapid focus Smart pan-tilt correction |
Stabilization | Built-in gyroscope for image stabilization |
Audio | Audio input/output supported |
Storage | microSD slot (up to 256 GB) |
Network Interface | 1 × RJ45 10/100M Ethernet |
Video Compression | H.265+, H.265, H.264+, H.264 |
Power Supply | 24 VAC, Hi-PoE |
Power Consumption | Max. 30 W |
Ingress Protection | IP67, IK10, NEMA 4X (optional) |
Operating Conditions | -40°C to 70°C, ≤ 95% RH (non-condensing) |
