Description
Overview

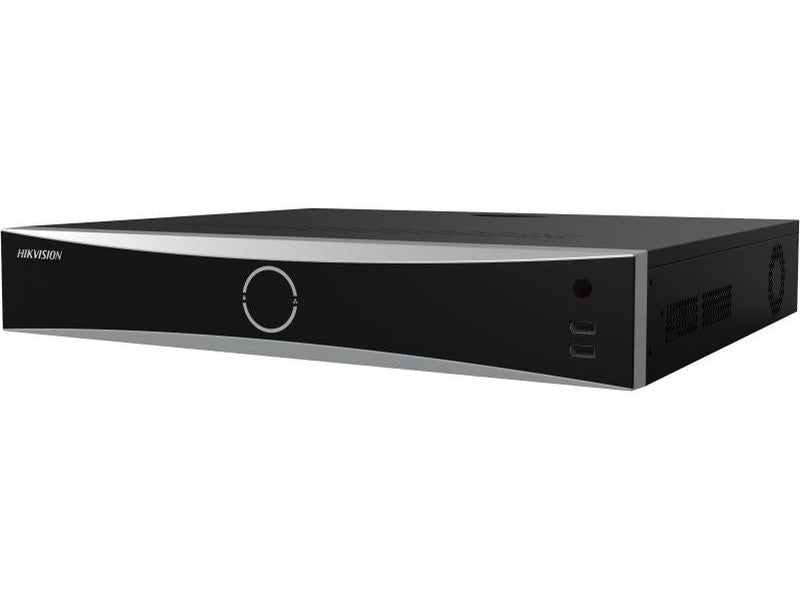

32-ch 1.5U 16 PoE 8K DeepinMind NVR
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 24-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Up to 12-ch video structuralization
- Up to 8-ch IP speakers can be connected
32-ch 1.5U 16 PoE 8K DeepinMind NVR
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 32-ch IP cameras can be connected, plug & play with 16 power-over-Ethernet (PoE) interfaces
- Intelligent analytics based on deep learning algorithm
- Up to 24-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 32-ch facial recognition for face picture
- Up to 12-ch video structuralization
- Up to 8-ch IP speakers can be connected
| Hikvision IDS-7732NXI-M4/16P/X Specifications | |
|---|---|
| Video and AI Analytics | |
| IP Camera Inputs | 32 channels |
| Max Decoding Capability | 2-ch @ 32 MP 2-ch @ 24 MP 4-ch @ 12 MP 8-ch @ 8 MP 16-ch @ 4 MP 32-ch @ 1080p |
| Video Compression | H.265+/H.265/H.264+/H.264 |
| AI Features | AcuSense (motion detection 2.0, perimeter protection) AcuSearch (text-based video search) Facial recognition: up to 16-ch video stream or 32-ch face picture Video structuralization: up to 12-ch ANPR, people counting, IP speaker integration |
| Display Output | |
| HDMI Output | Up to 8K (7680 × 4320) |
| VGA Output | 1920 × 1080 |
| CVBS Output | 1-ch, BNC |
| Storage | |
| SATA Interfaces | 4 × SATA ports |
| Max Capacity | Up to 14 TB per HDD |
| Network | |
| Remote Connections | Up to 128 |
| Network Interface | 2 × RJ-45 10/100/1000 Mbps |
| PoE Ports | 16 × RJ-45 10/100 Mbps (IEEE 802.3 af/at) |
| Auxiliary Interfaces | |
| USB Ports | Front: 1 × USB 2.0, Rear: 1 × USB 3.0 |
| Alarm I/O | 16 in / 4 out |
| Audio I/O | 1 in / 1 out (RCA) |
| General | |
| Chassis | 1.5U rackmount |
| Power Supply | 100–240 VAC |
| Power Consumption | ≤ 25 W (without HDD and PoE off) |
| Operating Temperature | -10 °C to 55 °C |
| Humidity | 10% to 90% |
| Dimensions (W × D × H) | 445 × 400 × 71 mm |
| Weight | ≤ 5 kg (without HDD) |
| Certification | |
| Compliance | CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035 |
