Hikvision Deepin Mind 9664NXI-M8-X, 64CH NVR, FACIAL REG, 400MBps, DUAL 4K, 8BAY,RAID, 5YR

Overview

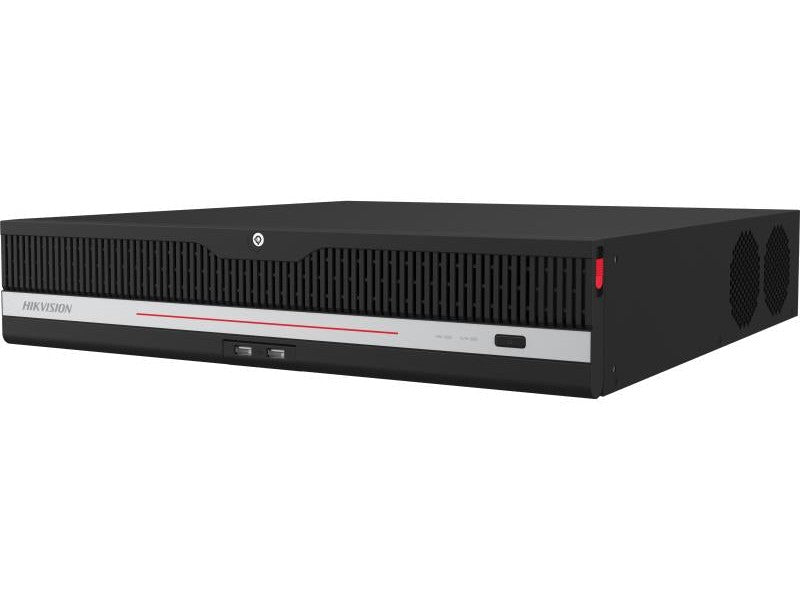

64-ch 2U 8K DeepinMind NVR
- Up to 2-ch@32 MP/2-ch@24 MP/4-ch@12 MP/8-ch@8 MP/16-ch@4 MP/32-ch@1080p decoding capacity
- H.265+/H.265/H.264+/H.264 video formats
- Up to 64-ch IP cameras can be connected
- Intelligent analytics based on deep learning algorithm
- Up to 24-ch perimeter protection
- Up to 16-ch facial recognition for video stream, or up to 48-ch facial recognition for face picture
- Up to 12-ch video structuralization
- Up to 8-ch IP speakers can be connected

Hikvision IDS-9664NXI-M8/X Specifications
Video and AI Analytics
IP Camera Inputs	64 channels
Max Decoding Capability	2-ch @ 32 MP 2-ch @ 24 MP 4-ch @ 12 MP 8-ch @ 8 MP 16-ch @ 4 MP 32-ch @ 1080p
Video Compression	H.265+/H.265/H.264+/H.264
AI Features	AcuSense (motion detection 2.0, perimeter protection) AcuSearch (text-based video search) Facial recognition: up to 16-ch video stream or 48-ch face picture Video structuralization: up to 12-ch ANPR, people counting, IP speaker integration
Display Output
HDMI Output	Up to 8K (7680 × 4320)
VGA Output	1920 × 1080
CVBS Output	1-ch, BNC
Storage
SATA Interfaces	8 × SATA ports
Max Capacity	Up to 14 TB per HDD
RAID Support	RAID 0, 1, 5, 6, 10 + N+M hot spare
Network
Remote Connections	Up to 128
Network Interface	2 × RJ-45 10/100/1000 Mbps
Auxiliary Interfaces
USB Ports	Front: 1 × USB 2.0, Rear: 1 × USB 3.0
Alarm I/O	16 in / 4 out
Audio I/O	1 in / 1 out (RCA)
General
Chassis	2U rackmount
Power Supply	100–240 VAC
Power Consumption	≤ 60 W (without HDD)
Operating Temperature	-10 °C to 55 °C
Humidity	10% to 90%
Certification
Compliance	CE, FCC, RoHS EN 55032, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035
