Overview

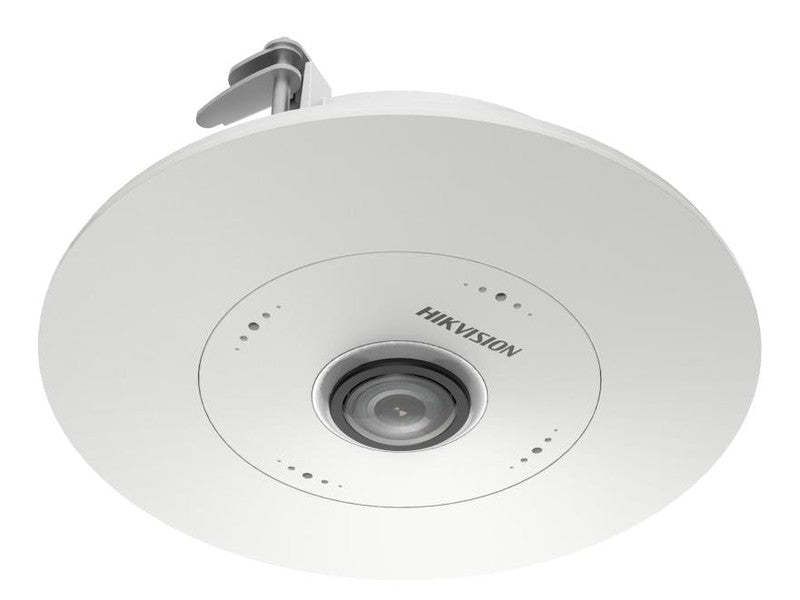

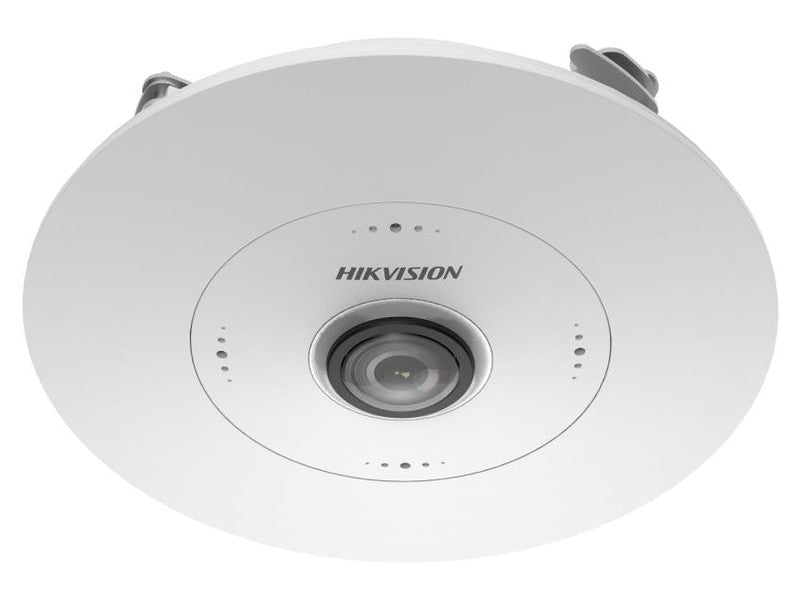

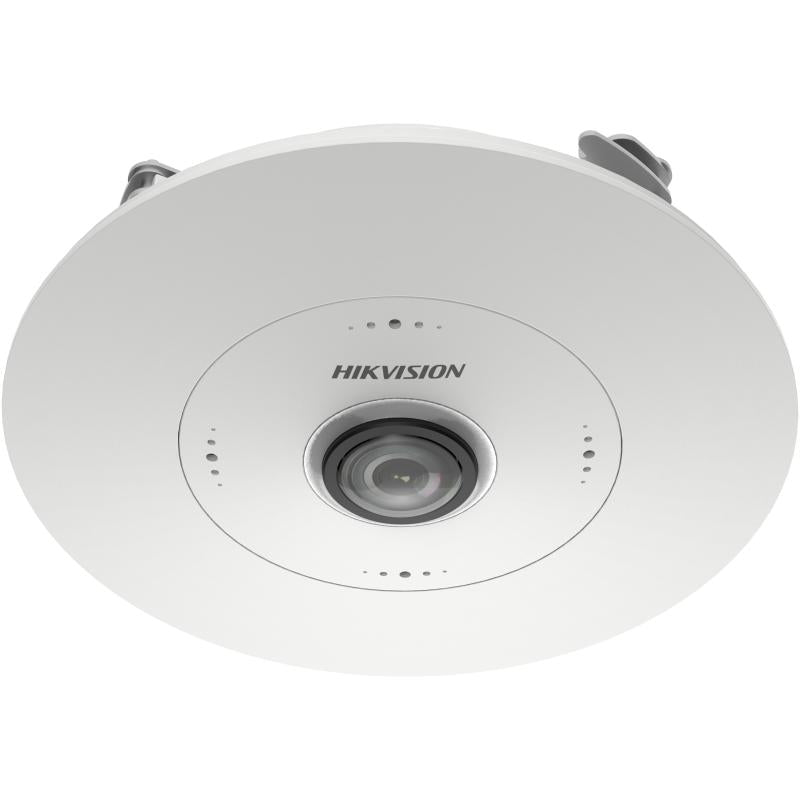

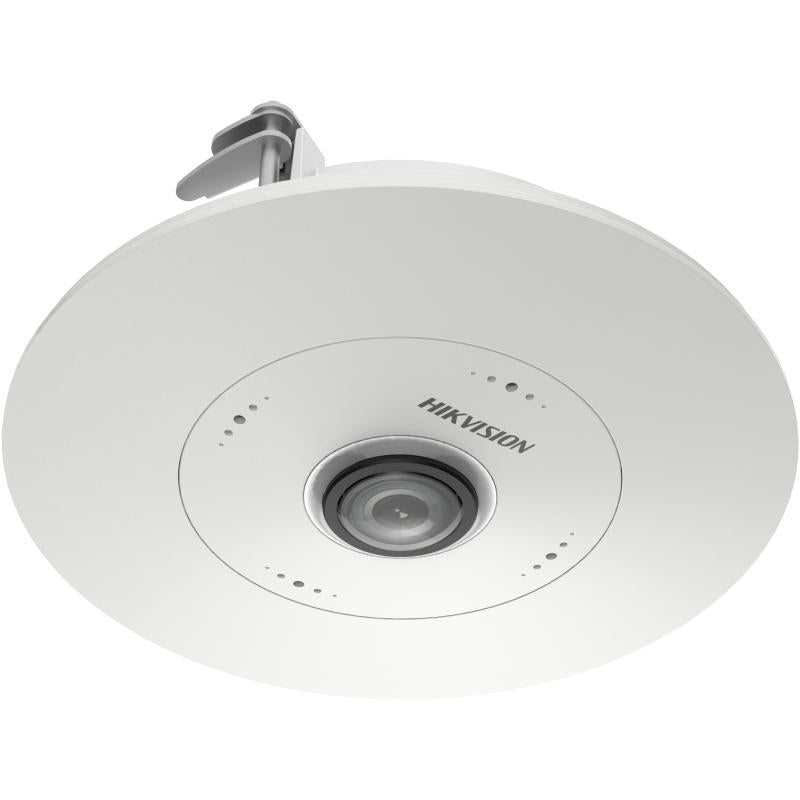

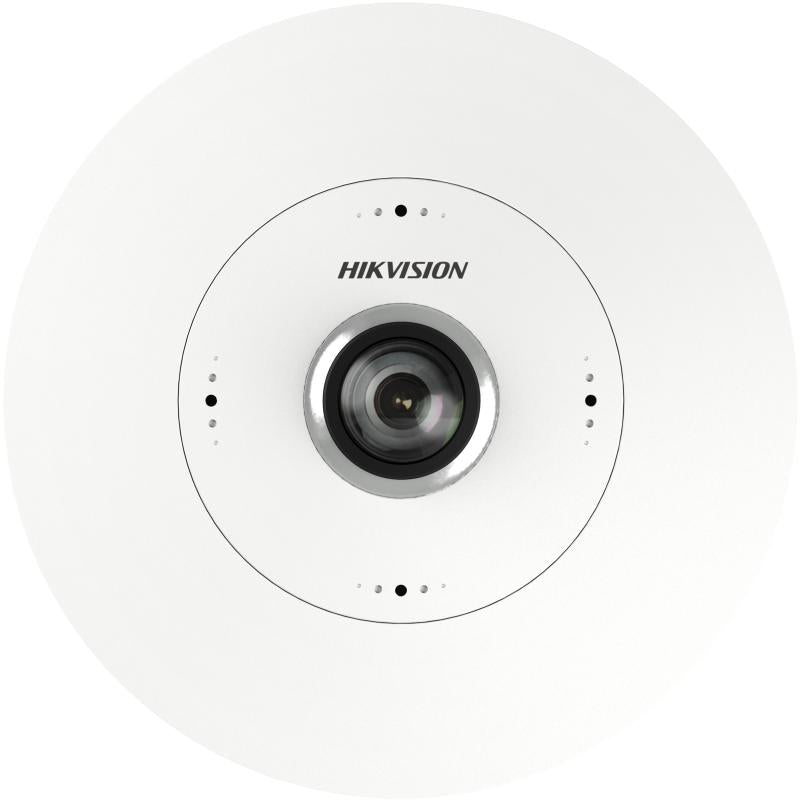

6 MP DeepinView Fisheye Network Camera
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
6 MP DeepinView Fisheye Network Camera
- Heatmap: based on deep learning algorithms, the camera counts people and presents an intuitive map
- Multi dewarping modes: the image can be dewarped to normal image for viewing intuitively
- High resolution 6 MP: capturing clear images even when dewarped into 4-image PTZ mode
- Each image is clear and detailed
Hikvision DS-2CD6365G1-S/RC Specifications | |
---|---|
Model Number | DS-2CD6365G1-S/RC |
Camera Type | 6MP DeepinView Fisheye Panoramic Network Camera |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Max Resolution | 2560 × 2560 @ 30 fps |
Lens | 1.16 mm fixed fisheye lens, F2.25 |
Field of View | Horizontal: 180°, Vertical: 180°, 360° panoramic |
Dewarping Modes | Panorama, 180°, 360°, PTZ, quad view, and more |
Minimum Illumination | Color: 0.01 Lux @ (F2.25, AGC ON); B/W: 0.005 Lux |
WDR | 120 dB True WDR |
Shutter Speed | 1 s to 1/100,000 s |
Day & Night | IR cut filter (no IR LEDs) |
Smart Features | Heatmap analytics People counting Motion detection Tampering alarm |
Audio | Built-in microphone and speaker; two-way audio |
Storage | microSD/SDHC/SDXC slot, up to 256 GB |
Network Interface | 1 × RJ45 10/100M Ethernet |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 10 W |
Mounting Options | Ceiling, wall, or table mount |
Operating Conditions | -10°C to 50°C, ≤ 95% RH (non-condensing) |
