Description
Overview

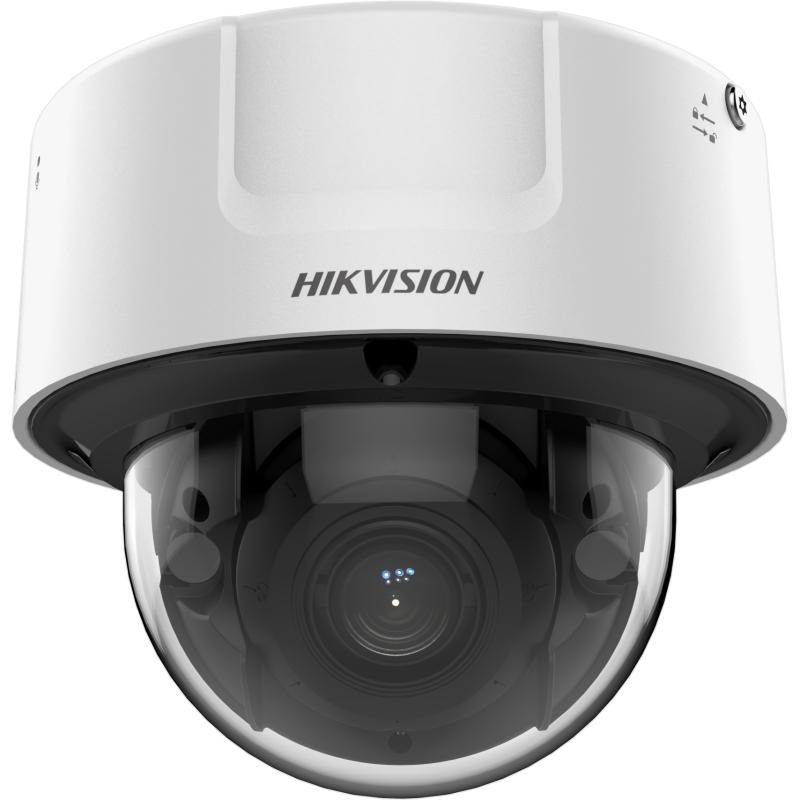

4MP DeepinView Indoor Moto Varifocal Dome Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Vandal proof (IK10)
4MP DeepinView Indoor Moto Varifocal Dome Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Vandal proof (IK10)
Hikvision IDS-2CD7146G0-IZS-32M Specifications | |
---|---|
Model Number | IDS-2CD7146G0-IZS-32M |
Camera Type | 4MP DeepinView Indoor Varifocal Dome Camera |
Image Sensor | 1/1.8″ Progressive Scan CMOS |
Max Resolution | 2688 × 1520 @ 30 fps |
Lens | 8–32 mm motorized varifocal lens |
Field of View | Horizontal: 42.1°–11.0°, Vertical: 23.7°–6.2°, Diagonal: 48.5°–12.6° |
Minimum Illumination | Color: 0.002 Lux @ (F1.2, AGC ON); 0 Lux with IR |
IR Range | Up to 30 meters |
WDR | 140 dB True WDR |
Smart Features | Face capture and comparison Human/vehicle classification Line crossing, intrusion, region entrance/exit Audio exception detection |
Deep Learning Capabilities | HEOP 2.0 platform, 2 Tops computing power, 1 GB RAM, 2 GB eMMC |
Audio | Built-in microphone; audio input/output supported |
Video Compression | H.265+, H.265, H.264+, H.264, MJPEG |
Network Interface | 1 × RJ45 10/100M Ethernet |
Storage | microSD slot (up to 256 GB) |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 12 W |
Ingress Protection | IP66, IK10 |
Operating Conditions | -30 °C to 60 °C, ≤ 95% RH (non-condensing) |
