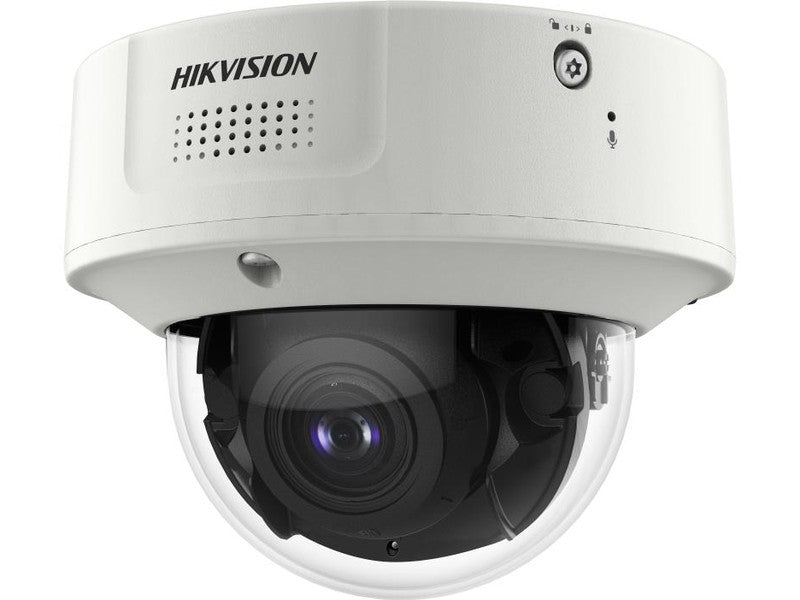

Hikvision Deepin View 2CD7146G2-IZS 4MP Dome Camera, Varifocal 8-32mm, IR 40M, 5Yr

Overview

4MP DeepinView Indoor Moto Varifocal Dome Camera
- High quality imaging with 4 MP resolution
- Excellent low-light performance via DarkFighter technology
- Clear imaging against strong back light due to 140 dB WDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Vandal proof (IK10)

Hikvision IDS-2CD7146G2-IZS-32MM Specifications
Model Number	IDS-2CD7146G2-IZS-32MM
Camera Type	4MP DeepinView Indoor Varifocal Dome Camera
Image Sensor	1/1.8″ Progressive Scan CMOS
Max Resolution	2688 × 1520 @ 30 fps
Lens	8–32 mm motorized varifocal lens
Field of View	Horizontal: 42.1°–11.0°, Vertical: 23.7°–6.2°, Diagonal: 48.5°–12.6°
Minimum Illumination	Color: 0.002 Lux @ (F1.2, AGC ON); 0 Lux with IR
IR Range	Up to 30 meters
WDR	150 dB Advanced WDR
Smart Features	Face capture and comparison Human/vehicle classification Line crossing, intrusion, region entrance/exit Audio exception detection Vibration detection (G-sensor) Power statistics (built-in power meter)
Deep Learning Platform	HEOP 2.0, 2 Tops computing power, 1 GB RAM, 2 GB eMMC
Audio	Built-in dual microphone and speaker; two-way audio
Video Compression	H.265+, H.265, H.264+, H.264, MJPEG
Network Interface	1 × RJ45 10/100M Ethernet
Storage	microSD slot (up to 256 GB); optional 1 TB SSD
Power Supply	12 VDC ±25%, PoE (802.3af)
Power Consumption	Max. 12 W
Ingress Protection	IP67, IK10, optional NEMA 4X
Operating Conditions	-30 °C to 60 °C, ≤ 95% RH (non-condensing)
