Description
Overview

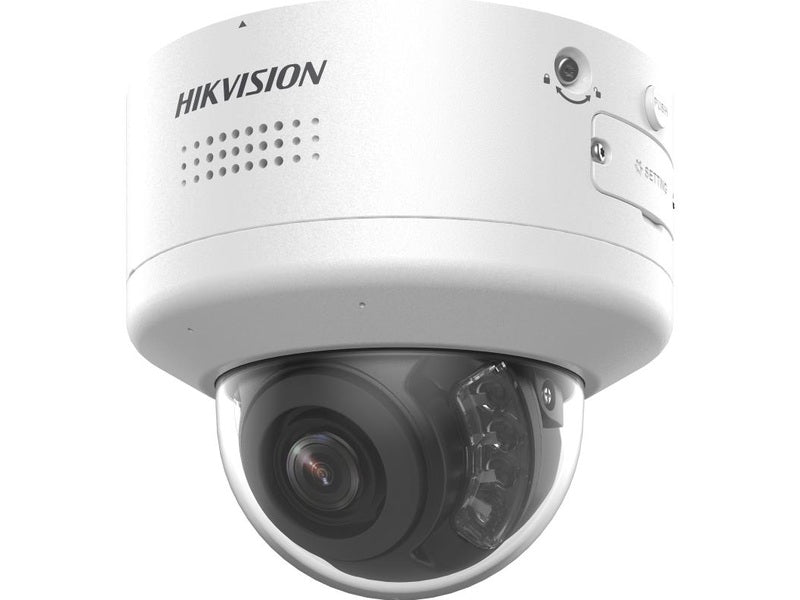

8MP DeepinView PTRZ Moto Varifocal Dome Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
- Capture vehicles and humans of different speed clearly via ShotN technology
- High frame rate, up to 8MP@60fps and 2MP@120fps
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Unique PTRZ capability for efficient installation and configuration
8MP DeepinView PTRZ Moto Varifocal Dome Camera
- High quality imaging with 8 MP resolution
- Excellent low-light performance via DarkFighter 2.0 technology
- Clear imaging against strong back light due to 140 dB AWDR technology
- Efficient H.265+ compression technology to save bandwidth and storage
- 5 streams to meet a wide variety of applications
- Water and dust resistant (IP67), vandal proof (IK10) and corrosion resistant (NEMA 4X, optional)
- Capture vehicles and humans of different speed clearly via ShotN technology
- High frame rate, up to 8MP@60fps and 2MP@120fps
- Built-in G-sensor for vibration detection
- Built-in power meter for historical power statistics
- Unique PTRZ capability for efficient installation and configuration
| Hikvision IDS-2CD7586G2-XZHS-Y Specifications | |
|---|---|
| Model Number | IDS-2CD7586G2-XZHS-Y |
| Camera Type | 8MP DeepinView PTRZ Varifocal Dome Camera |
| Image Sensor | 1/1.8″ Progressive Scan CMOS |
| Max Resolution | 3840 × 2160 @ 60 fps |
| Lens Options | 2.8–12 mm or 8–32 mm motorized varifocal lens |
| Field of View | Varies by lens; supports PTRZ adjustment |
| Minimum Illumination | Color: 0.003 Lux @ (F1.6, AGC ON); 0 Lux with IR |
| IR Range | Up to 30 meters |
| WDR | 140 dB Advanced WDR |
| Video Compression | H.265+, H.265, H.264+, H.264 |
| Smart Features | Face capture and comparison Human/vehicle classification Line crossing, intrusion, region entrance/exit Audio exception detection ShotN technology for fast-moving object capture |
| Deep Learning Platform | HEOP 2.0, built-in G-sensor, power meter for historical stats |
| Audio | Built-in microphone; audio input/output supported |
| Storage | microSD slot (up to 256 GB) |
| Network Interface | 1 × RJ45 10/100M Ethernet |
| Power Supply | 12 VDC ±25%, PoE (802.3af) |
| Power Consumption | Max. 12 W |
| Ingress Protection | IP67, IK10, optional NEMA 4X |
| Operating Conditions | -30 °C to 60 °C, ≤ 95% RH (non-condensing) |
