Description
Overview

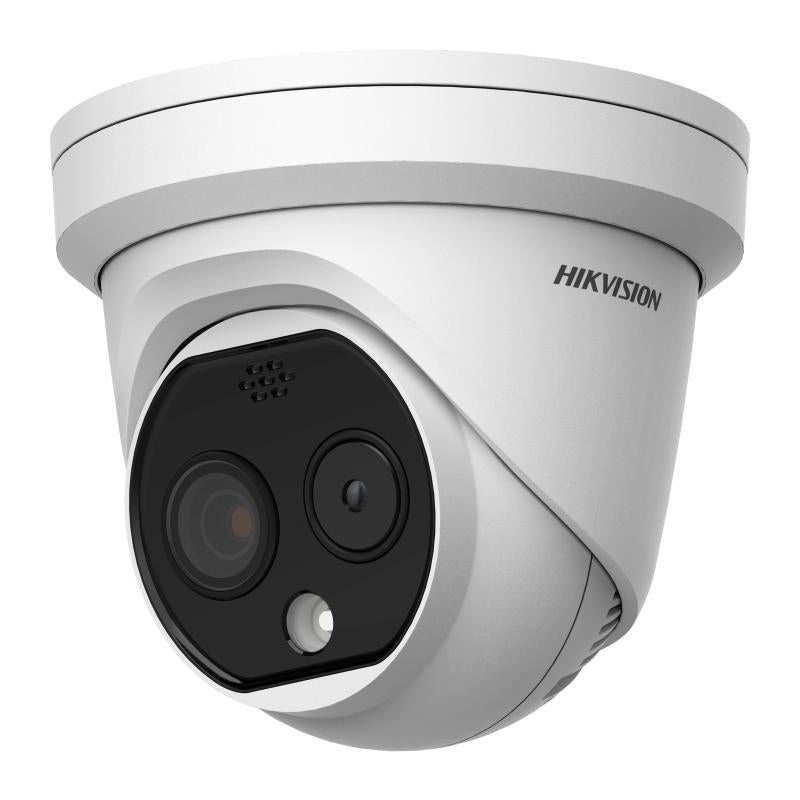

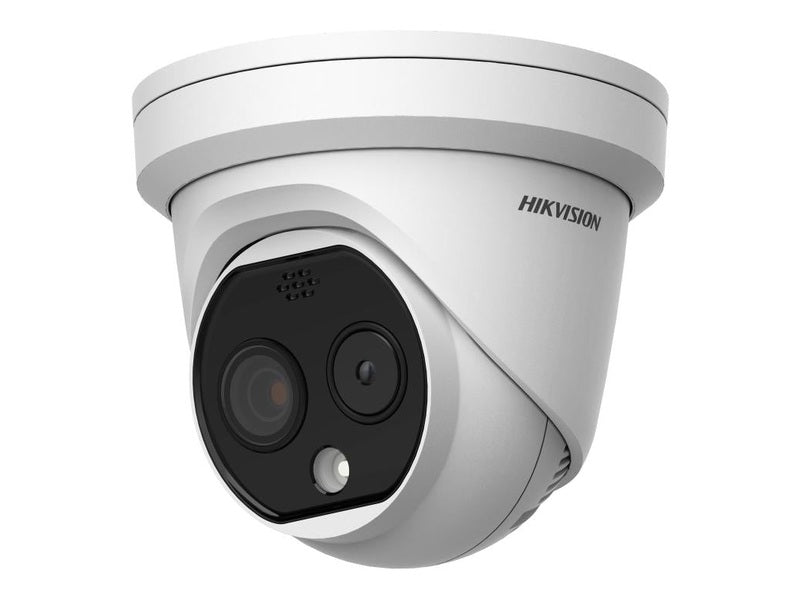

Thermal & Optical Bi-Spectrum Network Turret Camera
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- Support smoking detection algorithm
- Support sun-reflection filter
Thermal & Optical Bi-Spectrum Network Turret Camera
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 150°C (-4°F to 302°F), ± 8°C (± 14.4°F)
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- Support smoking detection algorithm
- Support sun-reflection filter
Hikvision DS-2TD1228-3/QA Specifications | |
---|---|
Model Number | DS-2TD1228-3/QA |
Camera Type | Thermal & Optical Bi-Spectrum Network Turret Camera |
Thermal Module | 256 × 192 resolution, 12 μm pixel pitch, VOx UFPA |
Spectral Range | 8 μm to 14 μm |
NETD | < 40 mK (@ 25 °C, F1.0) |
Temperature Measurement Range | -20 °C to 150 °C (±8 °C accuracy) |
Optical Module | 1/2.7″ Progressive Scan CMOS, 4 mm lens, 2688 × 1520 resolution |
Image Enhancements | Linear, histogram, self-adaptive AGC, DDE, 3D DNR |
Smart Functions | Temperature exception alarm Fire detection Smoking detection Human/vehicle classification Line crossing, intrusion, region entrance/exit |
Audio | Built-in microphone |
Illumination | White light and IR (up to 15 m) |
Storage | microSD slot (up to 256 GB) |
Network Interface | 1 × RJ45 10/100M Ethernet |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 6 W |
Ingress Protection | IP66 |
Operating Conditions | -30 °C to 60 °C, ≤ 95% RH (non-condensing) |
