Overview

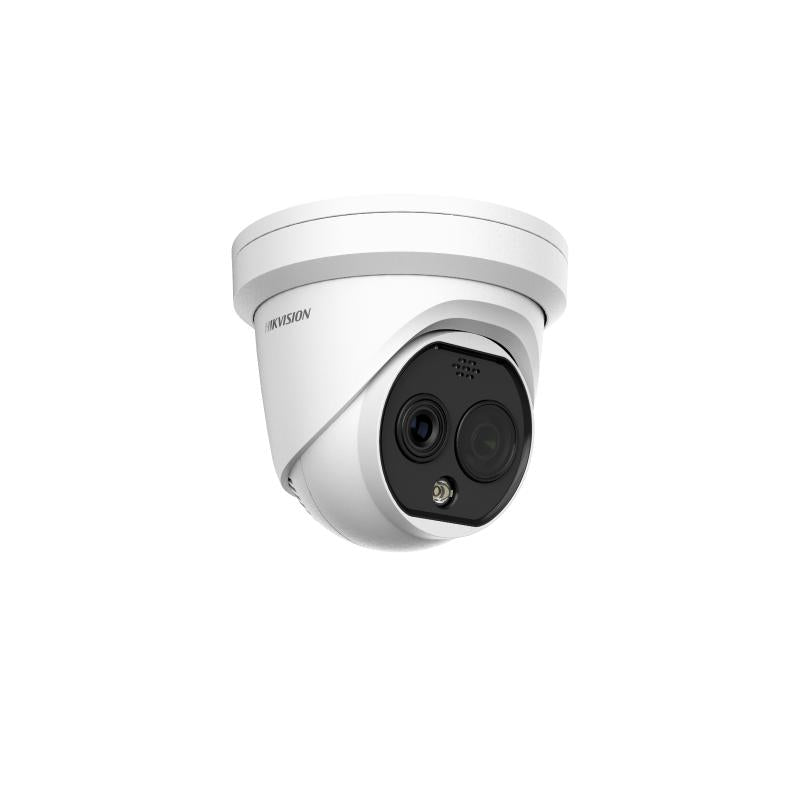

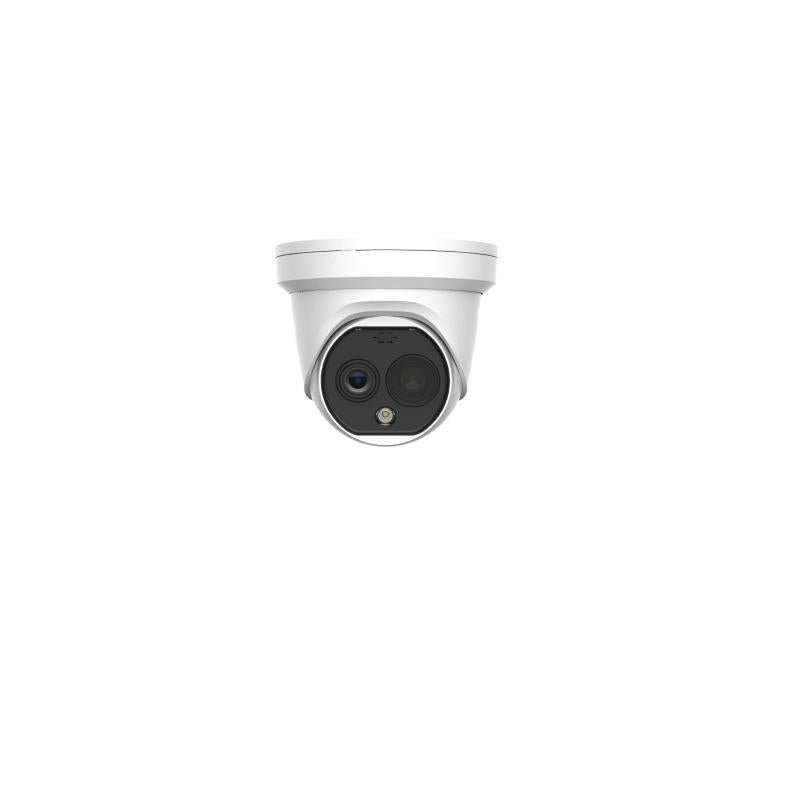

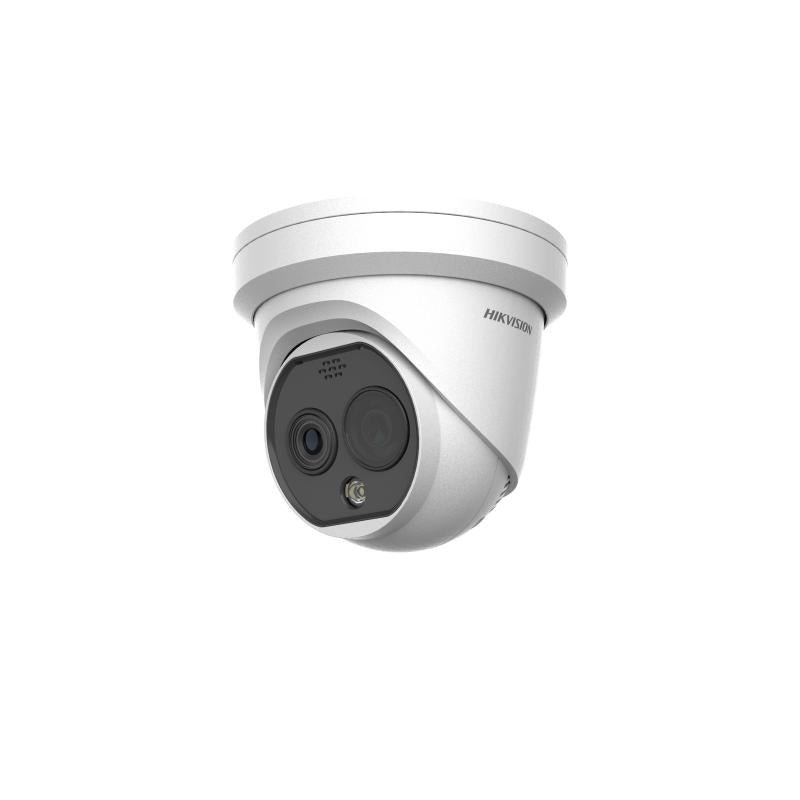

Thermal & Optical Bi-Spectrum Network Turret Camera
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
- Support smoke detection algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- Support smoke detection algorithm
- Support sun-reflection filter and forklift alarm filter algorithm
Thermal & Optical Bi-Spectrum Network Turret Camera
- 256 × 192 resolution, 12 μm, VOx UFPA, NETD < 40 mK (25°C, F1.0)
- Video content analysis: vehicle/human classification
- Temperature exception alarm for fire prevention, -20°C to 550°C (-4°F to 1,022°F), Max (± 2°C, ± 2%)
- Support smoke detection algorithm
- Image processing technology: linear, histogram, self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years guarantee
- Support smoke detection algorithm
- Support sun-reflection filter and forklift alarm filter algorithm
Hikvision DS-2TD1228T-2/QA(B) Specifications | |
---|---|
Model Number | DS-2TD1228T-2/QA(B) |
Camera Type | Thermal & Optical Bi-Spectrum Thermography Turret Camera |
Thermal Module | 256 × 192 resolution, 12 μm pixel pitch, VOx UFPA |
Thermal Lens | 2 mm focal length, F1.1 |
Spectral Range | 8 μm to 14 μm |
NETD | < 40 mK (@ 25 °C, F1.0) |
Temperature Measurement Range | -20 °C to 550 °C (±2 °C or ±2%) |
Optical Module | 2688 × 1520 resolution, 1/2.7″ CMOS, 2.2 mm lens |
Image Enhancements | Linear, histogram, self-adaptive AGC, DDE, 3D DNR |
Smart Features | Temperature exception alarm Fire and smoke detection Human/vehicle classification Line crossing, intrusion, region entrance/exit |
Illumination | White light and IR (up to 15 m) |
Audio | Built-in microphone |
Storage | microSD slot (up to 256 GB) |
Network Interface | 1 × RJ45 10/100M Ethernet |
Power Supply | 12 VDC ±25%, PoE (802.3af) |
Power Consumption | Max. 6 W |
Ingress Protection | IP66 |
Operating Conditions | -30 °C to 60 °C, ≤ 95% RH (non-condensing) |
