Description
Overview
Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
- Perimeter Protection function: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Fire detection algorithm
- 256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years warranty
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Smoke detection for fire prevention
Thermographic Thermal & Optical Bi-spectrum Network Speed Dome
- Perimeter Protection function: line crossing, intrusion, region entrance and exit
- Temperature exception alarm for fire prevention, -20 °C to 550 °C (-4 °F to 1022 °F), Max. (± 2 °C, ± 2%)
- Fire detection algorithm
- 256 × 192 (the resolution of output image is 1280 × 720) resolution 12 μm, VOx UFPA, NETD ≤ 35 mK (25 °C, F# = 1.0)
- Image processing technology: Liner, histogram, and self-adaptive thermal AGC mode, DDE, 3D DNR
- High quality detector with 10 years warranty
- Smart tracking: Panorama tracking, Event tracking and Multi-scene patrol tracking
- Smart tracking linkage: thermal view and optical view
- Smoke detection for fire prevention

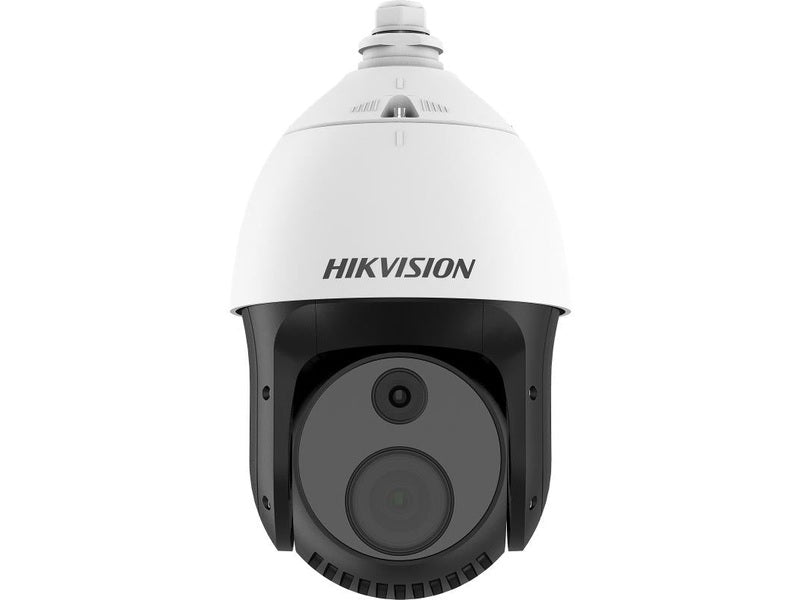

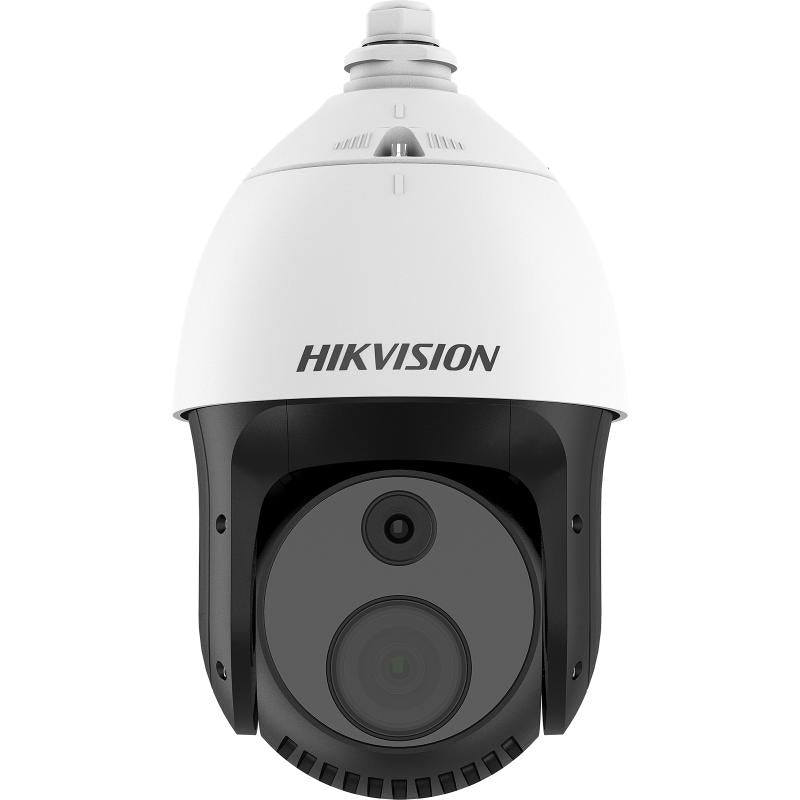

Hikvision DS-2TD4228T-10/S2 Specifications | |
---|---|
Model Number | DS-2TD4228T-10/S2 |
Camera Type | Thermal & Optical Bi-Spectrum Network Speed Dome |
Thermal Module | 256 × 192 resolution, 12 μm pixel pitch, VOx UFPA |
Thermal Lens | 10 mm focal length |
Spectral Range | 8 μm to 14 μm |
NETD | ≤ 35 mK (@ 25 °C, F1.0) |
Thermal Image Output | 1280 × 720 resolution |
Temperature Measurement Range | -20 °C to 550 °C (±2 °C or ±2%) |
Optical Module | 4 MP CMOS sensor, PTZ-enabled |
Smart Features | Temperature exception alarm Fire detection algorithm Line crossing, intrusion, region entrance/exit Smart tracking (panorama tracking) |
Image Enhancements | Linear, histogram, self-adaptive AGC, DDE, 3D DNR |
Audio | Audio input/output supported |
Storage | microSD slot (up to 256 GB) |
Network Interface | 1 × RJ45 10/100M Ethernet |
Power Supply | 24 VAC or Hi-PoE |
Power Consumption | Max. 30 W |
Ingress Protection | IP66 |
Operating Conditions | -30 °C to 60 °C, ≤ 95% RH (non-condensing) |
